RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397095 REAR BUMPER(except Wagon) A

EXTERIOR PANELS / TRIM  REAR BUMPER(except Wagon)  REASSEMBLY


PROCEDURE

Hide 52158C 1.INSTALL REAR BUMPER NO. 2 SIDE SUPPORT LH

a.

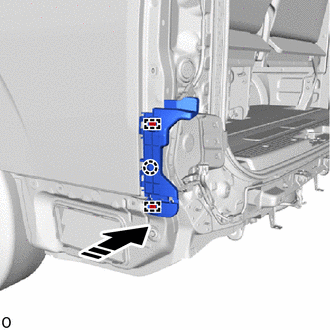

B525656
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the rear bumper No. 2 side support LH as shown in the illustration.


b.
B544358

Attach the clip.


Hide 52157A 2.INSTALL REAR BUMPER NO. 2 SIDE SUPPORT RH

HINT:

Use the same procedure for the RH and LH sides.


Hide 52156A 3.INSTALL REAR BUMPER SIDE SUPPORT LH

a.
B525653
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)

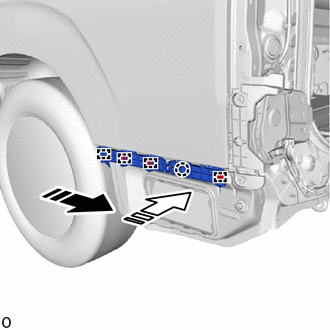

Attach the guide and claw and install the rear bumper side support LH as shown in the illustration.


b.
B544357

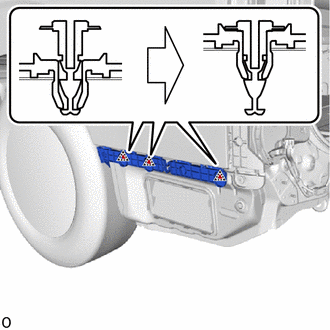

Attach the clip.


Hide 52155A 4.INSTALL REAR BUMPER SIDE SUPPORT RH

HINT:

Use the same procedure for the RH and LH sides.


Hide 61682A 5.INSTALL REAR WHEEL OPENING EXTENSION LH

a.
B525650

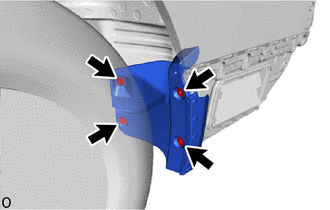

Install the rear wheel opening extension LH with the 4 grommets.


b.

w/ Rear Wheel House Liner:

i.

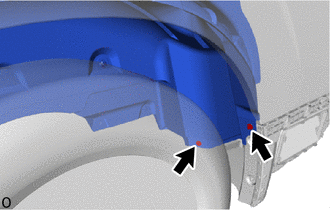

B525648

Install the 2 screws.



Hide 61681C 6.INSTALL REAR WHEEL OPENING EXTENSION RH

HINT:

Use the same procedure for the RH and LH sides.


Hide 76625D 8.INSTALL REAR QUARTER PANEL MUDGUARD RH (w/ Mudguard)

HINT:

Use the same procedure for the RH and LH sides.


Hide 52016A 9.INSTALL REAR BUMPER ARM SUB-ASSEMBLY LH (w/ Rear Bumper Arm)

a.

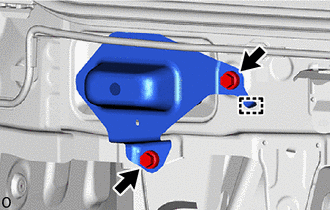

B544350

Attach the hook and temporarily install the rear bumper arm sub-assembly LH.


b.

Install the 2 bolts.

Torque:
34 N*m (347 kgf*cm, 25 ft.*lbf)


Hide 52015A 10.INSTALL REAR BUMPER ARM SUB-ASSEMBLY RH (w/ Rear Bumper Arm)

a.

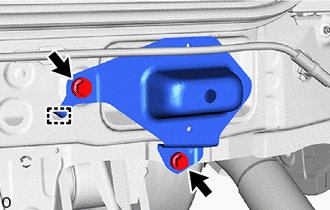

B552915
2.26,1.958 2.51,2.156 0.25,0.198 12 true *A
*A w/o Rear Bumper Lower Cover


Attach the hook and temporarily install the rear bumper arm sub-assembly RH.


b.

w/o Rear Bumper Lower Cover:

i.

Install the 2 bolts.

Torque:
34 N*m (347 kgf*cm, 25 ft.*lbf)



c.

w/ Rear Bumper Lower Cover:

i.

Install the bolt.

Torque:
34 N*m (347 kgf*cm, 25 ft.*lbf)



Hide 58385A 11.INSTALL REAR BUMPER COVER BRACKET (w/ Rear Bumper Lower Cover)

a.

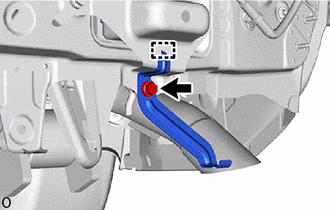

B552914

Attach the hook and temporarily install the rear bumper cover bracket.


b.

Install the bolt.

Torque:
34 N*m (347 kgf*cm, 25 ft.*lbf)


Hide 52169C 12.INSTALL REAR BUMPER LOWER COVER (w/ Rear Bumper Lower Cover)

a.

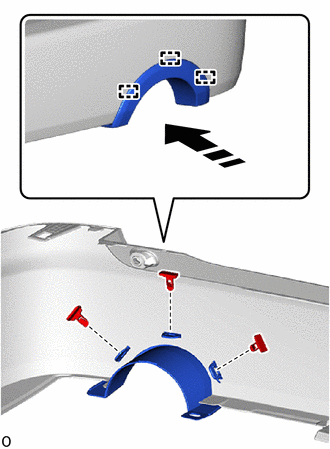

B552918
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the rear bumper lower cover.


b.

Install the 3 outside moulding retainers as shown in the illustration.


Hide 89348Y 13.INSTALL REAR ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

HINT:

When installing the rear ultrasonic sensor clip, heat the rear bumper cover using a heat light.


Standard Value:
Part Temperature
Rear Bumper Cover 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



a.

When reusing the rear bumper cover:

i.

Using a heat light, heat the rear bumper cover surface.


ii.

Remove any remaining double-sided tape from the rear bumper cover.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear ultrasonic sensor clip with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean a new rear bumper cover surface.





b.

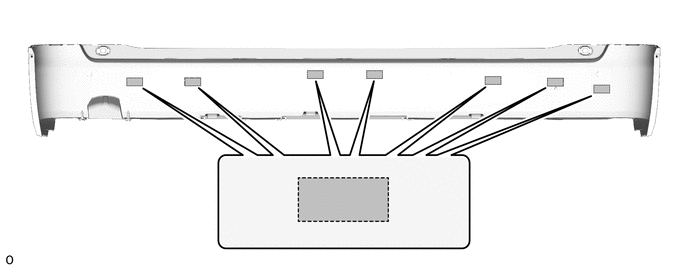

Apply primer to the rear bumper cover on the installation area of the rear ultrasonic sensor clip using a brush or felt.

B525659
4.052,2.083 4.302,2.083 true 4.365,2 4.583,2.188 0.219,0.188 10 true *a
*a Scribed Line - -
V100145

Primer - -


NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear ultrasonic sensor clip has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Remove the release paper of a new rear ultrasonic sensor clip trying not to touch the adhesional surface.


e.

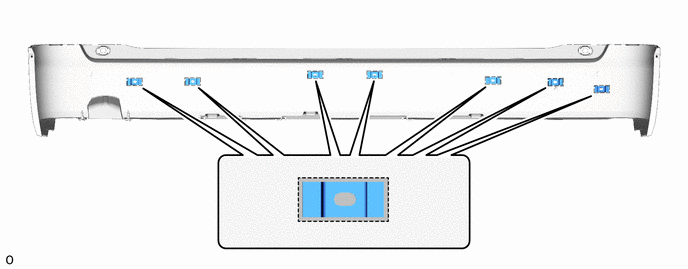

Install the 7 rear ultrasonic sensor clips in the position shown in the illustration.

HINT:

Press the rear ultrasonic sensor clip firmly to install it.


B525660
4.052,2.073 4.302,2.073 true 4.375,2 4.594,2.208 0.219,0.208 10 true *a
*a Scribed Line - -



Hide 82182 14.INSTALL NO. 2 LUGGAGE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)

a.

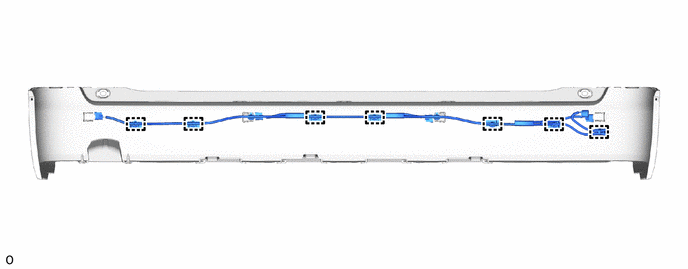

Attach the wire harness clamp and install the No. 2 luggage room wire.

B553793


Hide 52164A 15.INSTALL REAR BUMPER PLATE LH (for Double Swing Out Type, w/ Blind Spot Monitor System)

HINT:

When installing the rear bumper plate LH, heat the rear bumper cover using a heat light.


Standard Value:
Part Temperature
Rear Bumper Cover 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



a.

When reusing the rear bumper cover:

i.

Using a heat light, heat the rear bumper cover surface.


ii.

Remove any remaining double-sided tape from the rear bumper cover.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear bumper plate LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean a new rear bumper cover surface.





b.

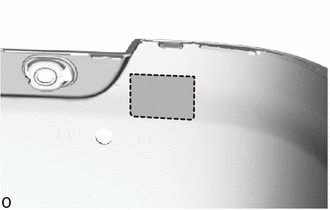

B656684
2.021,1.01 2.438,1.01 true 2.438,0.917 2.75,1.115 0.313,0.198 10 true *a
*a Scribed Line
V100145

Primer


Apply primer to the rear bumper cover on the installation area of the rear bumper plate LH using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear bumper plate LH has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Remove the release paper of a new rear bumper plate LH trying not to touch the adhesional surface.


e.
B656685
2.021,1.01 2.438,1.01 true 2.427,0.896 2.74,1.094 0.313,0.198 10 true *a
*a Scribed Line

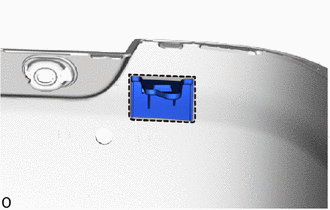

Install the rear bumper plate LH in the position shown in the illustration.

HINT:

Press the rear bumper plate LH firmly to install it.



Hide 52163A 16.INSTALL REAR BUMPER PLATE RH (for Double Swing Out Type, w/ Blind Spot Monitor System)

HINT:

Use the same procedure for the RH and LH sides.


Hide 89C48B 17.INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear)>INSTALLATION

Hide 89C48A 18.INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Rear)>INSTALLATION
