LIGHTING (EXT) HIGH MOUNTED STOP LIGHT ASSEMBLY INSTALLATION
PROCEDURE

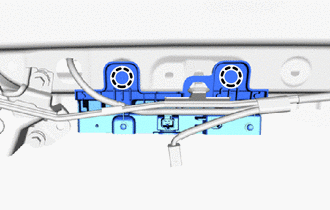

1.INSTALL GROMMET SCREW (except Double Swing Out Type)
Attach the claw and install the 2 grommet screws.
- HINT:
-
Only perform this procedure when replacing grommet screw.
81570
2.INSTALL CENTER STOP LIGHT ASSEMBLY (except Double Swing Out Type)
Attach the claw to install the center stop light assembly.

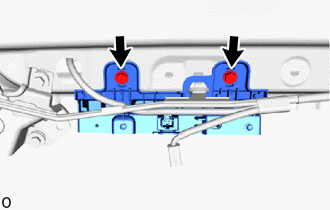

Install the 2 screws.

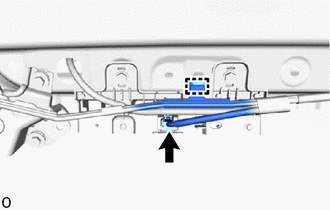

Attach the clamp.

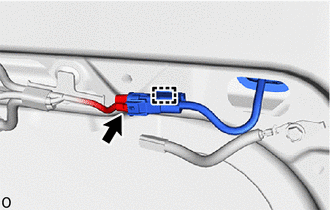

Connect the connector.
81570
3.INSTALL CENTER STOP LIGHT ASSEMBLY (for Double Swing Out Type)
Attach the clip and install the center stop light assembly.
Attach the clamp.
Connect the connector.
67760A
4.INSTALL BACK DOOR UPPER TRIM BOARD ASSEMBLY (except Wagon)
except Double Swing Out Type, for Regular:
except Double Swing Out Type, for Large:
for Double Swing Out Type:
67760A
5.INSTALL BACK DOOR UPPER TRIM BOARD ASSEMBLY (for Wagon)
67938A

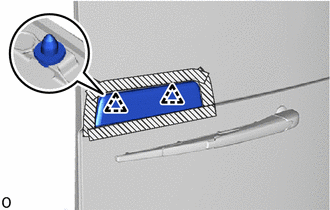

6.INSTALL BACK DOOR SIDE GARNISH LH (for Wagon)
67937B
7.INSTALL BACK DOOR SIDE GARNISH RH (for Wagon)
- HINT:
-
Use the same procedure described for the LH side.
