RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384441 HIGH MOUNTED STOP LIGHT ASSEMBLY A

LIGHTING (EXT)  HIGH MOUNTED STOP LIGHT ASSEMBLY  REMOVAL


PROCEDURE

Hide 67937B 2.REMOVE BACK DOOR SIDE GARNISH RH (for Wagon)

HINT:

Use the same procedure described for the LH side.


Hide 81570 5.REMOVE CENTER STOP LIGHT ASSEMBLY (except Double Swing Out Type)

a.

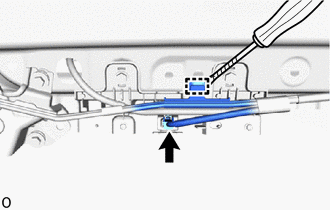

B544918C03
0,0 0,0 false
V100155

Protective Tape


Disconnect the connector.


b.

Using a thin-bladed screwdriver, detach the clamp.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.
E413244

Remove the 2 screws.


d.

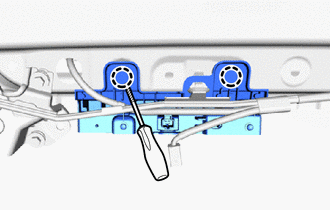

E418902C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw to remove the center stop light assembly.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 81570 6.REMOVE CENTER STOP LIGHT ASSEMBLY (for Double Swing Out Type)

a.

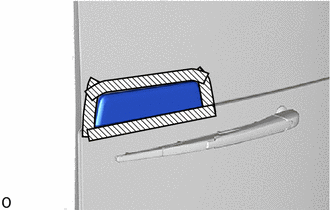

E495144C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape as shown in the illustration.


b.

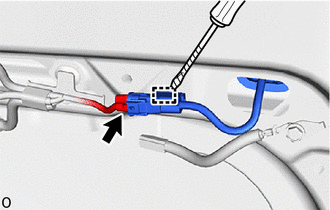

E497297C01
0,0 0,0 false
V100155

Protective Tape


Disconnect the connector.


c.

Using a thin-bladed screwdriver, detach the clamp.

HINT:

Tape the thin-bladed screwdriver tip before use.



d.

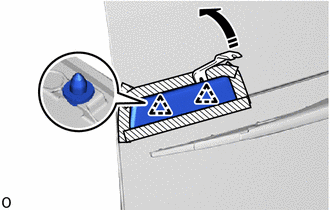

E496474C02
0,0 0,0 false
V113147

Move in this Direction


Using moulding remover B, detach the clip and remove the center stop light assembly.


Hide 7.REMOVE GROMMET SCREW (except Double Swing Out Type)

a.

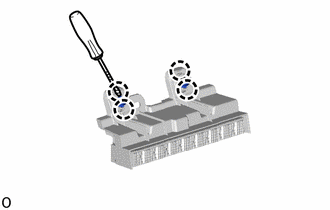

E500501C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the 2 grommet screws.

HINT:
·

Tape the thin-bladed screwdriver tip before use.

·

Only perform this procedure when replacing grommet screw.
