LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 1.INSTALL REAR COMBINATION LIGHT ASSEMBLY LH

a.
E497616

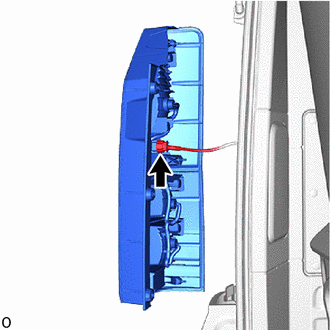

Connect the connector.


b.

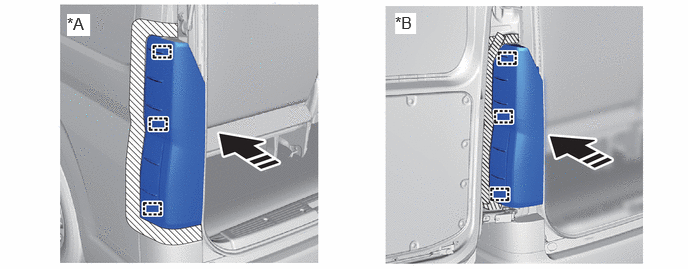

Slide the rear combination light assembly LH towards the vehicle front to attach the pin.

E500211C01
0.698,0.146 0.938,0.375 0.24,0.229 12 true *A 4.115,0.135 4.333,0.354 0.219,0.219 12 true *B
*A except Double Swing Out Type *B for Double Swing Out Type
V113147

Slide in this Direction - -



c.

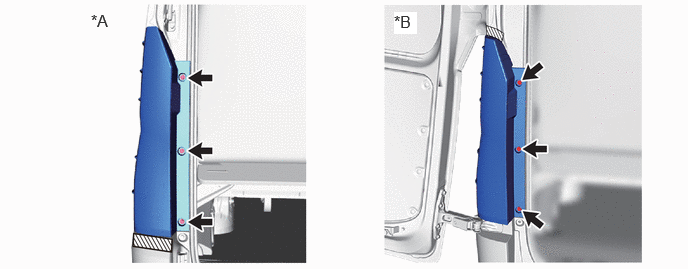

Install the 3 screws.

E500208C01
0.948,0.115 1.198,0.354 0.25,0.24 12 false *A 4.104,0.125 4.344,0.354 0.24,0.229 12 true *B
*A except Double Swing Out Type *B for Double Swing Out Type



d.

Remove the protective tape.
