RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0545664 BACK DOOR WEATHERSTRIP(for Double Swing Out Type) A

DOOR / HATCH  BACK DOOR WEATHERSTRIP(for Double Swing Out Type)  REMOVAL


PROCEDURE

Hide 67881A 1.REMOVE BACK DOOR WEATHERSTRIP

a.
B654200C01
0.083,0.083 0.458,0.323 0.375,0.24 12 false *A 0.094,2.344 0.469,2.583 0.375,0.24 12 false *B

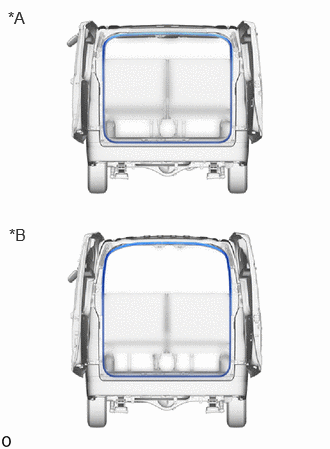

*A for Standard Roof
*B for High Roof


Remove the back door weatherstrip.

NOTICE:

When removing, make sure that non-drying sealer does not adhere to the body and back door.
