DOOR LOCK  BACK DOOR LOCK(for Double Swing Out Type)  INSTALLATION

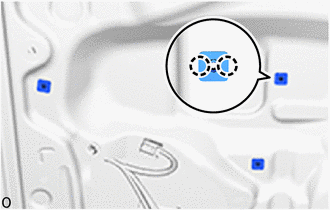

1.INSTALL SCREW GROMMET

a.

0.094,2.042 0.208,2.167 0.115,0.125 6 false .

Attach the claw and install the 3 screw grommets.

69690 2.INSTALL BACK DOOR REMOTE CONTROL ASSEMBLY

a.

Apply MP grease to the sliding parts of the back door remote control assembly.

b.

2.313,1.479 2.188,1.292 true 1,0.083 1.198,0.271 0.198,0.188 10 true *a 2.417,0.417 2.615,0.604 0.198,0.188 10 true *a 1.01,1.063 1.208,1.25 0.198,0.188 10 true *b 2.344,1.427 2.542,1.615 0.198,0.188 10 true *c 2.292,1.188 2.49,1.375 0.198,0.188 12 true *A

*A	for High Roof
*a	Guide
*b	Wire Harness Clamp
*c	Clamp
	Screw
	Connector

Attach the guide and install the back door remote control assembly with the 3 screws.

c.

for High Roof:

i.

Attach the clamp and connect the back door lock control cable assembly.

d.

Attach the wire harness clamp.

e.

Connect the connector.

f.

2.719,1.042 2.875,1.281 0.156,0.24 6 false .

	Install in this Direction (1)
	Install in this Direction (2)

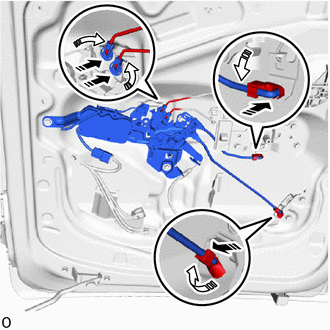

Attach the 4 snaps and connect the back door upper rod, back door inside handle assembly and back door lock remote control assembly RH as shown in the illustration.

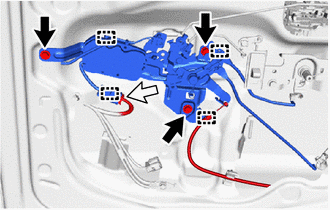

69350 3.INSTALL BACK DOOR LOCK ASSEMBLY

a.

Apply MP grease to the sliding parts of the back door lock assembly.

b.

2.583,2.75 2.781,2.948 0.198,0.198 10 true *a 2.135,2.302 2.333,2.5 0.198,0.198 10 true *b 2.927,2.115 3.125,2.313 0.198,0.198 10 true *c

*a	Wire Harness Clamp
*b	Cable Clamp
*c	Clamp
	Bolt
	Connector

Install the back door lock assembly with the 3 bolts.

Torque:

12.5 N*m (127 kgf*cm, 9 ft.*lbf)

c.

Attach the clamp and connect the back door lock assembly.

d.

Attach the wire harness clamp and cable clamp.

e.

Connect the connector.

67847A 4.INSTALL BACK DOOR SERVICE HOLE COVER

67751 5.INSTALL BACK DOOR TRIM BOARD

69783B 6.INSTALL BACK DOOR INSIDE HANDLE BEZEL (w/ Handle)

69291 7.INSTALL BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

69298 8.INSTALL BACK DOOR INSIDE HANDLE COVER (w/ Handle, Cover)
