DOOR LOCK  BACK DOOR LOCK(for Double Swing Out Type)  REMOVAL

69298 1.REMOVE BACK DOOR INSIDE HANDLE COVER (w/ Handle, Cover)

69291 2.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

69783B 3.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle)

67751 4.REMOVE BACK DOOR TRIM BOARD

67847A 5.REMOVE BACK DOOR SERVICE HOLE COVER

69350 6.REMOVE BACK DOOR LOCK ASSEMBLY

2.583,2.75 2.781,2.948 0.198,0.198 10 true *a 2.135,2.302 2.333,2.5 0.198,0.198 10 true *b 2.927,2.115 3.125,2.313 0.198,0.198 10 true *c

*a	Wire Harness Clamp
*b	Cable Clamp
*c	Clamp
	Bolt
	Connector

a.

Disconnect the connector.

b.

Detach the wire harness clamp and cable clamp.

c.

Detach the clamp and disconnect the back door lock assembly.

d.

Remove the 3 bolts and back door lock assembly.

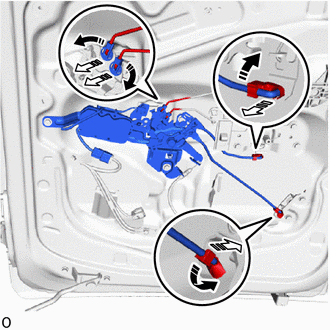

69690 7.REMOVE BACK DOOR REMOTE CONTROL ASSEMBLY

a.

1.365,0.698 1.531,0.927 0.167,0.229 6 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the 4 snaps and disconnect the back door upper rod, back door inside handle assembly and back door lock remote control assembly RH as shown in the illustration.

b.

2.313,1.479 2.188,1.292 true 1,0.083 1.198,0.271 0.198,0.188 10 true *a 2.417,0.417 2.615,0.604 0.198,0.188 10 true *a 1.01,1.063 1.208,1.25 0.198,0.188 10 true *b 2.344,1.427 2.542,1.615 0.198,0.188 10 true *c 2.292,1.188 2.49,1.375 0.198,0.188 12 true *A

*A	for High Roof
*a	Guide
*b	Wire Harness Clamp
*c	Clamp
	Screw
	Connector

Disconnect the connector.

c.

Detach the wire harness clamp.

d.

for High Roof:

i.

Detach the clamp and disconnect the back door lock control cable assembly.

e.

Remove the 3 screws.

f.

Detach the guide and remove the back door remote control assembly.

8.REMOVE SCREW GROMMET

a.

0.094,2.042 0.208,2.167 0.115,0.125 6 false .

Detach the claw and remove the 3 screw grommets.
