SEAT  LUMBAR SWITCH  INSPECTION

0.552,0.958 1.281,0.958 true 1.896,0.969 2.802,0.969 true 1.969,2.698 2.573,2.542 true 1.74,2.844 1.823,3.115 true 1.5,2.844 1.438,3.115 true 0.646,2.927 1.25,2.771 true 0.385,0.865 0.688,1.135 0.302,0.271 10 false *a 2.833,0.865 3.146,1.083 0.313,0.219 10 false *b 0.76,2.073 1.063,2.313 0.302,0.24 10 false *c 2.635,2.427 2.948,2.646 0.313,0.219 10 false B 1.813,3.146 2.125,3.365 0.313,0.219 10 false R 1.385,3.156 1.698,3.375 0.313,0.219 10 false E 0.469,2.875 0.781,3.094 0.313,0.219 10 false H

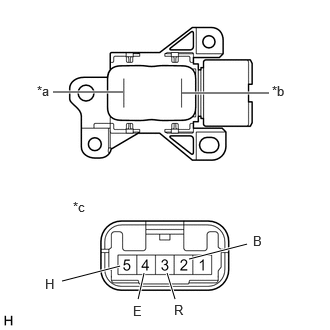

*a	Release
*b	Hold
*c	Component without harness connected (Front Power Seat Switch Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (B) - 5 (H)	Hold switch pressed	Below 1 Ω
4 (E) - 3 (R)
4 (E) - 5 (H)	Off
4 (E) - 3 (R)
4 (E) - 5 (H)	Release switch pressed
2 (B) - 3 (R)

If the result is not as specified, replace the front power seat switch assembly RH.
