RM35X0E _58 Vehicle Interior _078601 SEAT _0381328 FRONT SEAT ASSEMBLY(for Separate Seat Type) A

SEAT  FRONT SEAT ASSEMBLY(for Separate Seat Type)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

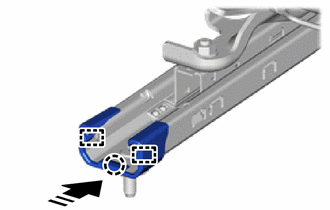

Hide 72137V 1.INSTALL FRONT SEAT TRACK COVER LH

HINT:

Use the same procedure for the other side.


a.
B705455C01
0,0 0,0 false
V113147

Install in this Direction


Slide in the installation direction shown in the illustration and attach the claw and guide to install the front seat track cover LH.

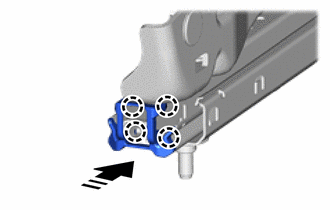

Hide 72265N 2.INSTALL UPPER SEAT TRACK RAIL COVER LH

HINT:

Use the same procedure for the other side.


a.
B705454C01
0,0 0,0 false
V113147

Install in this Direction


Slide in the installation direction shown in the illustration and attach the claw to install the upper seat track rail cover LH.

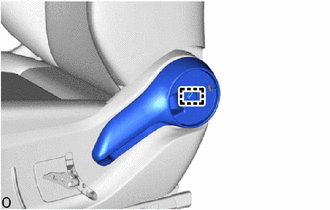

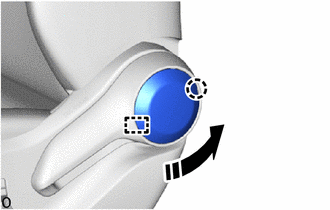

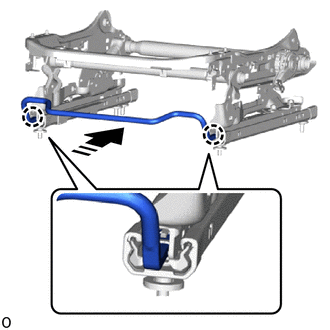

Hide 72211G 3.INSTALL SEAT TRACK ADJUSTING HANDLE LH

a.
B548294C01
0,0 0,0 false
V113147

Install in this Direction


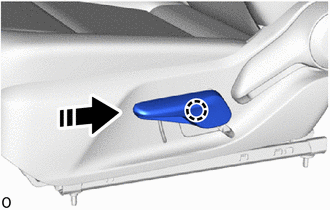

Attach the claw and install the seat track adjusting handle LH as shown in the illustration.

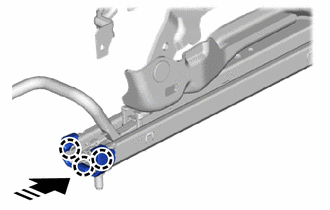

Hide 72123H 4.INSTALL INNER SEAT TRACK LOCK PLATE LH

HINT:

Use the same procedure for the other side.


a.

Operate the seat track adjusting handle LH and move the front seat cushion spring assembly LH to the rearmost position.


b.
B705452C01
0,0 0,0 false
V113147

Install in this Direction


Slide in the installation direction shown in the illustration and attach the claw to install the inner seat track lock plate LH.


Hide 82192 5.INSTALL FRONT SEAT WIRE LH (for Driver Side, w/ Sub Wire Harness)

a.
B532614

Attach the clamp and install the front seat wire LH.


Hide 82191 6.INSTALL FRONT SEAT WIRE RH (for Front Passenger Side, w/ Front Seat Side Airbag)

a.
B551305

Attach the clamp and install the front seat wire RH.


Hide 82191A 7.INSTALL FRONT SEAT NO. 1 WIRE RH (w/ Lumbar Support)

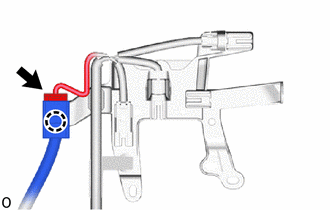

a.
B650817

Connect the connector and attach the claw to install the front seat No. 1 wire RH.


Hide 8219A 8.INSTALL FRONT SEAT NO. 2 WIRE RH (for Driver Side, w/ Seat Position Airbag Sensor)

a.
B532613

Attach the claw and clamp and install the front seat No. 2 wire RH.


b.

Connect the connector.


Hide 7181BA 9.INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER LH

a.

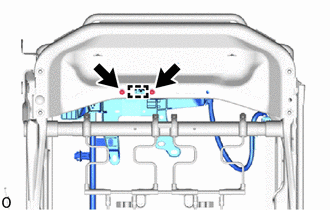

B532612

Attach the guide.


b.

Install the front seat cushion wire harness holder LH with the 2 screws.


c.

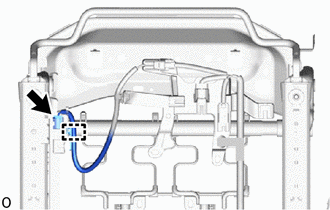

B532611

w/ Seat Position Airbag Sensor:

i.

Connect the connector.


ii.

Attach the clamp.

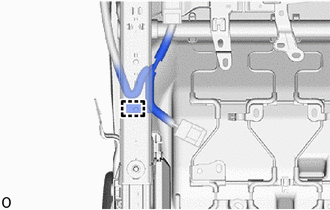

d.

w/ Lumbar Support:

i.
B650816

Attach the clamp.

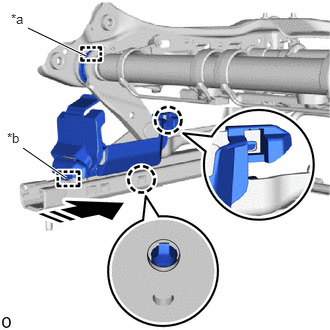

Hide 71874V 10.INSTALL FRONT SEAT OUTER CUSHION SHIELD (for Driver Side)

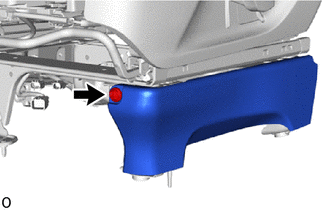

B539373C01
0.24,1.542 0.688,1.854 true 0.292,0.292 0.896,0.583 true 0.115,0.115 0.313,0.281 0.198,0.167 10 false *a 0.073,1.354 0.25,1.5 0.177,0.146 10 false *b
*a Hook
*b Guide
V113147

Install in this Direction


a.

Attach the guide as shown in the illustration.


b.

Attach the claw and hook and install the front seat outer cushion shield as shown in the illustration.


Hide 71874W 11.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

a.
B539374C01

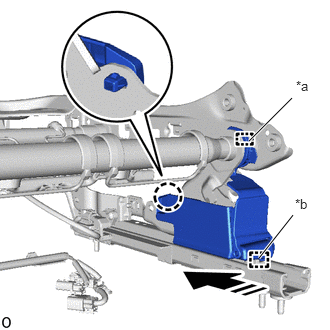

2.594,1.469 3.042,1.021 true 2.698,2.688 3.052,2.24 true 3.083,0.813 3.281,1.01 0.198,0.198 10 false *a 3.073,2.042 3.271,2.198 0.198,0.156 10 false *b
*a Hook
*b Guide
V113147

Install in this Direction


Attach the guide as shown in the illustration.


b.

Attach the claw and hook and install the front seat inner cushion shield RH as shown in the illustration.

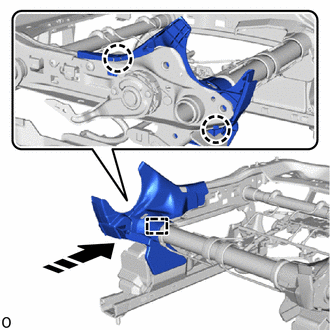

Hide 71H76B 12.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.
B539375C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and claw and install the LH seat reclining adjuster inside cover LH as shown in the illustration.

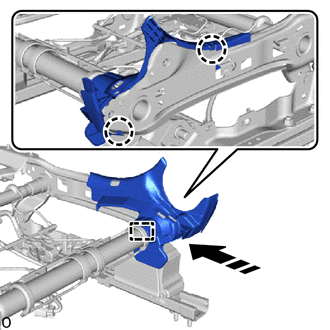

Hide 71H75C 13.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH

a.
B539376C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and claw and install the LH seat reclining adjuster inside cover RH as shown in the illustration.


Hide 82F66 14.INSTALL CONNECTOR HOLDER (for Front Passenger Side, w/ Occupant Detection Sensor)

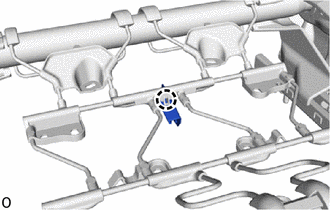

a.
B535082

Attach the claw and install the connector holder.


Hide 71072 15.INSTALL FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:

When installing front seat cushion cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.
B532664

Attach the hook and install the front seat cushion cover sub-assembly LH.

NOTICE:

Be careful not to damage the front seat cushion cover sub-assembly LH.



b.

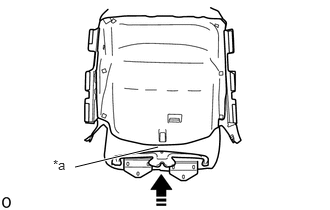

B532662C03
0.781,1.74 1.646,1.531 true 0.552,1.635 0.76,1.833 0.208,0.198 10 false *a
*a Band
V113147

Install in this Direction


Attach the band.

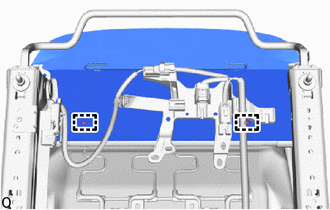

Hide 16.INSTALL FRONT SEAT CUSHION COVER WITH PAD

a.

Attach the hook and install the front seat cushion cover with pad.

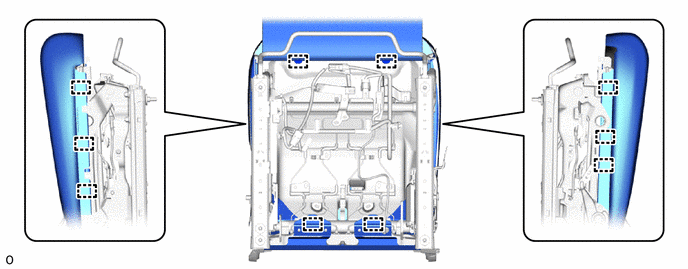

B532660


b.
B542061

Attach the hook.


c.

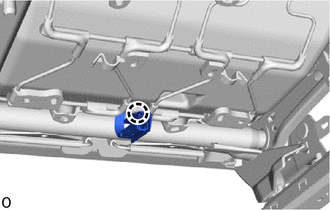

B532654

w/ Occupant Detection Sensor:

i.

Attach the claw.



Hide 17.INSTALL SCREW GROMMET (w/ Seatback Board)

a.
B553719

Install the 2 screw grommets.


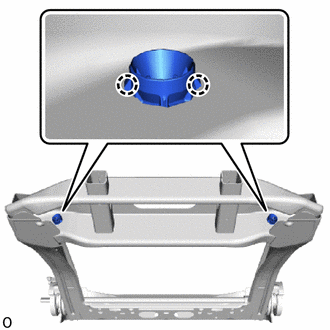

Hide 71759F 18.INSTALL FRONT SEATBACK HOOK

a.
B541256

Attach the claw and install 2 new front seatback hooks.

NOTICE:

Check that the claw of the front seatback hook is securely attached.

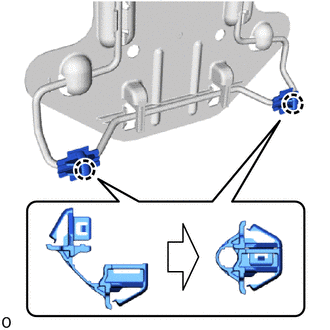

Hide 71587L 19.INSTALL FRONT SEATBACK EDGE PROTECTOR

a.
B517417

Attach the claw and install the 2 front seatback edge protectors.

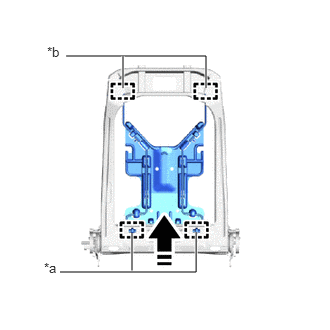

Hide 71053A 20.INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY LH

B541274C01
0.688,0.583 2.146,0.583 2.146,0.583 2.146,0.917 true 1.281,0.917 1.281,0.583 true 1.375,2.844 1.375,2.427 true 0.625,2.833 2.042,2.833 2.042,2.833 2.042,2.417 true 0.458,2.708 0.771,2.865 0.313,0.156 10 false *a 0.49,0.458 0.688,0.635 0.198,0.177 10 false *b
*a Clamp
*b Guide
V113147

Install in this Direction


a.

Attach the guide as shown in the illustration.


b.

Attach the clamp and install the front seatback spring sub-assembly LH.


Hide 79977N 21.INSTALL SEATBACK FELT (w/o Seatback Board, w/ Lumbar Support)

a.
B511427C01
0,0 0,0 false
V113147

Install in this Direction


Install the seatback felt as shown in the illustration.


Hide 72750G 22.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (w/ Lumbar Support)

HINT:

Use the same procedure described for the front seatback spring sub-assembly LH.


Hide 8219AA 23.INSTALL FRONT SEAT NO. 3 WIRE RH (w/ Lumbar Support)

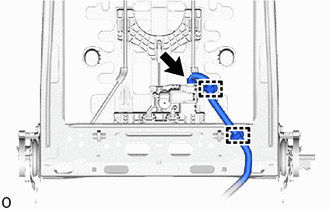

a.
B650814

Attach the clamp and connect the connector to install the front seat No. 3 wire RH.


Hide 71074A 25.INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY LH

HINT:

When installing a front seatback cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

w/ Front Seat Side Airbag:

i.

Attach the hook and install the front seatback cover sub-assembly LH to the front seatback pad LH.

HINT:

Be careful not to damage the front seatback cover sub-assembly LH.


B546266C02

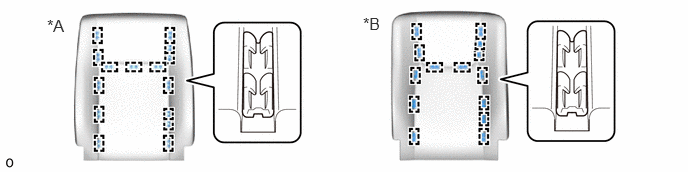

0.49,0.167 0.802,0.323 0.313,0.156 12 false *A 3.781,0.146 4.094,0.302 0.313,0.156 12 false *B
*A except Wagon *B for Wagon




b.

w/o Front Seat Side Airbag:

i.

Attach the hook and install the front seatback cover sub-assembly LH to the front seatback pad LH.

HINT:

Be careful not to damage the front seatback cover sub-assembly LH.


B546264C01
0.51,0.281 0.823,0.521 0.313,0.24 12 false *A 3.781,0.281 4.115,0.49 0.333,0.208 12 false *B 2.135,2.146 2.438,2.417 0.302,0.271 12 false *C
*A for Type A *B for Type B
*C for Wagon - -

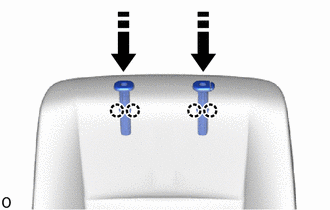

Hide 26.INSTALL FRONT SEATBACK COVER WITH PAD

a.

Install the front seatback cover with pad.


b.
B532626C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the 2 front seat headrest supports as shown in the illustration.


c.
B532602

Close the 2 fasteners.


d.
B546267

w/ Front Seat Side Airbag:

i.

Pass the wire harness through the hole of the front seatback cover sub-assembly LH as shown in the illustration.



e.

Attach the hook.


f.

w/ Front Seatback Board:

i.
B547558

Insert the 2 fasteners.



Hide 27.INSTALL FRONT SEATBACK ASSEMBLY

a.

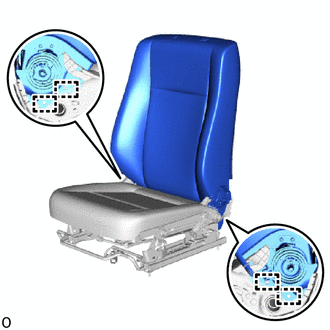

B541257

Attach the guide and install the front seatback assembly to the front seat cushion assembly.


b.
B541252

Temporarily install the front seatback assembly with the 4 bolts.


c.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


d.
B532597

w/ Front Seat Side Airbag:

i.

Attach the claw and clamp.

NOTICE:

Attach the claw first.



ii.

Connect the connector.



e.

w/ Lumbar Support:

i.

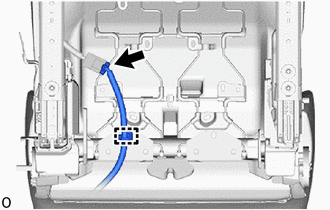

B650813

Attach the clamp and connect the connector.



f.
B541251

Attach the hook.


g.
B532596

w/o Front Seatback Board:

i.

Attach the band.



Hide 71705G 28.INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH (w/ Seatback Board)

a.

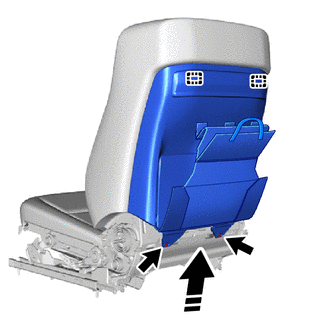

B547560C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the front seatback board sub-assembly LH as shown in the illustration.


b.

Install the 2 screws.


c.
B546284

Attach the band.


Hide 73240 29.INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

a.

Install the front seat belt anchor plate.


b.

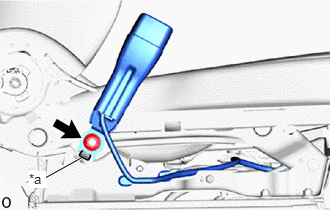

B541258C01
0.469,1.854 0.844,1.646 true 0.302,1.781 0.479,1.958 0.177,0.177 10 true *a
*a Protruding Part


Install the front seat inner belt assembly LH with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the front seat inner belt assembly LH to overlap the protruding part.



c.

w/ Sub Wire Harness:

i.

Attach the claw and clamp.

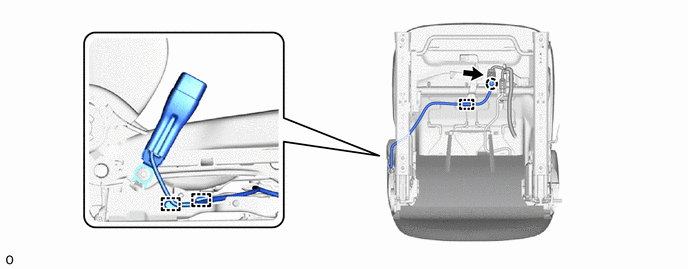

B541588


ii.

Connect the connector.



d.

w/o Sub Wire Harness:

i.

Attach the clamp.

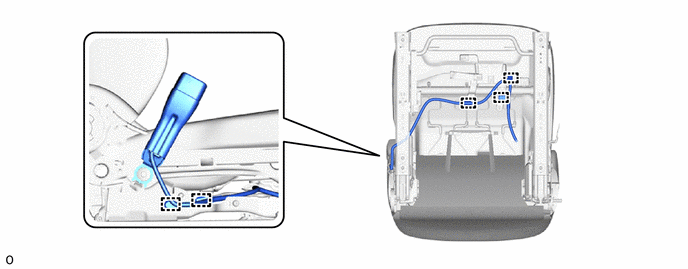

B541587



Hide 73230 30.INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

a.

Install the front seat belt anchor plate.


b.

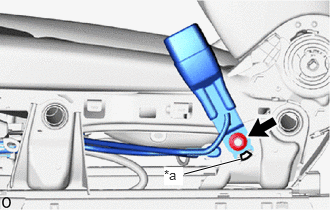

B539077C01
1.917,1.813 2.51,1.656 true 1.708,1.74 1.906,1.927 0.198,0.188 10 true *a
*a Protruding Part


Install the front seat inner belt assembly RH with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the front seat inner belt assembly RH to overlap the protruding part.



c.

w/ Seat Belt Warning System, w/ Front Seat Side Airbag:

i.

Attach the claw and clamp.

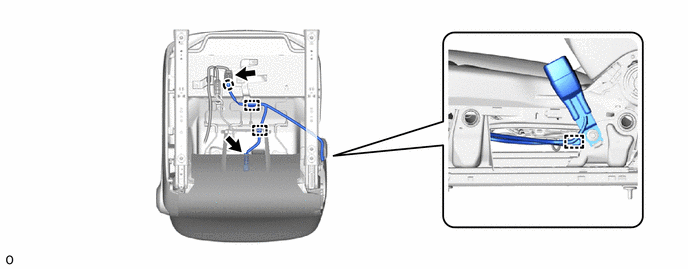

B541586


ii.

Connect the 2 connectors.



d.

w/ Seat Belt Warning System, w/o Front Seat Side Airbag:

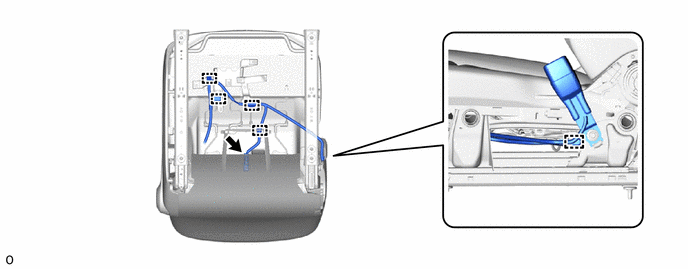

i.

Attach the clamp.

B541585


ii.

Connect the connector.



Hide 84920C 31.INSTALL FRONT POWER SEAT SWITCH ASSEMBLY RH (w/ Lumbar Support)

Click hereVehicle Interior>SEAT>LUMBAR SWITCH>INSTALLATION

Hide 71812T 32.INSTALL FRONT SEAT CUSHION SHIELD LH (for Driver Side)

a.

w/ Lumbar Support:

i.

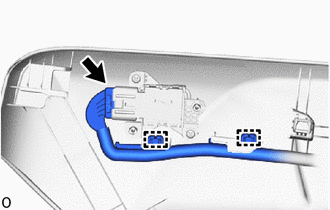

B650811

Attach the clamp and connect the connector.



b.

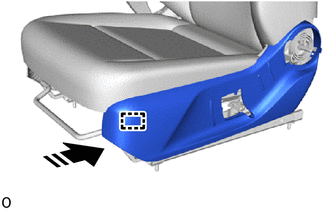

B546282C02
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.

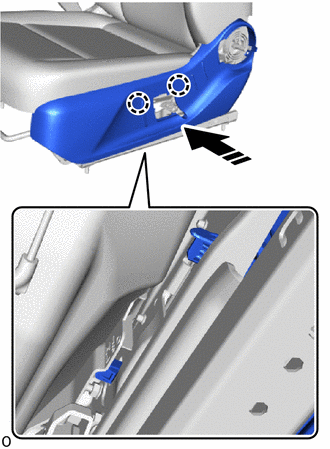

c.
B546279C02
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.

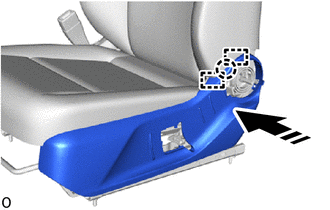

d.
B546272C02
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide as shown in the illustration.

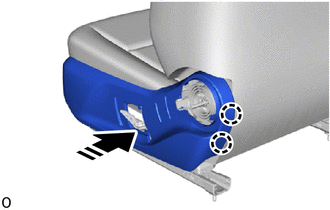

e.
B546277C02
0,0 0,0 false
V113147

Install in this Direction

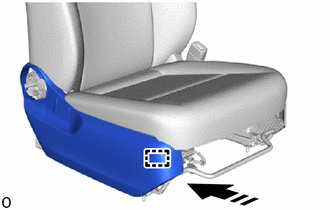

Attach the claw and install the front seat cushion shield LH as shown in the illustration.

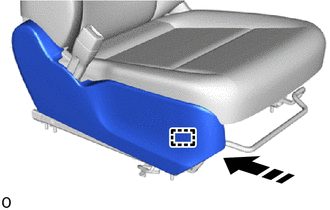

Hide 71862K 33.INSTALL FRONT SEAT INNER CUSHION SHIELD LH (for Driver Side)

a.
B532633C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.

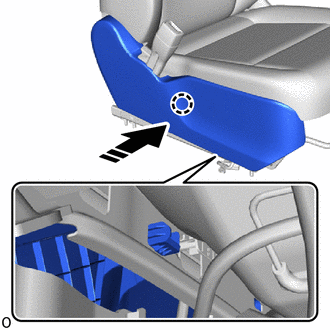

b.
B532634C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


c.

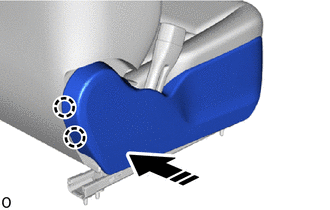

B532636C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and as shown in the illustration.

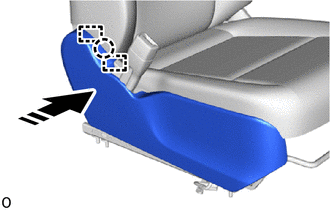

d.
B532635C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide and install front seat inner cushion shield LH as shown in the illustration.


Hide 71861K 34.INSTALL FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side)

a.

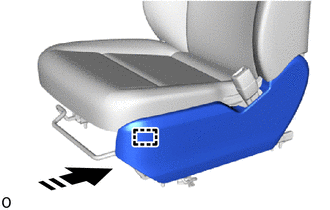

B532644C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


b.
B532642C01
0,0 0,0 false
V113147

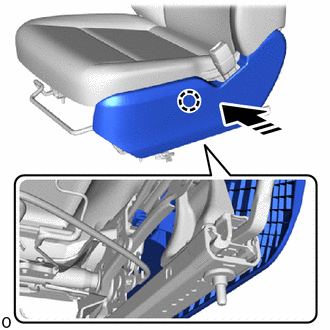

Install in this Direction


Attach the claw as shown in the illustration.


c.

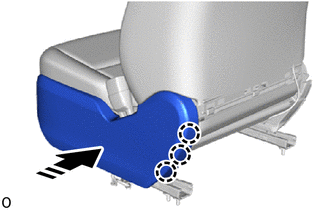

B532640C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


d.

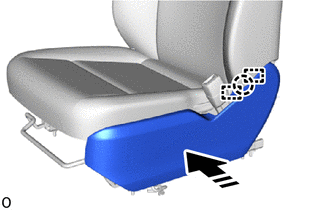

B532638C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide and install the front seat inner cushion shield RH as shown in the illustration.


Hide 71811T 35.INSTALL FRONT SEAT CUSHION SHIELD RH (for Front Passenger Side)

a.
B551297C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


b.

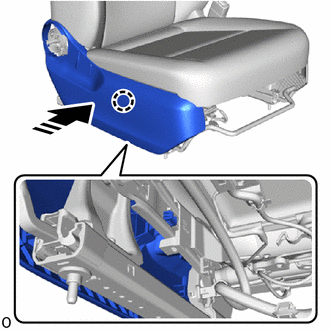

B551298C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


c.

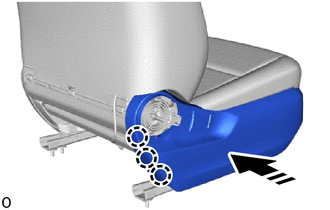

B551299C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


d.

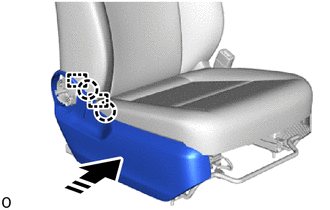

B551300C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide and install the front seat cushion shield RH as shown in the illustration.


Hide 71849J 36.INSTALL FRONT SEAT NO. 3 ADJUSTER COVER CAP LH (for Driver Side)

a.

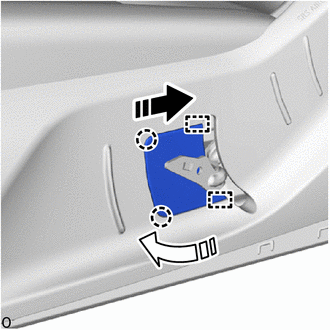

B546269C02
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Push in the installation direction (1) shown in the illustration and attach the guide.


b.

Push in the installation direction (2) shown in the illustration, attach the claw and install the front seat No. 3 adjuster cover cap LH.


Hide 72526H 37.INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

a.
B546276

Attach the guide and install the reclining adjuster release handle LH.


Hide 72551L 38.INSTALL RECLINING HINGE COVER LH

a.
B546275C02
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw and install the reclining hinge cover LH as shown in the illustration.


Hide 72495A 39.INSTALL FRONT SEAT VERTICAL ADJUSTER HANDLE LH (for Driver Side)

a.
B546268C02
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the front seat vertical adjuster handle LH as shown in the illustration.


Hide 71140A 40.INSTALL FRONT SEAT LEG ASSEMBLY LH

a.

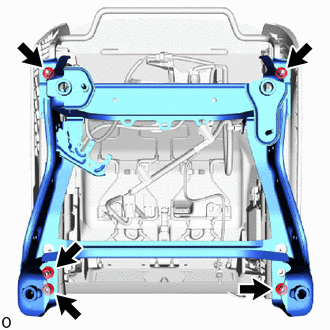

B532578

Install the front seat leg assembly LH with the 5 nuts.

Torque:
19.5 N*m (199 kgf*cm, 14 ft.*lbf)


b.

for Driver Side:

i.

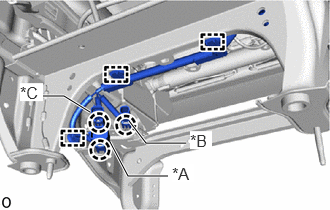

B532577C03
1.146,1.479 1.333,1.833 1.333,1.833 1.75,1.833 true 1.344,1.26 1.521,1.49 1.521,1.49 1.938,1.49 true 0.417,1 0.667,1 0.667,1 0.938,1.167 true 1.792,1.708 2.021,1.896 0.229,0.188 12 true *A 1.979,1.365 2.208,1.552 0.229,0.188 12 true *B 0.208,0.865 0.448,1.052 0.24,0.188 12 true *C
*A w/ Seat Belt Warning System
*B w/ Front Seat Side Airbag
*C w/ Seat Position Airbag Sensor


Attach the claw and clamp.



c.

for Front Passenger Side:

i.

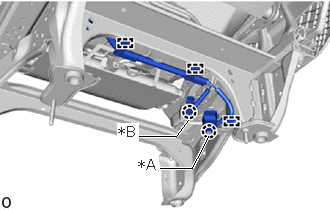

B537005C01
1.417,1.417 1.833,1.417 1.833,1.417 1.958,1.25 true 1.667,1.75 2,1.75 2,1.75 2.167,1.417 true 1.427,1.625 1.656,1.823 0.229,0.198 12 true *A 1.219,1.281 1.448,1.469 0.229,0.188 12 true *B
*A w/ Seat Belt Warning System
*B w/ Front Seat Side Airbag


Attach the claw and clamp.



d.
B540030

Attach the clip.


Hide 71139P 41.INSTALL FRONT SEAT OUTER LEG COVER LH

a.
B554778C01
0,0 0,0 false
V113146

Place hand here
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Place your hand at the position shown in the illustration and pull in the installation direction (1).


b.

Push in the installation direction (2) shown in the illustration and attach the guide.


c.
B532570C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip and guide and install the front seat outer leg cover LH as shown in the illustration.


d.
B532568

Install the screw.


e.
B532567

Install the clip.


Hide 71139Q 42.INSTALL FRONT SEAT INNER LEG COVER LH

HINT:

Use the same procedure described for the outer side.


Hide 71848R 43.INSTALL FRONT SEAT NO. 1 ADJUSTER COVER CAP LH

a.

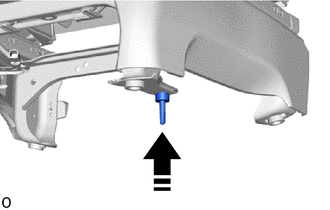

B532576C01
0,0 0,0 false
V113147

Install in this Direction


Install the front seat No. 1 adjuster cover cap LH as shown in the illustration.


Hide 71848S 44.INSTALL FRONT SEAT NO. 2 ADJUSTER COVER CAP LH

a.

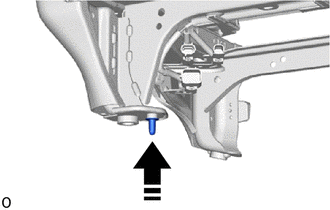

B532573C01
0,0 0,0 false
V113147

Install in this Direction


Install the front seat No. 2 adjuster cover cap LH as shown in the illustration.
