SEAT FRONT SEAT ASSEMBLY(for Power Seat) REASSEMBLY

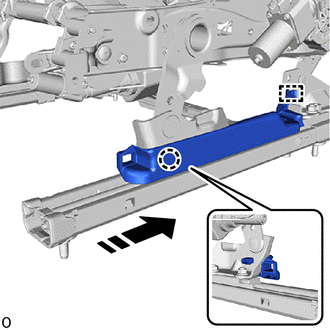

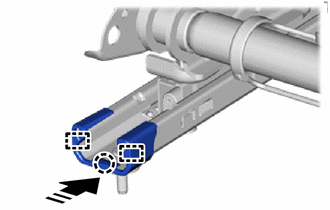

Hide Display 72137V 1.INSTALL FRONT SEAT TRACK COVER LH

HINT:: Use the same procedure for the other side.

a.

0,0 0,0 false

Remove in this Direction

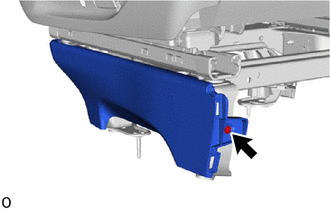

Attach the claw and install the front seat track cover LH as shown in the illustration.

Hide Display 72265N 2.INSTALL UPPER SEAT TRACK RAIL COVER LH

HINT:: Use the same procedure for the other side.

a.

0,0 0,0 false

Install in this Direction

Attach the claw and install the upper seat track rail cover LH as shown in the illustration.

Hide Display 72125V 3.INSTALL REAR UPPER SEAT TRACK COVER LH

HINT:: Use the same procedure for the other side.

a.

Connect the battery to slide motor of the move the seat cushion spring to the rearmost position.

HINT:: Refer to inspection.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSPECTION201906,999999,_58,_078601,_0396271,RM100000001IGPL,

b.

0,0 0,0 false

Install in this Direction

Attach the claw and install the rear upper seat track cover LH as shown in the illustration.

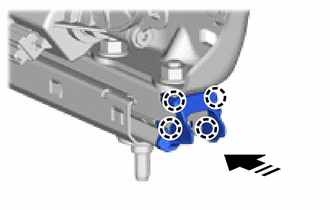

Hide Display 72123H 4.INSTALL INNER SEAT TRACK LOCK PLATE LH

HINT:: Use the same procedure for the other side.

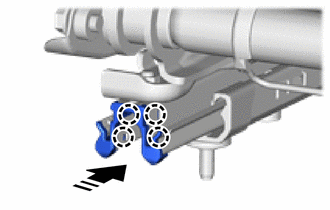

a.

0,0 0,0 false

Install in this Direction

Attach the claw and install the inner seat track lock plate LH as shown in the illustration.

Hide Display 71874U 5.INSTALL FRONT SEAT LOWER CUSHION SHIELD LH

a.

0,0 0,0 false

Install in this Direction

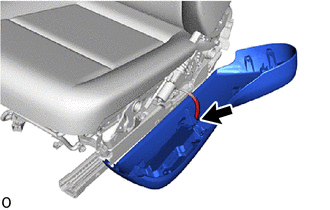

Attach the guide and claw and install the front seat lower cushion shield LH.

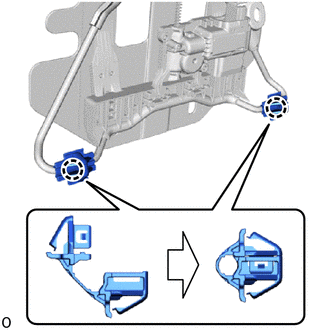

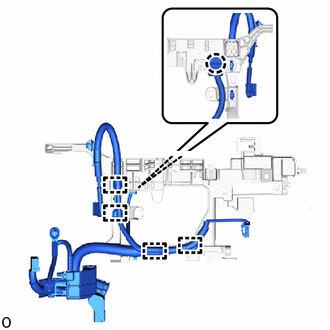

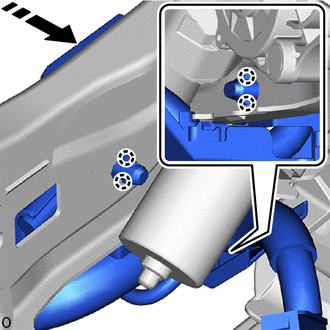

Hide Display 82192B 6.INSTALL FRONT NO. 4 SEAT WIRE LH

a.

Attach the claw and clamp and install the front No. 4 seat wire LH.

Hide Display 82192A 7.INSTALL FRONT NO. 3 SEAT WIRE LH (w/ Seat Position Airbag Sensor)

a.

Attach the claw.

b.

Attach the clamp and install the front No. 3 seat wire LH.

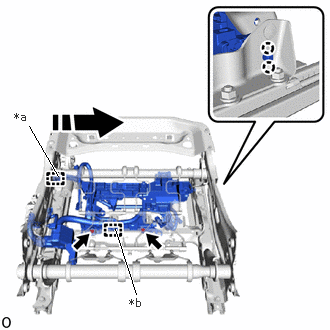

Hide Display 7181BA 8.INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER LH

a.

1.417,3.063 1.198,2.385 true 0.604,1.833 0.302,1.313 true 0.146,1.146 0.458,1.344 0.313,0.198 10 false *a 1.344,3.083 1.656,3.281 0.313,0.198 10 false *b

*a	Hook
*b	Guide
	Install in this Direction

Slide in the installation direction shown in the illustration and attach the hook and claw.

b.

Attach the guide.

c.

Install the front seat cushion wire harness holder LH with the 2 screws.

d.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

e.

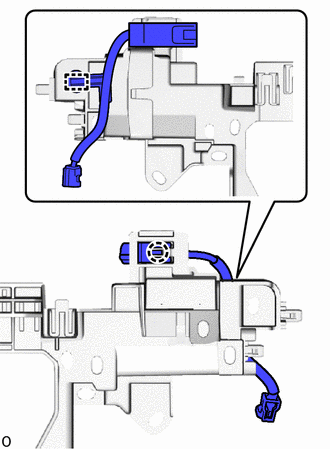

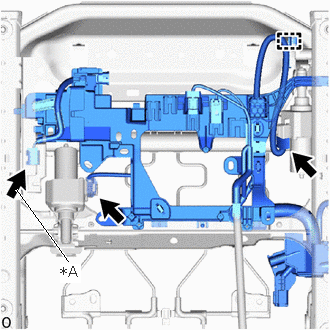

0.167,1.969 0.708,2.719 true 0.615,2.74 0.844,2.948 0.229,0.208 12 true *A

*A	w/ Seat Position Airbag Sensor

Connect the 2 connectors.

f.

w/ Seat Position Airbag Sensor:

i.

Connect the connector.

g.

Attach the clamp.

h.

Connect the connector.

i.

Attach the clamp.

Hide Display 71874V 9.INSTALL FRONT SEAT OUTER CUSHION SHIELD

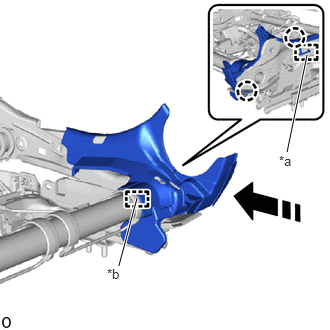

a.

1.583,2.438 1.354,1.854 true 1.51,0.396 0.479,0.448 true 0.313,0.313 0.625,0.51 0.313,0.198 10 false *a 1.583,2.479 1.896,2.677 0.313,0.198 10 false *b

*a	Hook
*b	Guide
	Install in this Direction

Attach the guide as shown in the illustration.

b.

Attach the claw.

c.

Attach the hook and install the front seat outer cushion shield.

Hide Display 71874W 10.INSTALL FRONT SEAT INNER CUSHION SHIELD

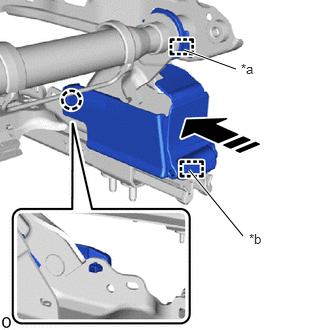

a.

1.917,0.521 2.458,0.719 true 1.969,1.771 2.531,2.458 true 2.51,0.635 2.823,0.792 0.313,0.156 10 false *a 2.594,2.406 2.906,2.563 0.313,0.156 10 false *b

*a	Hook
*b	Guide
	Install in this Direction

Attach the guide as shown in the illustration.

b.

Attach the claw.

c.

Attach the hook and install the front seat inner cushion shield.

Hide Display 71H76B 11.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.

0,0 0,0 false

Install in this Direction

Attach the hook and claw and install the LH seat reclining adjuster inside cover LH as shown in the illustration.

Hide Display 71H76C 12.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH

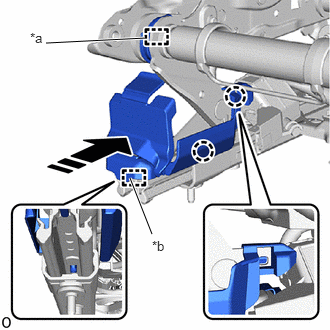

a.

2.99,1.583 3.198,0.573 true 1.229,2.802 1.427,2.063 true 2.906,1.594 3.219,1.75 0.313,0.156 10 false *a 1.115,2.771 1.313,2.979 0.198,0.208 10 true *b

*a	Guide
*b	Hook
	Install in this Direction

Attach the hook, guide and claw and install the LH seat reclining adjuster inside cover RH as shown in the illustration.

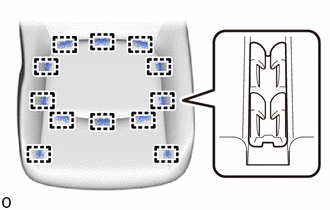

Hide Display 71072 13.INSTALL FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:: When installing front seat cushion cover sub-assembly LH, refer to Precaution in order to prevent wrinkles from forming.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

a.

Attach the hook and install the front seat cushion cover sub-assembly LH to the front seat cushion pad LH.

NOTICE:: Be careful not to dirty or damage the front seat cushion cover sub-assembly LH.

b.

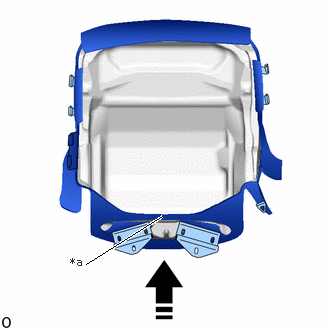

0.896,2.75 1.688,2.25 true 0.729,2.656 1.042,2.854 0.313,0.198 10 false *a

*a	Band
	Install in this Direction

Attach the band as shown in the illustration.

Hide Display 14.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.

Attach the hook and install the separate type front seat cushion cover with pad.

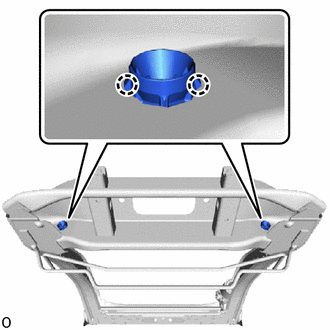

Hide Display 15.INSTALL SCREW GROMMET

a.

Install the 2 screw grommets.

Hide Display 71759F 16.INSTALL FRONT SEATBACK HOOK LH

a.

Attach the claw and install 2 new front seatback hooks.

NOTICE:: Check that the claw of the 2 front seatback hooks are securely attached.

Hide Display 71587L 17.INSTALL FRONT SEATBACK EDGE PROTECTOR LH

a.

Attach the claw and install the 2 front seatback edge protectors LH.

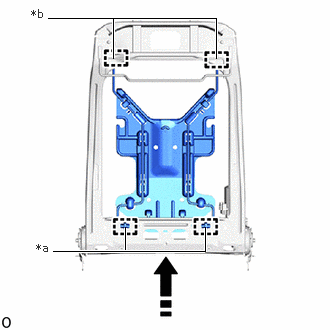

Hide Display 71053A 18.INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY LH (w/o Lumbar Support)

a.

0.5,0.188 2.25,0.188 2.25,0.188 2.25,0.604 true 1.177,0.604 1.177,0.188 true 1.302,2.615 1.302,2.365 true 0.552,2.615 2.135,2.615 2.135,2.615 2.135,2.365 true 0.375,2.51 0.688,2.667 0.313,0.156 10 false *a 0.323,0.073 0.521,0.25 0.198,0.177 10 false *b

*a	Clamp
*b	Guide
	Install in this Direction

Attach the guide as shown in the illustration.

b.

Attach the clamp and install the front seatback spring sub-assembly LH.

Hide Display 72750G 19.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (w/ Lumbar Support)

HINT:: Use the same procedure described for the front seatback spring sub-assembly LH.

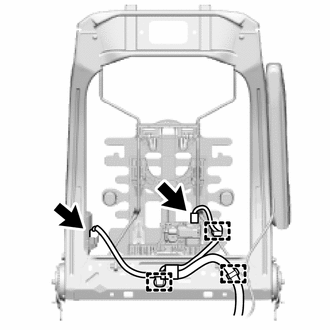

Hide Display 8219BA 20.INSTALL FRONT NO. 2 SEAT WIRE LH (w/o Lumbar Support)

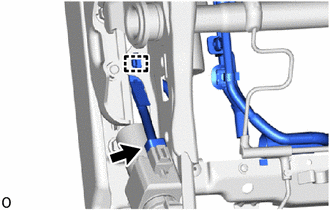

a.

Attach the clamp and install the front No. 2 seat wire LH.

b.

Connect the connector.

Hide Display 8219AA 21.INSTALL FRONT NO. 2 SEAT WIRE RH (w/ Lumbar Support)

a.

Connect the 2 connectors.

b.

Attach the clamp and install the front No. 2 seat wire RH.

Hide Display 73920B 22.INSTALL FRONT SEAT AIRBAG ASSEMBLY LH (w/ Front Seat Side Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for Power Seat)>INSTALLATION201906,999999,_58,_079257,_0396732,RM100000001IJM8_02_0087,

Hide Display 71074A 23.INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY LH

HINT:: When installing a front seatback cover sub-assembly LH, refer to Precaution in order to prevent wrinkles from forming.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

a.

Attach the hook and install the front seatback cover sub-assembly LH to the front seatback pad LH.

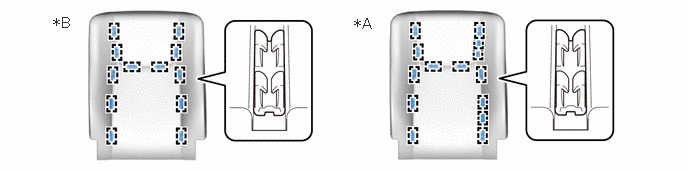

3.677,0.156 3.948,0.438 0.271,0.281 12 false *A 0.542,0.146 0.833,0.365 0.292,0.219 12 false *B

*A

w/ Front Seat Side Airbag

*B

w/o Front Seat Side Airbag

NOTICE:: Be careful not to dirty or damage the front seatback cover sub-assembly LH.

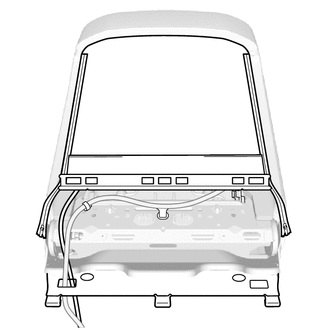

Hide Display 24.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.

Install the separate type front seatback cover with pad.

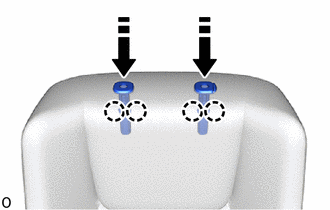

b.

0,0 0,0 false

Install in this Direction

Attach the claw and install the 2 front seat headrest supports as shown in the illustration.

c.

Close the 2 fasteners.

d.

Pass the front seat side airbag harness and front No. 2 seat wire LH through the hole of the front seatback cover sub-assembly LH.

e.

Attach the hook.

f.

Insert the 2 fasteners.

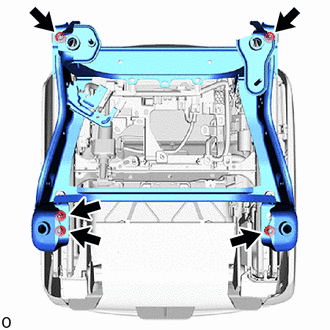

Hide Display 25.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.

Attach the guide.

b.

Temporarily install the separate type front seatback assembly with the 4 bolts.

c.

Tighten the 4 bolts.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

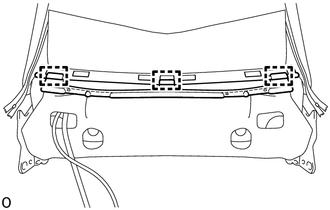

d.

Attach the hook.

e.

2.26,1.969 3,2.448 3,2.448 2.177,2.385 true 2.042,1.031 1.51,1.531 1.51,1.531 2.219,1.323 true 1.531,1.5 1.948,0.781 true 1.26,1.427 1.51,1.625 0.25,0.198 12 true *A 3.01,2.333 3.26,2.531 0.25,0.198 12 true *A

*A	w/ Front Seat Side Airbag

Attach the clamp.

f.

w/ Front Seat Side Airbag:

i.

Attach the claw.

ii.

Attach the clamp.

g.

Connect the connector.

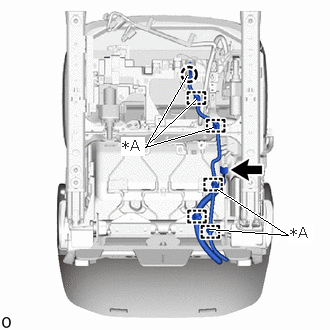

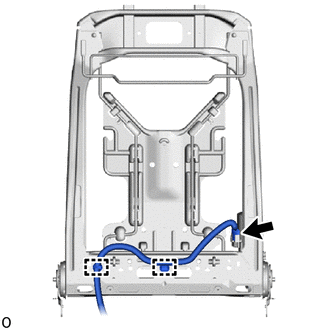

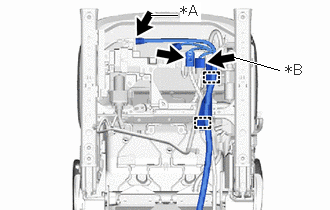

Hide Display 82192 26.INSTALL FRONT NO. 1 SEAT WIRE LH

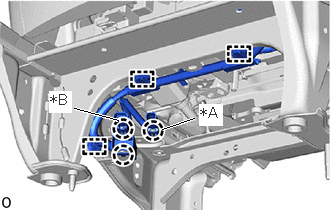

a.

2.438,0.594 2.906,0.729 true 1.563,0.156 1.844,0.156 true 1.865,0.021 2.094,0.229 0.229,0.208 12 true *A 2.958,0.635 3.229,0.844 0.271,0.208 12 false *B

*A	w/ Seat Position Airbag Sensor
*B	w/ Front Seat Side Airbag

Attach the clamp and install the front No. 1 seat wire LH.

b.

Connect the each connector.

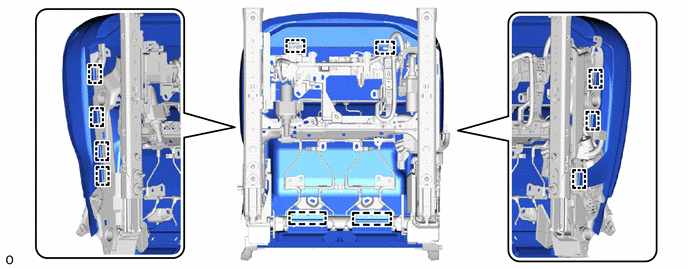

Hide Display 71705G 27.INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH

a.

0,0 0,0 false

Install in this Direction

Attach the hook and install the front seatback board sub-assembly LH as shown in the illustration.

b.

Install the 2 screws.

c.

Attach the band.

Hide Display 73240 28.INSTALL FRONT SEAT INNER BELT ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)>INSTALLATION201906,999999,_58,_078602,_0396272,RM100000001IGPS_01_0051,

Hide Display 84922 29.INSTALL FRONT POWER SEAT SWITCH

Click hereVehicle Interior>SEAT>POWER SEAT SWITCH (for Front Seat)>INSTALLATION201906,999999,_58,_078601,_0398433,RM100000001IVYE_02_0009,

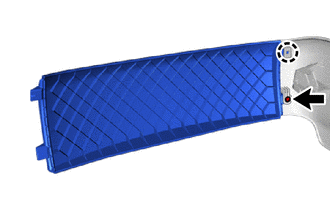

Hide Display 84921A 30.INSTALL RECLINING POWER SEAT SWITCH KNOB

a.

0,0 0,0 false

Install in this Direction

Attach the claw and install the reclining power seat switch knob.

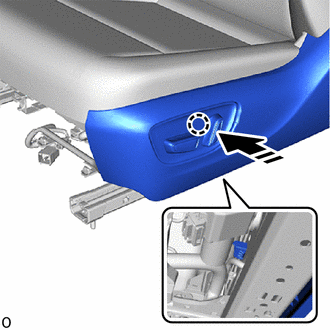

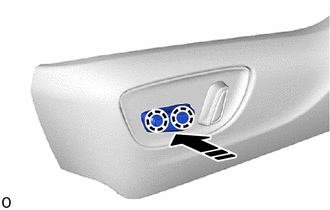

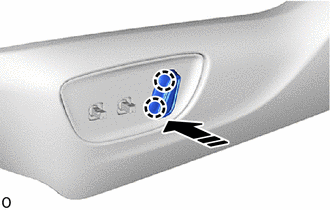

Hide Display 84921B 31.INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

a.

0,0 0,0 false

Install in this Direction

Attach the claw and install the slide and vertical power seat switch knob.

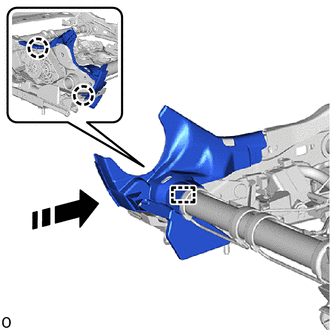

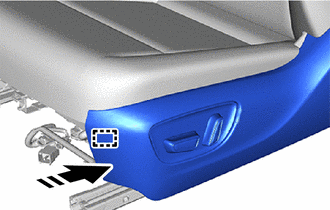

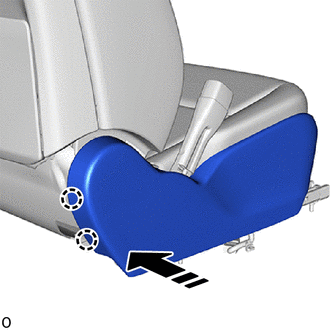

Hide Display 71812T 32.INSTALL FRONT SEAT CUSHION SHIELD LH

a.

Connect the connector.

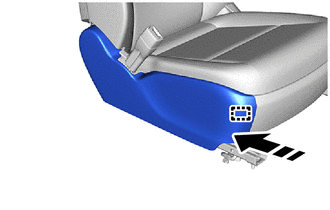

b.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

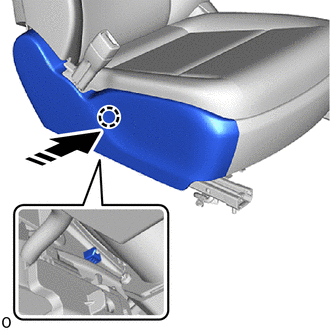

c.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

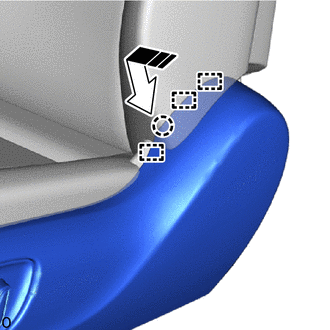

d.

0,0 0,0 false

Install in this Direction

Attach the guide and claw as shown in the illustration.

e.

0,0 0,0 false

Install in this Direction

Attach the claw and install the front seat cushion shield LH as shown in the illustration.

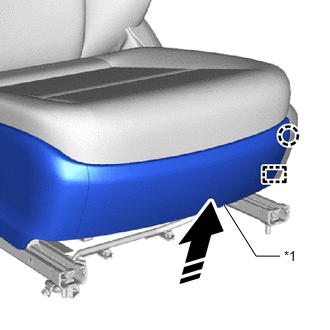

Hide Display 71867X 33.INSTALL FRONT SEAT FRONT CUSHION SHIELD LH

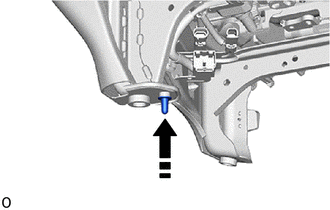

a.

Attach the claw and install the front seat front cushion shield LH.

b.

Install the screw.

Hide Display 71862K 34.INSTALL FRONT SEAT INNER CUSHION SHIELD LH

a.

2.333,2.135 2.667,2.667 2.667,2.667 2.917,2.667 true 2.958,2.583 3.208,2.75 0.25,0.167 10 false *1

*1	Front seat front cushion shield LH
	Install in this Direction

Attach the guide and claw as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

c.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

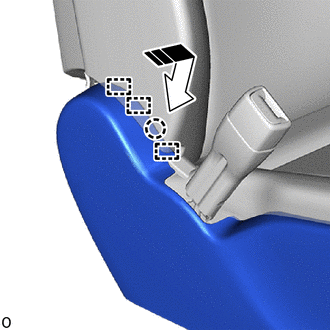

d.

0,0 0,0 false

Install in this Direction

Attach the guide and claw as shown in the illustration.

e.

0,0 0,0 false

Install in this Direction

Attach the claw and install the front seat inner cushion shield LH.

Hide Display 71140A 35.INSTALL FRONT SEAT LEG ASSEMBLY LH

a.

Install the front seat leg assembly LH with the 5 nuts.

Torque:: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

b.

0.771,1.125 1.229,1.25 true 1.688,1.344 2.021,1.229 true 2.073,1.083 2.323,1.313 0.25,0.229 12 true *A 0.51,0.948 0.75,1.177 0.24,0.229 12 true *B

*A	w/ Front Seat Side Airbag
*B	w/ Seat Position Airbag Sensor

Attach the claw and clamp.

c.

Install the 3 clips.

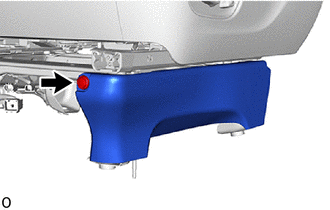

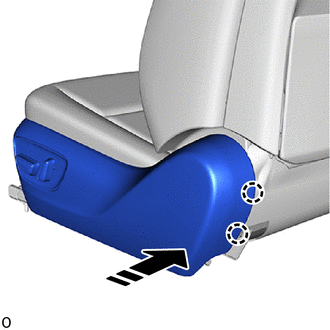

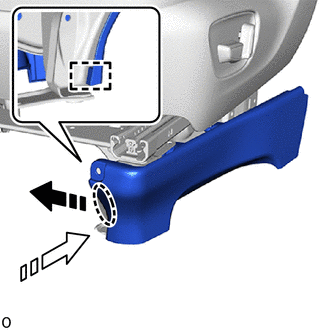

Hide Display 71139P 36.INSTALL FRONT SEAT OUTER LEG COVER LH

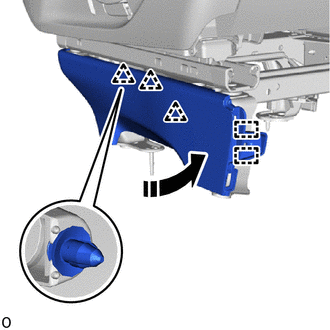

a.

0,0 0,0 false

	Place hand here
	Install in this Direction (1)
	Install in this Direction (2)

Place your hand at the position shown in the illustration and pull in the installation direction (1).

b.

Push in the installation direction (2) shown in the illustration and attach the guide.

c.

0,0 0,0 false

Install in this Direction

Attach the clip and guide and install the front seat outer leg cover LH as shown in the illustration.

d.

Install the screw.

e.

Install the clip.

Hide Display 71139Q 37.INSTALL FRONT SEAT INNER LEG COVER LH

HINT:: Use the same procedure described for the front seat outer leg cover LH.

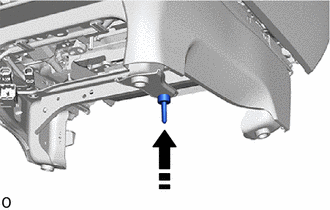

Hide Display 71848R 38.INSTALL FRONT NO. 1 SEAT ADJUSTER COVER CAP LH

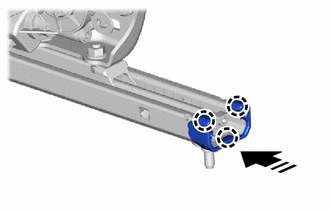

a.

0,0 0,0 false

Install in this Direction

Install the front No. 1 seat adjuster cover cap LH as shown in the illustration.

Hide Display 71848S 39.INSTALL FRONT NO. 2 SEAT ADJUSTER COVER CAP LH

a.

0,0 0,0 false

Install in this Direction

Install the front No. 2 seat adjuster cover cap LH as shown in the illustration.
