RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396481 VANITY LIGHT A

LIGHTING (INT)  VANITY LIGHT  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81340 1.INSTALL VANITY LIGHT ASSEMBLY

a.
E489995

Connect the connector.


b.
E489996C01
0,0 0,0 false
V113147

Install in this Direction

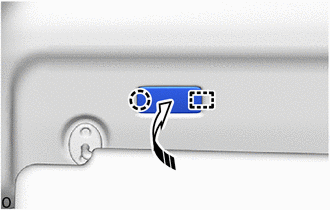

Attach the guide and claw to install the vanity light assembly.
