RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396481 VANITY LIGHT A

LIGHTING (INT)  VANITY LIGHT  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81340 1.REMOVE VANITY LIGHT ASSEMBLY

a.

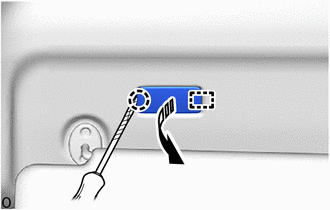

E489994C01
0,0 0,0 false
V100155

Protective Tape
V113147

Remove in this Direction


Using a thin-bladed screwdriver, detach the claw and guide.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

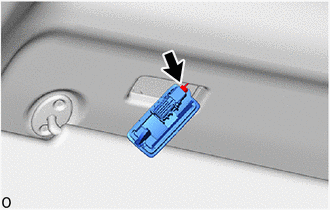

E489995

Disconnect the connector and remove the vanity light assembly as shown in the illustration.
