SUPPLEMENTAL RESTRAINT SYSTEMS
_0396679
AIRBAG SYSTEM(for Type C)
U

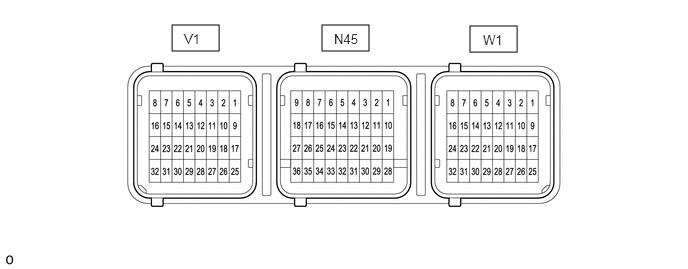

SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for Type C) TERMINALS OF ECU
AIRBAG ECU ASSEMBLY
3.354,0.26 3.844,0.531
0.49,0.271
4.896,0.271 5.385,0.542
0.49,0.271
1.792,0.26 2.281,0.531
0.49,0.271
3.479,0.323 3.792,0.521
0.313,0.198
10
false
N45
5.031,0.333 5.344,0.531
0.313,0.198
10
false
W1
1.917,0.323 2.229,0.521
0.313,0.198
10
false
V1
| Terminal No. | Terminal Symbol | Destination |
|---|---|---|
|
*1: w/ Driver Side Airbag 2nd Step *2: w/ Telematics System *3: for LHD *4: for RHD *5: w/ Seat Position Airbag Sensor |
||
| N45-1 | P2+ | Instrument panel passenger without door airbag assembly (front passenger side squib 2nd step) |
| N45-2 | P2- | Instrument panel passenger without door airbag assembly (front passenger side squib 2nd step) |
| N45-3 | P- | Instrument panel passenger without door airbag assembly |
| N45-4 | P+ | Instrument panel passenger without door airbag assembly |
| N45-6 | D+ | Horn button assembly |
| N45-7 | D- | Horn button assembly |
| N45-8 | D2- | Horn button assembly (driver side squib 2nd step)*1 |
| N45-9 | D2+ | Horn button assembly (driver side squib 2nd step)*1 |
| N45-12 | DK- | Lower No. 1 instrument panel airbag assembly |
| N45-13 | DK+ | Lower No. 1 instrument panel airbag assembly |
| N45-23 | GSW3 | Telematics transceiver assembly*2 |
| N45-25 | GSW | Main body ECU (multiplex network body ECU) |
| N45-26 | CANH | CAN communication line |
| N45-27 | CANL | CAN communication line |
| N45-28 | -SR | Front airbag sensor RH |
| N45-29 | +SR | Front airbag sensor RH |
| N45-30 | +SL | Front airbag sensor LH |
| N45-31 | -SL | Front airbag sensor LH |
| N45-32 | E2 | Ground |
| N45-33 | E1 | Ground |
| N45-36 | IG2 | A/BAG-IG2 fuse |
| V1-3 | PLR- | No. 3 seat outer belt assembly LH |
| V1-4 | PLR+ | No. 3 seat outer belt assembly LH |
| V1-5 | PL+ | Front seat outer belt assembly LH |
| V1-6 | PL- | Front seat outer belt assembly LH |
| V1-7 | ICL- | Front curtain shield airbag assembly LH |
| V1-8 | ICL+ | Front curtain shield airbag assembly LH |
| V1-11 | CL3- | Rear curtain shield airbag assembly LH (2nd step) |
| V1-12 | CL3+ | Rear curtain shield airbag assembly LH (2nd step) |
| V1-13 | CL2+ | Rear curtain shield airbag assembly LH |
| V1-14 | CL2- | Rear curtain shield airbag assembly LH |
| V1-15 | SFL- | Front seat airbag assembly LH |
| V1-16 | SFL+ | Front seat airbag assembly LH |
| V1-21 | PSL+ | Side airbag pressure sensor LH |
| V1-22 | PSL- | Side airbag pressure sensor LH |
| V1-25 | LSP+ | Front seat cushion spring assembly LH (seat position airbag sensor)*3, *5 |
| V1-26 | LSP- | Front seat cushion spring assembly LH (seat position airbag sensor)*3, *5 |
| V1-29 | BCL+ | No. 1 side airbag sensor LH |
| V1-30 | BCL- | No. 1 side airbag sensor LH |
| V1-31 | BBL- | No. 4 side airbag sensor LH |
| V1-32 | BBL+ | No. 4 side airbag sensor LH |
| W1-1 | ICR+ | Front curtain shield airbag assembly RH |
| W1-2 | ICR- | Front curtain shield airbag assembly RH |
| W1-3 | PR- | Front seat outer belt assembly RH |
| W1-4 | PR+ | Front seat outer belt assembly RH |
| W1-5 | PRR+ | No. 3 seat outer belt assembly RH |
| W1-6 | PRR- | No. 3 seat outer belt assembly RH |
| W1-9 | SFR+ | Front seat airbag assembly RH |
| W1-10 | SFR- | Front seat airbag assembly RH |
| W1-11 | CR2- | Rear curtain shield airbag assembly RH |
| W1-12 | CR2+ | Rear curtain shield airbag assembly RH |
| W1-13 | CR3+ | Rear curtain shield airbag assembly RH (2nd step) |
| W1-14 | CR3- | Rear curtain shield airbag assembly RH (2nd step) |
| W1-19 | PSR- | Side airbag pressure sensor RH |
| W1-20 | PSR+ | Side airbag pressure sensor RH |
| W1-25 | BBR+ | No. 4 side airbag sensor RH |
| W1-26 | BBR- | No. 4 side airbag sensor RH |
| W1-27 | BCR- | No. 1 side airbag sensor RH |
| W1-28 | BCR+ | No. 1 side airbag sensor RH |
| W1-31 | RSP- | Front seat cushion spring assembly RH (seat position airbag sensor)*4, *5 |
| W1-32 | RSP+ | Front seat cushion spring assembly RH (seat position airbag sensor)*4, *5 |
