RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397103 REAR SPOILER A

EXTERIOR PANELS / TRIM  REAR SPOILER  REASSEMBLY


PROCEDURE

Hide 76876B 1.INSTALL REAR SPOILER INSERT

Hide 76874C 2.INSTALL REAR SPOILER NO. 3 PROTECTOR

HINT:

When installing the rear spoiler No. 3 protector, heat the rear insert spoiler and rear spoiler No. 3 protector using a heat light.


Standard:
Item Temperature
Rear Insert Spoiler 20 to 30°C (68 to 86°F)
Rear Spoiler No. 3 Protector


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear insert spoiler and rear spoiler No. 3 protector excessively.


a.

When reusing the rear insert spoiler:

i.

Using a heat light, heat the rear insert spoiler surface.


ii.

Remove any remaining double-sided tape from the rear insert spoiler.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear insert spoiler with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.





b.

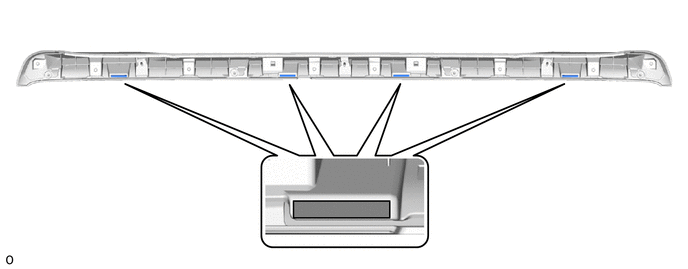

Apply primer to the rear insert spoiler on the installation area of the rear spoiler No. 3 protector using a brush or felt.

B619200
4.063,2.177 5.083,2.177 false 5.115,2.125 5.427,2.323 0.313,0.198 10 false *a
*a Scribed Line - -
V100144

Primer Application - -


NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear spoiler No. 3 protector has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Using a heat light, heat the rear insert spoiler and a new rear spoiler No. 3 protector.

NOTICE:

Do not heat the rear insert spoiler and rear spoiler No. 3 protector excessively.



e.

Remove the release paper from the rear spoiler No. 3 protector.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.



f.

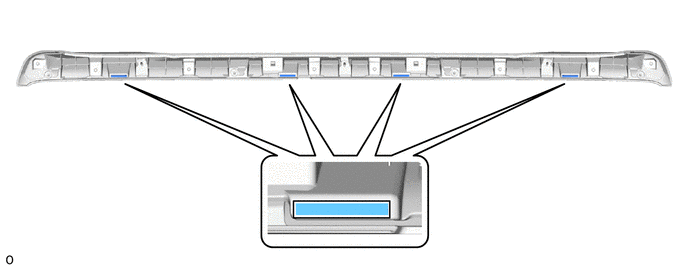

Install the 4 rear spoiler No. 3 protectors in the position shown in the illustration.

B619201
2.385,2.188 3.052,2.188 false 2.219,2.115 2.531,2.313 0.313,0.198 10 false *a
*a Mark-off Line - -


NOTICE:

The application strength of the rear spoiler No. 3 protector will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.


HINT:

Apply pressure so that it does not lift up from the rear insert spoiler.



Hide 76871 3.INSTALL REAR SPOILER

a.

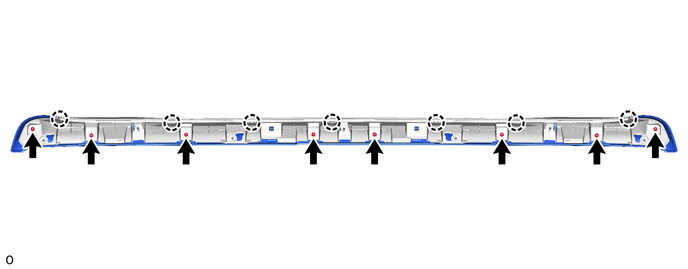

Attach the claw and install the rear spoiler.

B551724


b.

Install the 8 screws.
