EXTERIOR PANELS / TRIM REAR SPOILER DISASSEMBLY

PROCEDURE

Hide Display 76871 1.REMOVE REAR SPOILER

Remove the 8 screws.

Detach the claw and remove the rear spoiler.

Hide Display 76874C 2.REMOVE REAR SPOILER NO. 3 PROTECTOR

HINT:: When removing the rear spoiler No. 3 protector, if the double-sided tape is difficult to remove, heat the adhesive of the rear insert spoiler and rear spoiler No. 3 protector using a heat light.

Standard:

Item	Temperature
Rear Insert Spoiler	20 to 30°C (68 to 86°F)
Rear Spoiler No. 3 Protector	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear insert spoiler and rear spoiler No. 3 protector excessively.

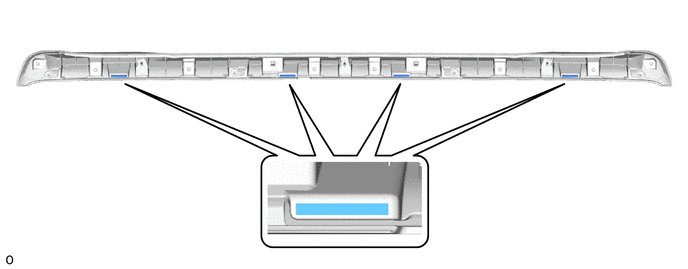

Remove the 4 rear spoiler No. 3 protectors.

Hide Display 76876B 3.REMOVE REAR SPOILER INSERT
