TELEMATICS  TELEMATICS SYSTEM(for ERA-GLONASS)  B153711  Telephone Sub Antenna Circuit Short to Ground  B153713  Telephone Sub Antenna Circuit Open


DESCRIPTION

These DTCs are stored when a malfunction occurs in the telephone sub antenna circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area
B153711 Telephone Sub Antenna Circuit Short to Ground Telephone sub antenna impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the ignition switch is ON.
(Short circuit)
·

Telematics transceiver

·

Navigation antenna assembly

·

Antenna cord sub-assembly

·

Harness or connector


B153713 Telephone Sub Antenna Circuit Open Telephone sub antenna impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the ignition switch is ON.
(Open circuit)
·

Telematics transceiver

·

Navigation antenna assembly

·

Antenna cord sub-assembly

·

Harness or connector

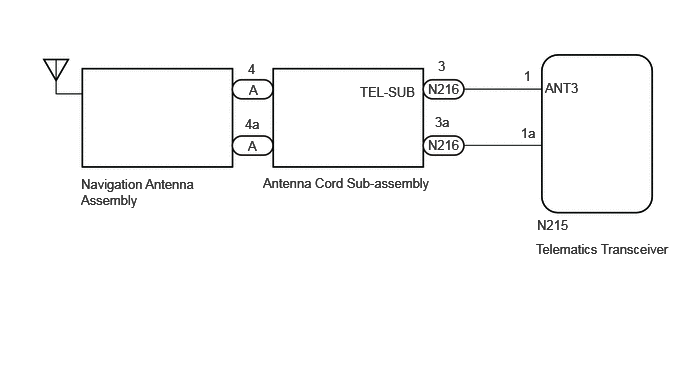

WIRING DIAGRAM

E409654E09
0.844,1.833 2.052,2.25 1.208,0.417 10 false Navigation Antenna Assembly 2.74,1.823 4.833,2.073 2.094,0.25 10 false Antenna Cord Sub-assembly 5.583,2.51 7.156,2.969 1.573,0.458 10 false Telematics Transceiver 4.458,0.844 5,1.083 0.542,0.24 10 false N216 2.594,0.854 2.708,1.021 0.115,0.167 10 false A 2.583,1.438 2.698,1.604 0.115,0.167 10 false A 5.427,1.302 5.625,1.469 0.198,0.167 10 false 1a 2.583,0.635 2.698,0.802 0.115,0.167 10 false 4 2.552,1.208 2.75,1.375 0.198,0.167 10 false 4a 5.594,2.26 6.135,2.5 0.542,0.24 10 false N215 5.458,0.708 6,0.948 0.542,0.24 10 false 1 4.458,1.427 5,1.667 0.542,0.24 10 false N216 4.563,0.604 5.104,0.844 0.542,0.24 10 false 3 4.531,1.188 5.073,1.427 0.542,0.24 10 false 3a 5.677,0.833 6.219,1.073 0.542,0.24 10 false ANT3 3.75,0.875 4.531,1.083 0.781,0.208 10 false TEL-SUB

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.



PROCEDURE

1.CHECK DTC
a.

Turn the ignition switch to ON.


b.

Connect the GTS to the DLC3.


c.

Turn the ignition switch to ON and wait for 10 seconds or more.


d.

Turn the GTS on.


e.

Check for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>DTC CHECK / CLEAR

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT NAVIGATION ANTENNA ASSEMBLY
2.INSPECT NAVIGATION ANTENNA ASSEMBLY
a.

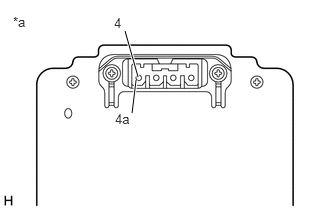

E356744C24
1.375,1.177 1.417,0.833 true 1.438,0.802 1.302,0.323 true 0.135,0.146 0.448,0.344 0.313,0.198 10 false *a 1.198,1.156 1.406,1.385 0.208,0.229 10 false 4a 1.188,0.156 1.396,0.385 0.208,0.229 10 false 4
*a Component without harness connected
(Navigation Antenna Assembly)


Remove the navigation antenna assembly.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION ANTENNA>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 - 4a Always 9 to 11 kΩ



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (ANTENNA CORD SUB-ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPLACE NAVIGATION ANTENNA ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION ANTENNA>REMOVAL


3.CHECK HARNESS AND CONNECTOR (ANTENNA CORD SUB-ASSEMBLY - TELEMATICS TRANSCEIVER)
a.

Disconnect the N215 telematics transceiver connector.


b.

Disconnect the N216 antenna cord sub-assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N215-1 (ANT3) - N216-3 (TEL-SUB) Always Below 1 Ω
N215-1 (ANT3) or N216-3 (TEL-SUB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.INSPECT ANTENNA CORD SUB-ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.INSPECT ANTENNA CORD SUB-ASSEMBLY
a.

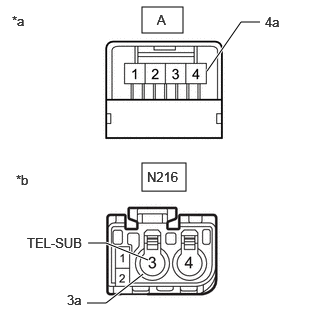

E467119C03
1.479,0.073 1.906,0.344 0.427,0.271 1.479,1.698 1.938,1.99 0.458,0.292 2.156,0.74 2.51,0.229 2.51,0.229 2.708,0.229 true 1.49,2.854 1.104,3.156 1.104,3.156 0.906,3.156 true 0.917,2.531 1.104,2.531 1.104,2.531 1.542,2.708 true 0.125,0.135 0.438,0.333 0.313,0.198 10 false *a 2.76,0.146 3.073,0.344 0.313,0.198 10 false 4a 0.698,3.042 1.01,3.24 0.313,0.198 10 false 3a 0.281,2.448 0.969,2.688 0.688,0.24 10 false TEL-SUB 1.635,0.125 1.948,0.323 0.313,0.198 10 false A 1.531,1.76 1.938,1.938 0.406,0.177 10 false N216 0.167,1.792 0.479,1.99 0.313,0.198 10 false *b
*a Front view of wire harness connector
(to Navigation Antenna Assembly)
*b Front view of wire harness connector
(to Wire Harness)


Disconnect the antenna connector from the navigation antenna assembly.


b.

Disconnect the antenna connector from wire harness connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A-4 - N216-3 (TEL-SUB) Always Below 1 Ω
A-4a - N216-3a Always Below 1 Ω
A-4 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK NAVIGATION ANTENNA ASSEMBLY

NG

REPLACE ANTENNA CORD SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO ANTENNA CORD (for Instrument Panel Side)>REMOVAL


5.CHECK NAVIGATION ANTENNA ASSEMBLY
a.

Replace the navigation antenna assembly with a known good one.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION ANTENNA>REMOVAL


b.

Clear the DTCs.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>DTC CHECK / CLEAR

Body Electrical > Telematics > Clear DTCs
50002 459

c.

Recheck for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for ERA-GLONASS)>DTC CHECK / CLEAR

Body Electrical > Telematics > Trouble Codes
50001 459
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

END (NAVIGATION ANTENNA ASSEMBLY IS DEFECTIVE)

NG

6.REPLACE TELEMATICS TRANSCEIVER
