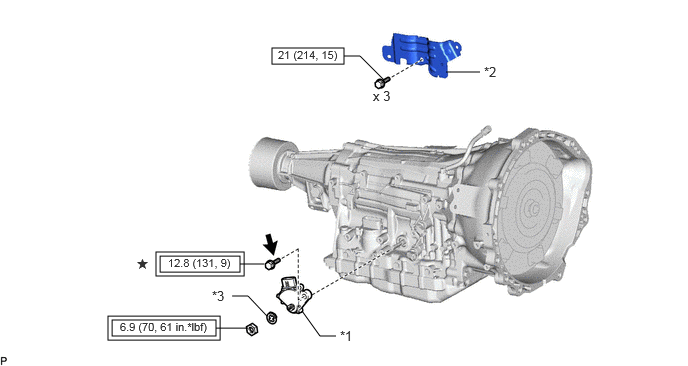

AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  PARK / NEUTRAL POSITION SWITCH  COMPONENTS

ILLUSTRATION

2.833,0.5 3.583,0.667 0.75,0.167 1.667,2.667 2.5,2.833 0.833,0.167 1.167,3.333 2.25,3.5 1.083,0.167 1.625,2.625 2.542,2.875 0.917,0.25 1.125,3.292 2.292,3.542 1.167,0.25 4.646,0.75 5,0.75 false 2.417,3.083 2.583,3.083 2.583,3.083 2.781,3.292 false 3.146,3.24 3.333,3.5 3.333,3.5 3.5,3.5 false 3.583,0.583 3.75,0.583 3.75,0.583 4,0.833 false 2.25,3.417 2.583,3.417 false 2.5,2.75 2.75,2.75 false 3.542,3.417 3.708,3.583 0.167,0.167 10 false *1 5.042,0.667 5.208,0.833 0.167,0.167 10 false *2 2.208,3 2.375,3.167 0.167,0.167 10 false *3 1.417,2.667 1.667,2.833 0.25,0.167 10 false ★ 2.896,0.5 3.729,0.667 0.833,0.167 8 false 21 (214, 15) 3.885,0.917 4.177,1.135 0.292,0.219 10 false x 3 1.75,2.667 2.583,2.833 0.833,0.167 8 false 12.8 (131, 9) 1.25,3.333 2.417,3.5 1.167,0.167 8 false 6.9 (70, 61 in.*lbf)

*1	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*2	TRANSMISSION INSULATOR RH
*3	LOCK WASHER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
	Toyota Genuine Adhesive 1344	★	Precoated part
