AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  TRANSMISSION WIRE  INSTALLATION


PROCEDURE

Hide 82125J 1.INSTALL TRANSMISSION WIRE

a.

Coat 2 new O-rings with ATF, and install them to the 2 temperature sensors.


b.

Coat a new O-ring with ATF, and install it to the transmission wire.


c.

Install the transmission wire to the automatic transmission case sub-assembly with the bolt.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


d.

Connect the transmission wire connector.

HINT:

Push up the lever until the claw of the transmission wire connector makes a connection sound.



Hide 35979B 2.INSTALL TRANSMISSION INSULATOR RH

a.

Install the transmission insulator RH to the automatic transmission assembly with the 3 bolts.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)

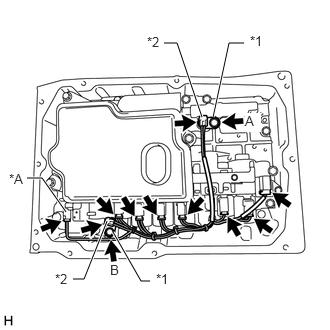

Hide 82125J 3.CONNECT TRANSMISSION WIRE

a.
C323967C02
1.708,0.448 1.844,0.448 1.844,0.448 2.104,1.219 true 2.542,0.448 2.385,0.448 2.385,0.448 2.219,1.219 true 0.76,2.906 0.875,2.906 0.875,2.906 1.115,2.302 true 1.563,2.927 1.469,2.927 1.469,2.927 1.177,2.417 true 0.281,1.854 0.438,1.854 0.438,1.854 0.688,2.208 true 2.604,0.344 2.917,0.5 0.313,0.156 10 false *1 0.573,2.823 0.885,2.979 0.313,0.156 10 false *2 0.094,1.781 0.406,1.938 0.313,0.156 10 false *A 1.531,0.354 1.844,0.51 0.313,0.156 10 false *2 1.625,2.823 1.938,2.979 0.313,0.156 10 false *1 2.552,1.177 2.719,1.375 0.167,0.198 10 true A 1.146,2.729 1.292,2.917 0.146,0.188 10 false B
*A w/ Stop and Start System
*1 Temperature Sensor Clamp
*2 Temperature Sensor


w/ Stop and Start System:

Connect the electromagnetic oil pump connector.


b.

Connect the 7 solenoid valve connectors to the transmission valve body assembly.


c.

Connect the 2 temperature sensors to the transmission valve body assembly with the 2 temperature sensor clamps and 2 bolts.

Torque:
for bolt A : 10 N*m (102 kgf*cm, 7 ft.*lbf)
for bolt B : 11 N*m (112 kgf*cm, 8 ft.*lbf)


Hide 35106 4.INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

a.
C323864

Install the 4 transmission oil cleaner magnets to the automatic transmission oil pan sub-assembly as shown in the illustration.


b.

Install a new automatic transmission oil pan gasket to the automatic transmission oil pan sub-assembly.


c.

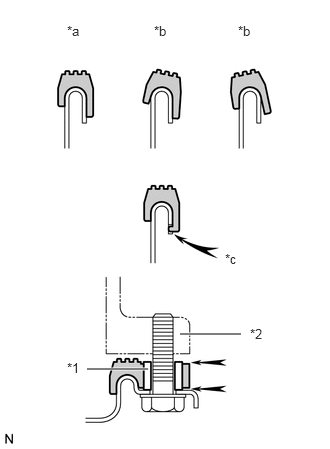

C157303C07
1.875,3.479 2.51,3.479 true 0.906,3.844 1.542,3.844 true 0.698,0.24 1.01,0.438 0.313,0.198 10 false *a 1.604,0.24 1.917,0.438 0.313,0.198 10 false *b 2.344,2.615 2.656,2.813 0.313,0.198 10 false *c 2.479,0.24 2.792,0.438 0.313,0.198 10 false *b 0.698,3.75 1.01,3.948 0.313,0.198 10 false *1 2.604,3.396 2.917,3.594 0.313,0.198 10 false *2
*1 Sleeve
*2 Automatic Transmission Case Sub-assembly
*a Correct
*b Incorrect
*c Protrusion


Install the automatic transmission oil pan sub-assembly with automatic transmission oil pan gasket to the automatic transmission case sub-assembly with the 10 bolts.

Torque:
7.4 N*m (75 kgf*cm, 65 in.*lbf)

NOTICE:
·

Make sure that automatic transmission oil pan gasket seal surface and automatic transmission oil pan sub-assembly contact surface are free of oil and foreign matter.

·

Install the automatic transmission oil pan gasket so that there is no slack in the automatic transmission oil pan gasket, and the entire seal surface is level.

·

Make sure that the 8 protrusions are properly engaged to the automatic transmission oil pan sub-assembly.

·

When installing the automatic transmission oil pan sub-assembly, make sure that the automatic transmission oil pan gasket is not pinched between the sleeve and the seal surface of the automatic transmission case sub-assembly.
