SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for Type B)  TERMINALS OF ECU

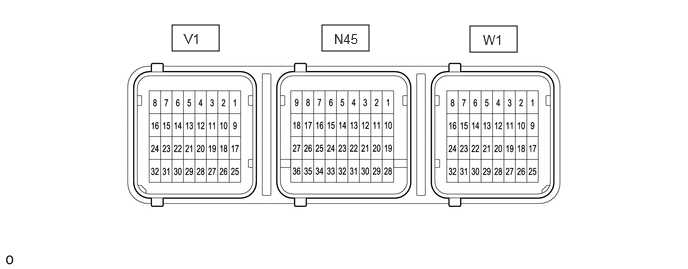

AIRBAG ECU ASSEMBLY

3.354,0.26 3.844,0.531 0.49,0.271 4.896,0.271 5.385,0.542 0.49,0.271 1.792,0.26 2.281,0.531 0.49,0.271 3.479,0.323 3.792,0.521 0.313,0.198 10 false N45 5.031,0.333 5.344,0.531 0.313,0.198 10 false W1 1.917,0.323 2.229,0.521 0.313,0.198 10 false V1

Terminal No.	Terminal Symbol	Destination
*: w/ Telematics System
N45-1	P2+	Instrument panel passenger without door airbag assembly (front passenger side squib 2nd step)
N45-2	P2-	Instrument panel passenger without door airbag assembly (front passenger side squib 2nd step)
N45-3	P-	Instrument panel passenger without door airbag assembly
N45-4	P+	Instrument panel passenger without door airbag assembly
N45-6	D+	Horn button assembly
N45-7	D-	Horn button assembly
N45-8	D2-	Horn button assembly (driver side squib 2nd step)
N45-9	D2+	Horn button assembly (driver side squib 2nd step)
N45-12	DK-	Lower No. 1 instrument panel airbag assembly
N45-13	DK+	Lower No. 1 instrument panel airbag assembly
N45-23	GSW3	Telematics transceiver*
N45-26	CANH	CAN communication line
N45-27	CANL	CAN communication line
N45-28	-SR	Front airbag sensor RH
N45-29	+SR	Front airbag sensor RH
N45-30	+SL	Front airbag sensor LH
N45-31	-SL	Front airbag sensor LH
N45-32	E2	Ground
N45-33	E1	Ground
N45-36	IG2	A/BAG-IG2 fuse
V1-3	PLR-	Rear seat outer belt assembly LH
V1-4	PLR+	Rear seat outer belt assembly LH
V1-5	PL+	Front seat outer belt assembly LH
V1-6	PL-	Front seat outer belt assembly LH
V1-7	ICL-	Front curtain shield airbag assembly LH
V1-8	ICL+	Front curtain shield airbag assembly LH
V1-13	CL2+	Rear curtain shield airbag assembly LH
V1-14	CL2-	Rear curtain shield airbag assembly LH
V1-15	SFL-	Front seat airbag assembly LH
V1-16	SFL+	Front seat airbag assembly LH
V1-27	LBR-	Rear seat inner belt assembly LH
V1-28	LBR+	Rear seat inner belt assembly LH
V1-29	BCL+	No. 1 side airbag sensor LH
V1-30	BCL-	No. 1 side airbag sensor LH
V1-31	BBL-	No. 3 side airbag sensor LH
V1-32	BBL+	No. 3 side airbag sensor LH
W1-1	ICR+	Front curtain shield airbag assembly RH
W1-2	ICR-	Front curtain shield airbag assembly RH
W1-3	PR-	Front seat outer belt assembly RH
W1-4	PR+	Front seat outer belt assembly RH
W1-5	PRR+	Rear seat outer belt assembly RH
W1-6	PRR-	Rear seat outer belt assembly RH
W1-9	SFR+	Front seat airbag assembly RH
W1-10	SFR-	Front seat airbag assembly RH
W1-11	CR2-	Rear curtain shield airbag assembly RH
W1-12	CR2+	Rear curtain shield airbag assembly RH
W1-25	BBR+	No. 3 side airbag sensor RH
W1-26	BBR-	No. 3 side airbag sensor RH
W1-27	BCR-	No. 1 side airbag sensor RH
W1-28	BCR+	No. 1 side airbag sensor RH
W1-29	RBR+	Rear seat inner belt assembly RH
W1-30	RBR-	Rear seat inner belt assembly RH
W1-31	RSP-	Front seat cushion spring assembly RH (seat position airbag sensor)
W1-32	RSP+	Front seat cushion spring assembly RH (seat position airbag sensor)
