EXTERIOR PANELS / TRIM  RADIATOR GRILLE(except Wagon)  REASSEMBLY

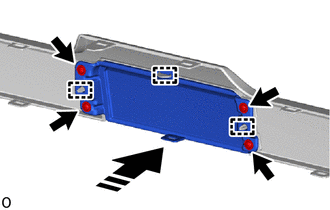

53141C 1.INSTALL RADIATOR GRILLE GARNISH (w/ Pre-collision System)

a.

0,0 0,0 false

Install in this Direction

Attach the guide and install the radiator grille garnish as shown in the illustration.

b.

Install the 4 screws.

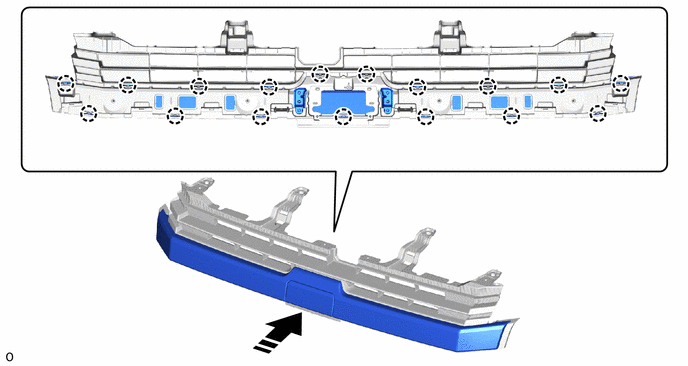

53122A 2.INSTALL LOWER RADIATOR GRILLE MOULDING

a.

Attach the claw and install the lower radiator grille moulding as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

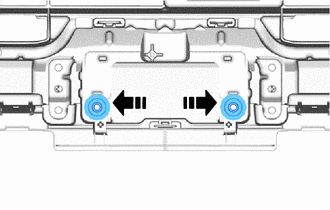

3.INSTALL NUT WITH WASHER (w/ Pre-collision System)

a.

0,0 0,0 false

Install in this Direction

Install the 2 nut with washers as shown in the illustration.

88211B 4.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)
