EXTERIOR PANELS / TRIM  RADIATOR GRILLE(except Wagon)  DISASSEMBLY

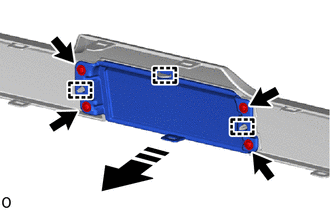

88211B 1.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

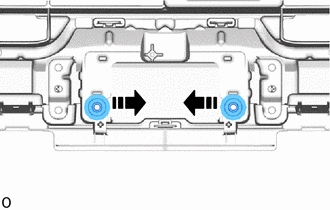

2.REMOVE NUT WITH WASHER (w/ Pre-collision System)

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 nut with washers as shown in the illustration.

53122A 3.REMOVE LOWER RADIATOR GRILLE MOULDING

a.

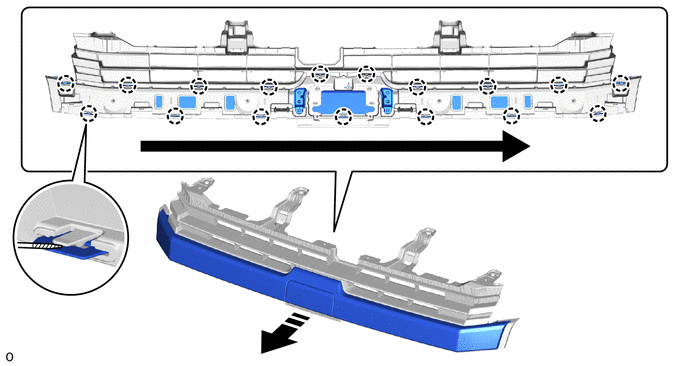

Using a screwdriver, detach the claw and remove the lower radiator grille moulding as shown in the illustration.

0,0 0,0 false

	Remove in this Direction		Order of Removal
	Protective Tape	-	-

HINT:

Tape the screwdriver tip before use.

53141C 4.REMOVE RADIATOR GRILLE GARNISH (w/ Pre-collision System)

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 screws.

b.

Detach the guide and remove the radiator grille garnish as shown in the illustration.
