AUDIO / VIDEO RADIO RECEIVER INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·A bolt without a torque specification is shown in the standard bolt chart.
PROCEDURE
86120
1.INSTALL RADIO RECEIVER ASSEMBLY (for Radio Receiver Type)
86140A
2.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)
86841
3.INSTALL NAVIGATION ECU (w/ Navigation System)
86212
4.INSTALL NO. 2 RADIO BRACKET
w/o Navigation System:
Install the No. 2 radio bracket with the 3 screws.
w/ Navigation System:
for Type A:
Install the No. 2 radio bracket with the 5 screws.
for Type B:
Install the No. 2 radio bracket with the 5 screws.
86211
5.INSTALL NO. 1 RADIO BRACKET
w/o Navigation System:
Install the No. 1 radio bracket with the 3 screws.
w/ Navigation System:
for Type A:
Install the No. 1 radio bracket with the 5 screws.
for Type B:
Install the No. 1 radio bracket with the 5 screws.
86842
6.INSTALL NO. 1 NAVIGATION WIRE (w/ Navigation System)

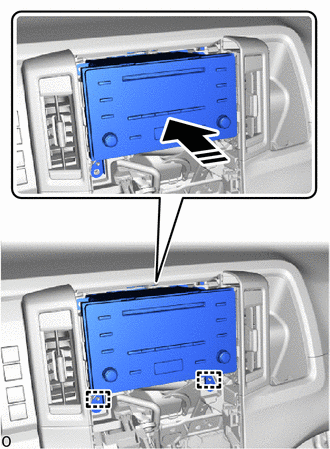

7.INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (for Radio Receiver Type)
Connect each connector.
|
Install in this Direction |
Attach the guide to install the radio receiver assembly with bracket.
Install the 2 bolts.
Install the 2 bolts.
8.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for Radio and Display Type)
Connect each connector.
|
|
Install in this Direction |
Attach the guide to install the radio and display receiver assembly with bracket.
Install the 2 bolts.
Install the 2 bolts.
9.INSTALL DISPLAY AND NAVIGATION ASSEMBLY WITH BRACKET (w/ Navigation System)
55410C
10.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
55900
11.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)
55405B
12.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)
35970F
13.INSTALL POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)
58840Q
14.INSTALL SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)
33504F
15.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
for Manual Transmission:
for Automatic Transmission:
33622
16.CONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)
