RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384890 ROOM TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING ROOM TEMPERATURE SENSOR INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 88625Q 1.INSTALL COOLER THERMISTOR (ROOM TEMPERATURE SENSOR)

a.

E415386

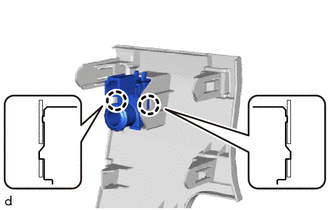

Attach the claw to install the cooler thermistor (room temperature sensor).

Hide Display 55433B 2.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0033,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0033,

Hide Display 55044C 3.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0034,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0034,

Hide Display 55641 4.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0038,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0038,

Hide Display 62112 5.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0045,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0045,

Hide Display 67914B 6.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0049,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0049,

Hide Display 67912A 7.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0050,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0050,
