EXTERIOR PANELS / TRIM FRONT DOOR BELT MOULDING INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·Use the same procedure for the RH and LH sides.
·Use the same procedure described for the LH side.
PROCEDURE
68162B
1.INSTALL FRONT DOOR OUTER GLASS WEATHERSTRIP LH
|
Install in this Direction |

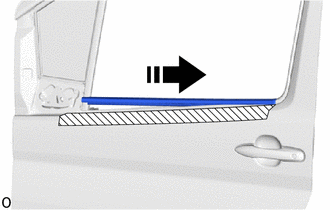

Insert the front door outer glass weatherstrip LH to the side facing the rear of the vehicle.
|
|
Install in this Direction |

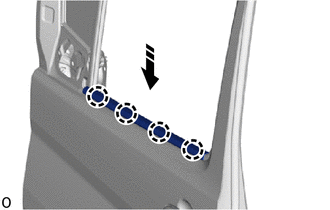

Attach the claw to install the front door outer glass weatherstrip LH as shown in the illustration.
Remove the protective tape.
2.INSTALL OUTER REAR VIEW MIRROR LH
75752C
3.INSTALL FRONT DOOR FRONT WINDOW FRAME MOULDING LH
68193C
4.INSTALL FRONT DOOR FRONT BELT SEAL LH
68172A
5.INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP LH
67602
6.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
7.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
8.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
69278B
9.INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH
86790F
10.ADJUST SIDE TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
