EXTERIOR PANELS / TRIM FRONT DOOR BELT MOULDING REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front door outer glass weatherstrip LH removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement part or procedure	Necessary procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
· Outer rear view mirror assembly LH (Including removal and installation) · Outer rear view mirror assembly RH (Including removal and installation)	Side television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
· Front television camera assembly, radiator grille assembly or front bumper assembly · Television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the LH side.

PROCEDURE

Hide Display 69278B 1.REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0006,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0006,

Hide Display 2.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0008,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0008,

Hide Display 3.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0012,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0012,

Hide Display 67602 4.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0001,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0001,

Hide Display 68172A 5.REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0026,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0026,

Hide Display 68193C 6.REMOVE FRONT DOOR FRONT BELT SEAL LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0028,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0028,

Hide Display 75752C 7.REMOVE FRONT DOOR FRONT WINDOW FRAME MOULDING LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT DOOR WINDOW FRAME MOULDING>REMOVAL201902,999999,_59,_079322,_0385755,RM100000001GNUS_01_0218,

Hide Display 8.REMOVE OUTER REAR VIEW MIRROR LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL201906,999999,_59,_079319,_0384984,RM100000001IZUT_03_0016,

Hide Display 68162B 9.REMOVE FRONT DOOR OUTER GLASS WEATHERSTRIP LH

0,0 0,0 false

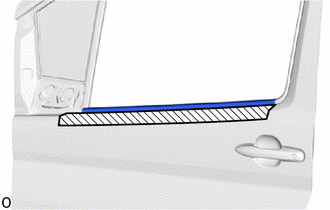

Protective Tape

Apply protective tape around the front door outer glass weatherstrip LH.

0.917,2.396 1.073,2.563 0.156,0.167 10 true 1 1.25,2.583 1.406,2.75 0.156,0.167 10 true 2 1.583,2.74 1.75,2.906 0.167,0.167 10 true 3 1.917,2.958 2.073,3.125 0.156,0.167 10 true 4

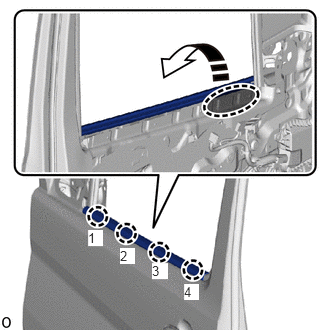

	Place Hand Here
	Remove in this Direction

Place your hands at the position shown in the illustration and detach the claw in the removal direction.

0,0 0,0 false

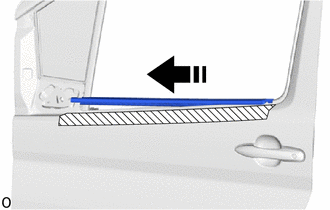

Remove in this Direction

Pull toward the front of the vehicle and remove the front door outer glass weatherstrip LH.
