RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387844 FRONT SEAT INNER BELT ASSEMBLY(for Sliding Bench Seat Type) G

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for Sliding Bench Seat Type)  INSPECTION


PROCEDURE

Hide 73230 1.INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Van, for LHD)

a.

w/o Center Seat Occupant Detection Sensor:

i.

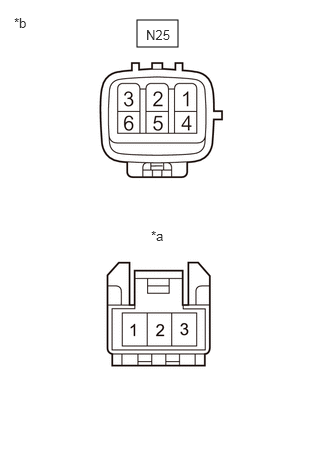

B542829C02
1.427,0.208 1.854,0.49 0.427,0.281 1.521,0.281 1.833,0.479 0.313,0.198 10 false N25 1.573,2.375 1.885,2.573 0.313,0.198 10 false *a 0.146,0.156 0.458,0.354 0.313,0.198 10 false *b
*a Connector A
*b Component without harness connected
(Front Seat Inner Belt Assembly RH)


Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

N25-6 - A-1 Always Below 1 Ω
N25-4 - A-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher




b.

w/ Center Seat Occupant Detection Sensor:

i.

Check the resistance.

Measure the resistance according to the value(s) in the table below.

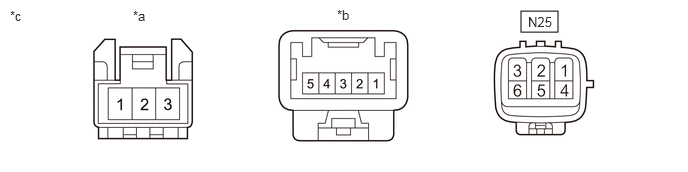

B541899C01
5.427,0.115 5.813,0.333 0.385,0.219 1.385,0.083 1.698,0.24 0.313,0.156 10 false *a 3.51,0.073 3.823,0.229 0.313,0.156 10 false *b 0.104,0.083 0.417,0.24 0.313,0.156 10 false *c 5.5,0.146 5.958,0.344 0.458,0.198 10 false N25
*a Connector A *b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly RH) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

N25-6 - A-1 Always Below 1 Ω
N25-1 - B-1
N25-3 - B-2
N25-4 - A-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher




Hide 73240 2.INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Van, for RHD)

a.

w/o Center Seat Occupant Detection Sensor:

i.
B542829C04
1.427,0.208 1.854,0.49 0.427,0.281 1.521,0.281 1.833,0.479 0.313,0.198 10 false N27 1.573,2.375 1.885,2.573 0.313,0.198 10 false *a 0.146,0.156 0.458,0.354 0.313,0.198 10 false *b
*a Connector A
*b Component without harness connected
(Front Seat Inner Belt Assembly LH)


Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

N27-6 - A-1 Always Below 1 Ω
N27-4 - A-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher




b.

w/ Center Seat Occupant Detection Sensor:

i.

Check the resistance.

Measure the resistance according to the value(s) in the table below.

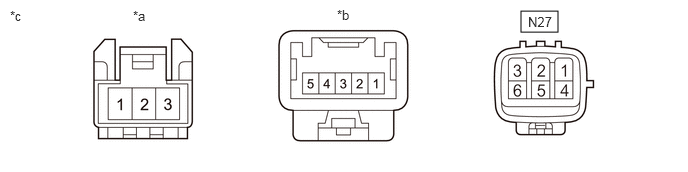

B541899C02
5.427,0.115 5.813,0.333 0.385,0.219 1.385,0.083 1.698,0.24 0.313,0.156 10 false *a 3.51,0.073 3.823,0.229 0.313,0.156 10 false *b 0.104,0.083 0.417,0.24 0.313,0.156 10 false *c 5.5,0.146 5.958,0.344 0.458,0.198 10 false N27
*a Connector A *b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly LH) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

N27-6 - A-1 Always Below 1 Ω
N27-1 - B-1
N27-3 - B-2
N27-4 - A-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher




Hide 73230 3.INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Wagon, for LHD)

a.

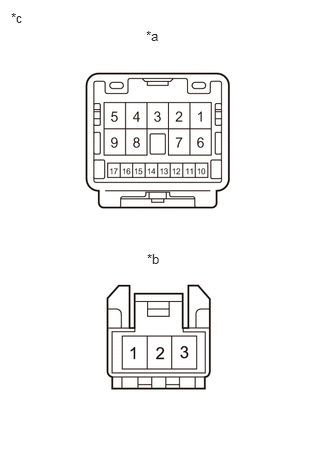

B553721C03
1.521,0.292 1.833,0.448 0.313,0.156 10 false *a 1.531,2.615 1.844,2.771 0.313,0.156 10 false *b 0.115,0.104 0.427,0.26 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly RH)


Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

A-15 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-14 - B-1 Always Below 1 Ω



Hide 73240 4.INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Wagon, for RHD)

a.
B553721C03
1.521,0.292 1.833,0.448 0.313,0.156 10 false *a 1.531,2.615 1.844,2.771 0.313,0.156 10 false *b 0.115,0.104 0.427,0.26 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly LH)


Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

A-15 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-14 - B-1 Always Below 1 Ω
