REAR CENTER SEAT OUTER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side)
G
SEAT BELT REAR CENTER SEAT OUTER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side) INSPECTION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedures listed below are for LHD vehicles.
·Use the same procedure for the RH and LH sides.
PROCEDURE
73380
1.INSPECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
a.
1.656,1.844 2.49,1.948
2.49,1.948 2.24,1.531
false
2.542,1.896 2.854,2.052
0.313,0.156
10
false
*a
2.073,0.01 2.385,0.167
0.313,0.156
10
false
*b
0.521,0.76 0.833,0.917
0.313,0.156
10
false
*c
1.188,0.354 1.5,0.51
0.313,0.156
10
false
*d

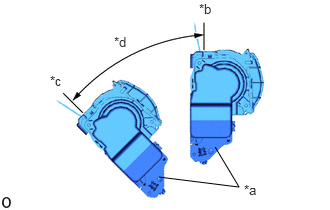

| *a | Retractor |
| *b | Unlock |
| *c | Lock |
| *d | 45° |
Before installing the rear seat 3 point type belt assembly RH, check the ELR function.
- NOTICE:
-
Do not disassemble the retractor.
i.
When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the result is not as specified, replace the rear seat 3 point type belt assembly RH.
