RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396098 HEADLIGHT ASSEMBLY(for LED Headlight) L

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for LED Headlight) PRECAUTION

NOTICE:: When disassembling the headlight assembly, use static electricity countermeasures SST (desktop anti-static mat set) and observe all precautions to prevent damage to the system by electrostatic discharge (ESD).

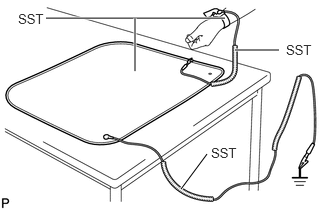

STATIC ELECTRICITY COUNTERMEASURES SST

0.479,0.188 2.344,0.188 true 1.406,0.74 1.406,0.188 true 2.906,0.521 2.448,0.521 true 1.885,1.969 2.156,1.604 true 0.188,0.115 0.646,0.313 0.458,0.198 10 false SST 2.979,0.438 3.323,0.667 0.344,0.229 10 false SST 2.198,1.51 2.542,1.74 0.344,0.229 10 false SST

SST: Desktop antistatic mat set (09890-47010)

Wristband

SST:: 09891-04020

Wristband connection wire (No. 1 grounding wire)

SST:: 09891-04030

Antistatic mat

SST:: 09891-04010

Ground connection wire (No. 2 grounding wire)

SST:: 09891-04040

PRECAUTIONS DURING REPLACEMENT

Precautions during procedures:

Before performing any procedures, touch an unpainted metal part or ground bolt of the vehicle to eliminate any static electricity.

ii.

To prevent damage to electrical equipment, disconnect the battery power supply before installing and removing electrical equipment.

iii.

Never touch the electronic parts of a printed wire board or the pins of an integrated circuit.

iv.

When performing procedures, do not allow clothing to come near or contact parts.

Wear SST (wristband) firmly on your wrist.

SST:: 09891-04020

Connect SST (No. 2 grounding wire) and SST (antistatic mat) to an appropriate grounding point in the workspace and on the work table.

SST:

09891-04040

09891-04010

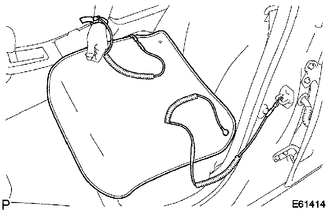

HINT:: When working inside the vehicle:; Connect SST (No. 2 grounding wire) to the unpainted metal part of a grounded bolt, etc.

Connect SST (No. 1 grounding wire), SST (wristband) and SST (antistatic mat).

SST:: 09891-04030

Always place the headlight assembly and its components on SST (antistatic mat).
