RM35X0E _51 Engine / Hybrid System _079025 7GR-FKS EMISSION CONTROL _0383277 AIR FILTER(w/ Secondary Air Injection System) A

7GR-FKS EMISSION CONTROL AIR FILTER(w/ Secondary Air Injection System) REMOVAL

PROCEDURE

Hide Display 11209 1.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0018,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0018,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0018,

Hide Display 53106B 2.REMOVE RADIATOR COVER SUB-ASSEMBLY

·

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397097,RM100000001IMU6_04_0001,

·

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (except Wagon)>REMOVAL201906,999999,_59,_079322,_0397096,RM100000001IMTX_03_0016,

Hide Display 17751 3.REMOVE NO. 1 AIR CLEANER INLET

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>REMOVAL201906,999999,_51,_079310,_0386774,RM100000001IZPV_01_0141,

Hide Display 4.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202107,_51,_078603,_0381343,RM100000001J10U_01_0060,202107,202310,_51,_078603,_0381343,RM100000001XZUP_01_0060,202310,999999,_51,_078603,_0381343,RM100000002G637_01_0060,

Hide Display 17813A 5.REMOVE PREFILTER

a.

A442976

Remove the 3 air cleaner clamps.

b.

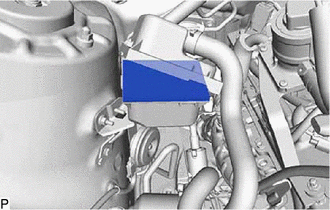

A442977

Remove the prefilter from the air filter assembly.
