7GR-FKS EMISSION CONTROL  AIR PUMP(w/ Secondary Air Injection System)  INSTALLATION


PROCEDURE

Hide 17314C 1.INSTALL AIR PUMP BRACKET

a.

Install the air pump bracket with the 2 bolts.

Torque:
6.0 N*m (61 kgf*cm, 53 in.*lbf)


b.

Attach the clamp.

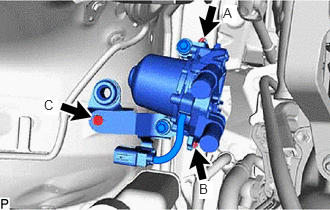

Hide 17610C 2.INSTALL AIR PUMP ASSEMBLY

a.
A442925E01
2.323,0.052 2.469,0.24 0.146,0.188 10 true A 2.073,1.885 2.219,2.073 0.146,0.188 10 true B 0.458,1.01 0.604,1.198 0.146,0.188 10 true C

Install the air pump assembly with the 3 bolts.

Torque:
6.0 N*m (61 kgf*cm, 53 in.*lbf)

NOTICE:

Temporarily install the bolt (A), and then install the 3 bolts in the order of (B), (A) and (C).



b.
A437959C03
0.813,1.833 1.042,2.083 0.229,0.25 10 false *a 0.208,2.365 0.458,2.542 0.25,0.177 10 false *b 0.625,3.156 0.854,3.365 0.229,0.208 10 false *c 2.26,3.99 2.49,4.198 0.229,0.208 10 false *c 1.906,3.229 2.156,3.406 0.25,0.177 10 false *b 2.5,2.688 2.729,2.938 0.229,0.25 10 false *a

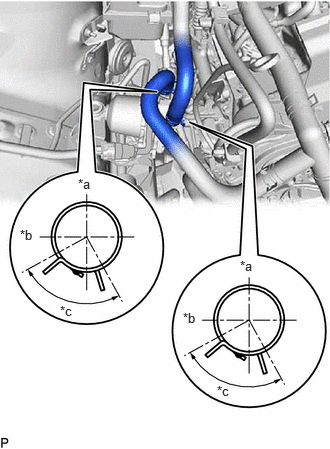

*a Right of Vehicle
*b Front of Vehicle
*c 90° (Claw of Clip Location)


Connect the No. 5 air hose and No. 6 air injection system hose to the air pump assembly and slide the 2 clips to secure it.


c.

Connect the air pump assembly connector.
