7GR-FKS EMISSION CONTROL  AIR PUMP(w/ Secondary Air Injection System)  REMOVAL

11209 1.REMOVE V-BANK COVER SUB-ASSEMBLY (w/ Cover)

53106B 2.REMOVE RADIATOR COVER SUB-ASSEMBLY

17751 3.REMOVE NO.1 AIR CLEANER INLET

4.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

17610C 5.REMOVE AIR PUMP ASSEMBLY

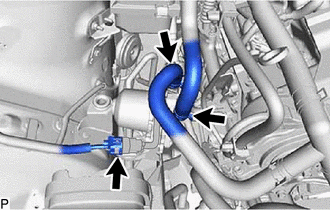

a.

Disconnect the air pump assembly connector.

b.

Slide the 2 clips and disconnect the No. 5 air hose and No. 6 air injection system hose from the air pump assembly.

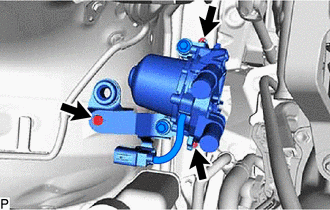

c.

Remove the 3 bolts and air pump assembly.

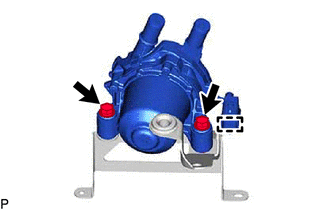

17314C 6.REMOVE AIR PUMP BRACKET

a.

Detach the clamp.

b.

Remove the 2 bolts and air pump bracket.
