RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387848 FRONT SEAT INNER BELT ASSEMBLY(for Separate Seat Type) G

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for Separate Seat Type)  INSPECTION


PROCEDURE

Hide 73240 1.INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

a.

except Wagon:

i.

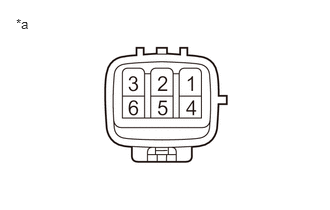

B542828C03
0.167,0.167 0.479,0.365 0.313,0.198 10 false *a
*a Component without harness connected
(Front Seat Inner Belt Assembly LH)


w/o Sub Wire Harness:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

4 - 3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher



ii.
B552145C04
0.156,0.188 0.469,0.385 0.313,0.198 10 false *a
*a Component without harness connected
(Front Seat Inner Belt Assembly LH)


w/ Sub Wire Harness:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

4 - 3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher




b.

for Wagon:

i.

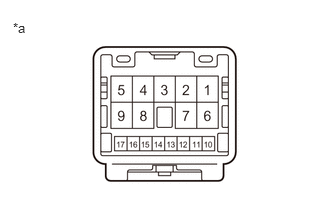

B552160C02
0.135,0.208 0.448,0.406 0.313,0.198 10 false *a
*a Component without harness connected
(Front Seat Inner Belt Assembly LH)


w/o Sub Wire Harness:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

14 - 15 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher



ii.
B552145C03
0.271,0.198 0.583,0.354 0.313,0.156 10 false *a
*a Component without harness connected
(Front Seat Inner Belt Assembly LH)


w/ Sub Wire Harness:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly LH.

4 - 3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher




Hide 73230 2.INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

a.

except Wagon:

i.

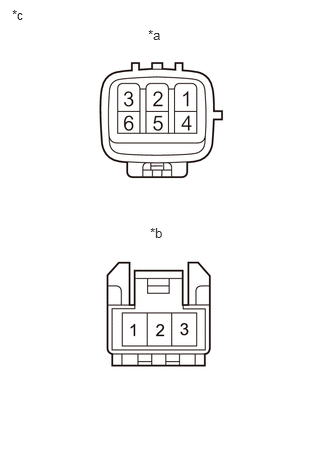

B542829C05
1.542,0.281 1.854,0.438 0.313,0.156 10 false *a 1.563,2.344 1.875,2.5 0.313,0.156 10 false *b 0.125,0.073 0.438,0.229 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly RH)


w/o Front Seat Side Airbag:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

A-4 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-6 - B-1 Always Below 1 Ω



ii.

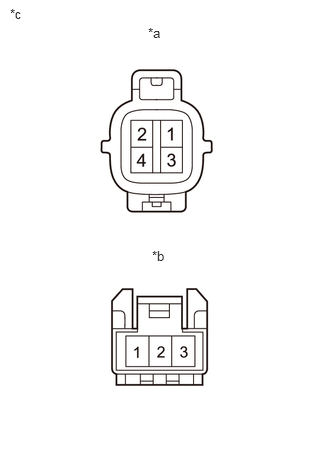

B542830C02
1.542,0.26 1.854,0.417 0.313,0.156 10 false *a 1.583,2.583 1.896,2.74 0.313,0.156 10 false *b 0.104,0.063 0.417,0.219 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly RH)


w/ Front Seat Side Airbag:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

A-3 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-4 - B-1 Always Below 1 Ω




b.

for Wagon:

i.

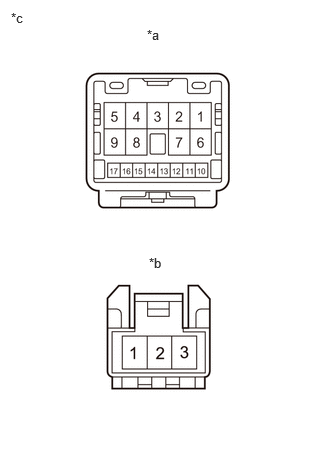

B553721C05
1.531,0.281 1.844,0.438 0.313,0.156 10 false *a 1.552,2.656 1.865,2.813 0.313,0.156 10 false *b 0.115,0.104 0.427,0.26 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly RH)


w/o Front Seat Side Airbag:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

A-15 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-14 - B-1 Always Below 1 Ω



ii.

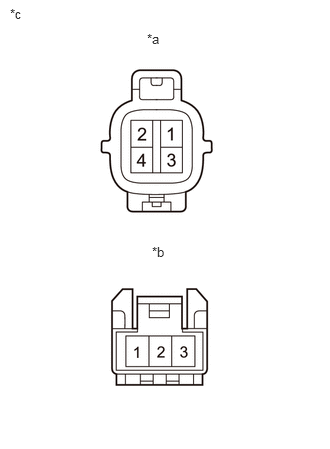

B542830C03
1.531,0.323 1.74,0.51 0.208,0.188 10 false *a 1.583,2.542 1.896,2.698 0.313,0.156 10 false *b 0.104,0.063 0.417,0.219 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Front Seat Inner Belt Assembly RH)


w/ Front Seat Side Airbag:

Check the resistance.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the front seat inner belt assembly RH.

A-3 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-4 - B-1 Always Below 1 Ω
