LIGHTING (INT)  STEP LIGHT ASSEMBLY  INSPECTION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81380H 1.INSPECT STEP LIGHT ASSEMBLY

a.
E417775C01
0.958,1.635 1.865,1.271 true 2.146,1.271 2.833,1.531 true 0.063,0.083 0.323,0.302 0.26,0.219 10 false *a 2.885,1.458 3.042,1.656 0.156,0.198 10 false + 0.75,1.542 0.906,1.74 0.156,0.198 10 false -

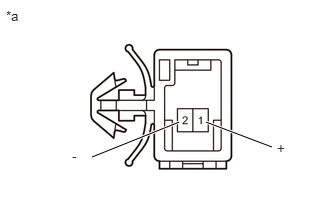

*a Component without harness connected
(Step Light Assembly)


Apply battery voltage to the connector and check the light illumination condition.

OK:
Measurement Condition Specified Condition
Battery positive (+) → 1 (+)
Battery negative (-) → 2 (-) 		Illuminates


If the result is not as specified, replace the step light assembly.
