Vehicle Interior
_078381
LIGHTING (INT)
_0399284
STEP LIGHT ASSEMBLY
A
LIGHTING (INT) STEP LIGHT ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81380H
1.REMOVE STEP LIGHT ASSEMBLY
a.
1.896,1.427 2.688,1.427
true
2.76,1.302 3.042,1.51
0.281,0.208
10
false
*a
| *a | Protective Tape |

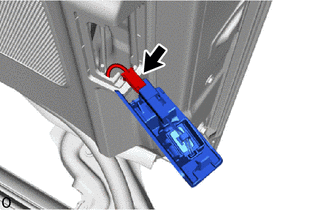

Using a thin-bladed screwdriver, detach the claw and remove the step light assembly.
- HINT:
-
Tape the thin-bladed screwdriver tip before use.
b.
Disconnect the connector.
