RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384405 SIDE TURN SIGNAL LIGHT ASSEMBLY(for Outer Rear View Mirror) A

LIGHTING (EXT)  SIDE TURN SIGNAL LIGHT ASSEMBLY(for Outer Rear View Mirror)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 81740 1.INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY LH

a.
E413217

Connect the connector.


b.

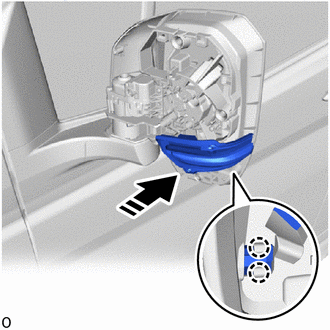

E413216C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the side turn signal light assembly LH.


c.

Install the cover body.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REASSEMBLY
