SEAT  REAR SEAT ASSEMBLY(for Manual Captain Seat)  REASSEMBLY

Install the rear seat cushion cover LH with the 2 clips.

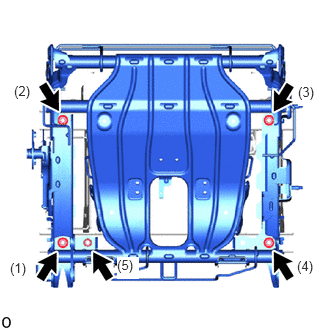

0.104,2.708 0.333,2.938 0.229,0.229 10 true (1) 0.146,0.865 0.375,1.094 0.229,0.229 10 true (2) 3.104,0.875 3.333,1.104 0.229,0.229 10 true (3) 3.094,2.688 3.323,2.917 0.229,0.229 10 true (4) 1.219,2.677 1.448,2.906 0.229,0.229 10 true (5)

Temporarily install the No. 1 seat cushion frame sub-assembly LH with the 5 nuts in the order shown in the illustration.

for First Row:

i.

0.25,1.188 0.333,0.531 true 1.865,1.375 1.948,0.719 true 0.156,1.198 0.354,1.406 0.198,0.208 10 false *a 1.76,1.375 1.958,1.583 0.198,0.208 10 true *a

*a

Cable End

Attach the cable clamp and cable end and instal the No. 1 seat slide cable assembly LH as shown in the illustration.

HINT:

Install at the middle level of the cable clamp (triple level) side.

for Second Row:

i.

0.365,1.656 0.438,0.792 0.438,0.792 0.865,0.792 true 0.375,2.594 0.302,3.167 true 0.208,3.188 0.521,3.344 0.313,0.156 10 false *a 0.875,0.698 1.083,0.885 0.208,0.188 10 false *a

*a

Cable End

Attach the cable clamp and cable end and instal the No. 1 seat slide cable assembly LH as shown in the illustration.

HINT:

Install at the middle level of the cable clamp (triple level) side.

for First Row:

i.

2.208,0.698 2.917,0.583 true 2.927,0.469 3.115,0.667 0.188,0.198 10 true *a

*a

Cable End

Attach the cable clamp and cable end and install the No. 1 seat walk-in cable assembly LH as shown in the illustration.

HINT:

Install at the middle level of the cable clamp (triple level) side.

for Second Row:

i.

1.469,1.719 1.771,1.615 true 1.771,1.49 1.958,1.677 0.188,0.188 10 true *a

*a

Cable End

Attach the cable clamp and cable end and install the No. 1 seat walk-in cable assembly LH as shown in the illustration.

HINT:

Install at the middle level of the cable clamp (triple level) side.

for First Row:

i.

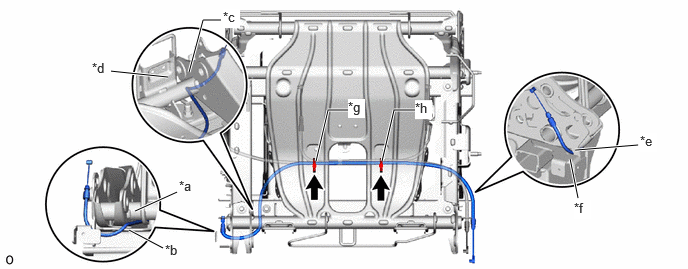

Install the No. 1 seat reclining adjusting cable assembly LH with 2 new cable ties as shown in the illustration.

1.406,2.198 1.844,2 true 1.344,2.396 1.698,2.583 true 1.969,0.75 2.115,0.208 2.115,0.208 2.302,0.208 true 1.156,0.74 1.75,0.802 true 5.99,1.563 6.646,1.51 true 5.938,1.656 6.021,2.063 true 3.979,1.677 4.104,1.146 4.104,1.146 4.323,1.146 true 3.292,1.677 3.417,1.146 3.417,1.146 3.635,1.146 true 1.865,1.854 2.177,2.052 0.313,0.198 10 false *a 1.719,2.521 2.031,2.719 0.313,0.198 10 false *b 2.323,0.094 2.5,0.292 0.177,0.198 10 true *c 0.958,0.625 1.135,0.833 0.177,0.208 10 false *d 6.667,1.385 6.844,1.583 0.177,0.198 10 true *e 5.979,2.083 6.156,2.281 0.177,0.198 10 true *f 4.323,1.042 4.5,1.24 0.177,0.198 10 true *h 3.625,1.031 3.802,1.229 0.177,0.198 10 true *g

*a	Pipe	*b	Frame Wire
*c	Cushion Side Frame	*d	Rear Bracket
*e	Bracket A	*f	Bracket B
*g	Location Tape (White)	*h	Location Tape (Pink)

NOTICE:

·

Pass the No. 1 seat reclining adjusting cable assembly LH between the pipe and frame wire as shown in the illustartion.

·

Pass the No. 1 seat reclining adjusting cable assembly LH between the cushion side frame and rear bracket as shown in the illustartion.

·

Pass the No. 1 seat reclining adjusting cable assembly LH between the bracket A and bracket B as shown in the illustartion.

ii.

2.195,2.233 2.35,2.414 0.155,0.182 10 *b 0.981,3.981 1.13,4.163 0.149,0.182 10 *c 2.244,3.981 2.402,4.163 0.158,0.182 10 *d 2.288,1.307 2.444,1.463 0.156,0.156 10 *a

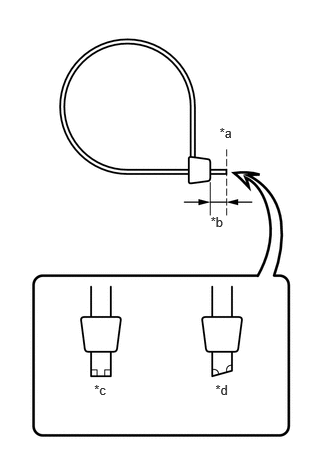

*a	Cut Here
*b	5 mm (0.197 in.) to 10 mm (0.394 in.)
*c	Correct
*d	Incorrect

Cut off the end of the cable tie as shown in the illustration.

HINT:

Make sure that the end of the cable tie faces below.

for Second Row:

i.

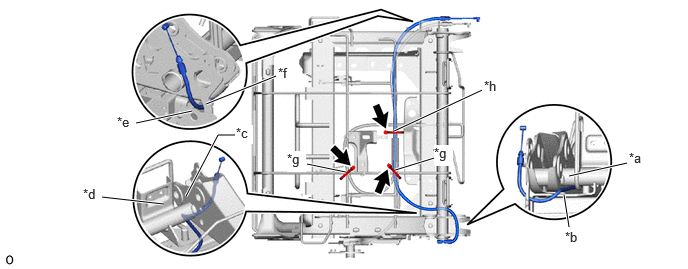

Install the No. 1 seat reclining adjusting cable assembly LH with 3 new cable ties as shown in the illustration.

5.927,1.833 6.531,1.698 true 5.875,2.031 5.927,2.365 true 1.708,2.125 1.063,2.052 true 1.938,2.042 2.271,1.406 2.271,1.406 2.448,1.406 true 2,1.156 1.417,1.281 true 2.875,0.792 2.146,1.083 true 5.021,0.938 4.104,1.365 true 4.521,1.646 4.115,1.771 true 3.604,1.792 3.198,1.708 true 6.552,1.563 6.865,1.719 0.313,0.156 10 false *a 5.885,2.385 6.198,2.542 0.313,0.156 10 false *b 2.458,1.302 2.635,1.5 0.177,0.198 10 true *c 0.865,1.938 1.042,2.135 0.177,0.198 10 false *d 1.219,1.188 1.396,1.396 0.177,0.208 10 false *e 2.896,0.677 3.052,0.865 0.156,0.188 10 true *f 4.521,1.51 4.719,1.729 0.198,0.219 10 true *g 5.042,0.813 5.354,0.969 0.313,0.156 10 false *h 2.99,1.573 3.188,1.792 0.198,0.219 10 true *g

*a	Pipe	*b	Frame Wire
*c	Cushion Side Frame	*d	Rear Bracket
*e	Bracket A	*f	Bracket B
*g	Location Tape (White)	*h	Location Tape (Yellow)

NOTICE:

·

Pass the No. 1 seat reclining adjusting cable assembly LH between the pipe and frame wire as shown in the illustartion.

·

Pass the No. 1 seat reclining adjusting cable assembly LH between the cushion side frame and rear bracket as shown in the illustartion.

·

Pass the No. 1 seat reclining adjusting cable assembly LH between the bracket A and bracket B as shown in the illustartion.

ii.

2.195,2.233 2.35,2.414 0.155,0.182 10 *b 0.981,3.981 1.13,4.163 0.149,0.182 10 *c 2.244,3.981 2.402,4.163 0.158,0.182 10 *d 2.288,1.307 2.444,1.463 0.156,0.156 10 *a

*a	Cut Here
*b	5 mm (0.197 in.) to 10 mm (0.394 in.)
*c	Correct
*d	Incorrect

Cut off the end of the cable tie as shown in the illustration.

HINT:

Make sure that the end of the cable tie faces below.

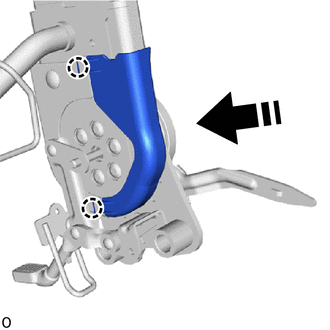

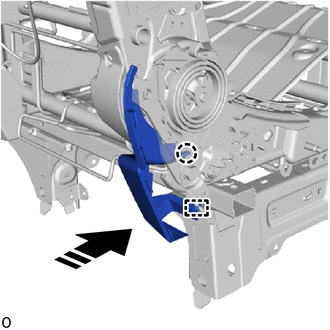

Install the LH seatback reclining adjuster inside cover RH with the clip.

0,0 0,0 false

Install in this Direction

Attach the claw and install the LH seatback reclining adjuster inside cover LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

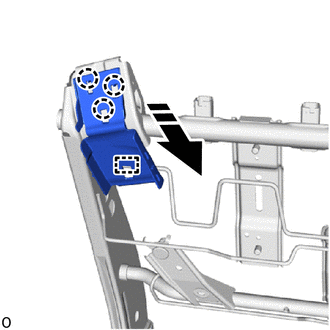

Attach the guide and install the rear No. 1 seat reclining adjuster inside cover RH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

for First Row:

i.

0,0 0,0 false

Install in this Direction

Attach the hook as shown in the illustration.

for Second Row:

i.

0,0 0,0 false

Install in this Direction

Attach the hook as shown in the illustration.

for First Row:

i.

0,0 0,0 false

Install in this Direction

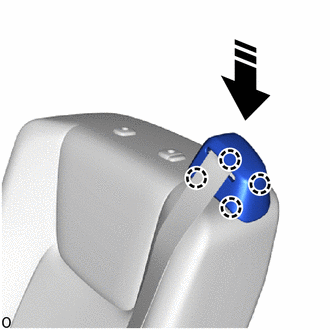

Attach the claw and install the No. 1 seat No. 2 shoulder belt cover LH as shown in the illustration.

for Second Row:

i.

0,0 0,0 false

Install in this Direction

Attach the claw and install the No. 1 seat No. 2 shoulder belt cover LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

Install the No. 1 seatback spring damper LH with the 2 nuts.

Torque:

14.5 N*m (148 kgf*cm, 11 ft.*lbf)

1.073,1.615 1.448,1.615 true 2.656,1.781 3.031,1.781 true 0.698,2.125 0.438,2.125 true 0.656,0.156 1.406,0.156 1.406,0.156 1.406,0.271 true 0.979,0.323 0.979,0.156 true 1.135,2.354 1.51,2.354 true 1.448,1.51 1.635,1.698 0.188,0.188 10 true *a 0.229,2.021 0.417,2.229 0.188,0.208 10 false *b 3.052,1.667 3.24,1.875 0.188,0.208 10 false *b 0.458,0.052 0.646,0.26 0.188,0.208 10 false *b 1.521,2.25 1.708,2.438 0.188,0.188 10 true *a

*a	Hook
*b	Guide
	Fastening Tape

Attach the guide and hook.

0,0 0,0 false

	Bolt A
	Bolt B

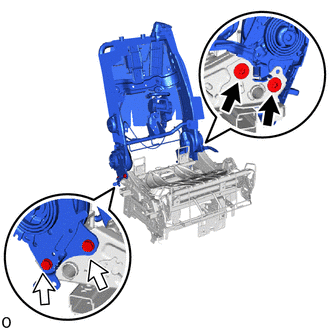

Temporarily install the No. 1 seatback frame sub-assembly LH with the 2 bolts A and 2 bolts B.

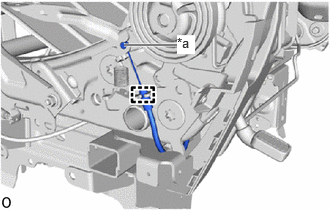

0.531,2.01 0.521,1.427 true 0.406,2.01 0.76,2.01 0.76,2.01 0.76,1.615 true 0.219,1.896 0.406,2.094 0.188,0.198 10 true *a

*a

Cable End

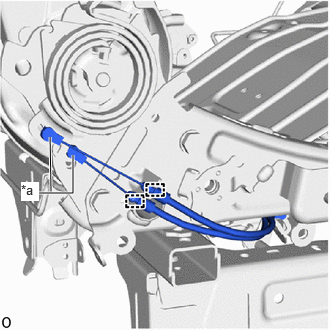

Attach the cable clamp and cable end.

1.292,0.469 1.844,0.469 true 1.844,0.365 2.031,0.563 0.188,0.198 10 true *a

*a

Cable End

Attach the cable clamp and cable end.

Install the No. 1 seat inner reclining protector LH with the 2 clips.

0,0 0,0 false

Install in this Direction

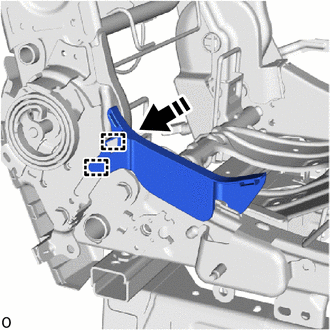

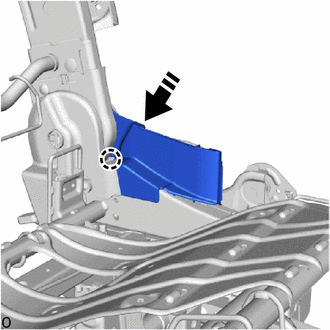

Attach the claw and guide and install the LH seat rear No. 1 reclining adjuster inside cover LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

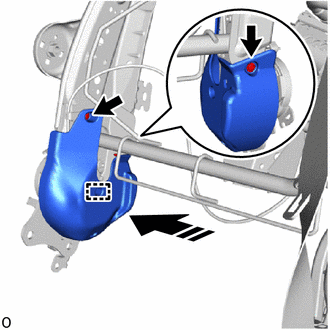

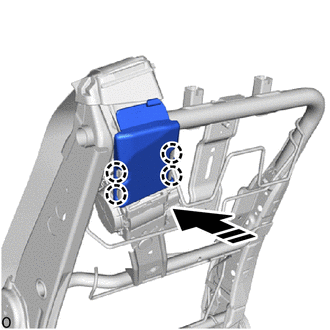

Attach the guide and install the LH seat reclining adjuster inside cover RH as shown in the illustration.

0,0 0,0 false

Install in this Direction

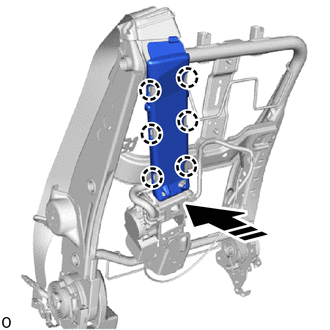

Attach the claw and install the LH seat reclining adjuster inside cover LH as shown in the illustration.

1.708,1.781 1.708,1.375 true 1.708,2.625 1.708,2.219 true 2.979,1.302 2.479,1.427 true 0.958,1.417 0.417,1.26 true 1.667,1.802 1.823,2 0.156,0.198 10 true A 1.677,2.656 1.833,2.854 0.156,0.198 10 true B 3.021,1.188 3.177,1.385 0.156,0.198 10 true C 0.24,1.146 0.396,1.344 0.156,0.198 10 true C

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the Precaution section before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

Dimensions:

A	240 mm (9.45 in.)
B	310 mm (1.02 ft.)
C	370 mm (1.21 ft.)

HINT:

The dimensions shown in the illustration are the length.

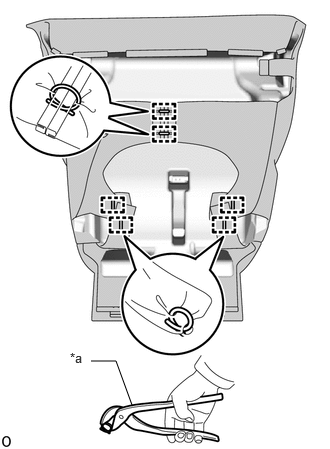

1.698,4.042 1.844,3.323 1.844,3.323 2.031,3.323 false 2.052,3.219 2.365,3.375 0.313,0.156 10 false *a 1.208,1.271 1.417,1.469 0.208,0.198 10 true (1) 2.104,1.271 2.313,1.469 0.208,0.198 10 true (2) 1.656,2.104 1.865,2.302 0.208,0.198 10 true (3) 1.104,2.104 1.313,2.302 0.208,0.198 10 true (4) 2.208,2.104 2.417,2.302 0.208,0.198 10 true (5) 0.583,1.177 0.792,1.375 0.208,0.198 10 true (6) 0.604,0.792 0.813,0.99 0.208,0.198 10 true (7) 0.615,0.417 0.823,0.615 0.208,0.198 10 true (8) 0.51,1.74 0.719,1.938 0.208,0.198 10 true (9) 0.354,2.146 0.635,2.354 0.281,0.208 10 true (10) 2.688,1.177 2.969,1.385 0.281,0.208 10 true (11) 2.656,0.792 2.938,1 0.281,0.208 10 true (12) 2.656,0.417 2.938,0.625 0.281,0.208 10 true (13) 2.76,1.75 3.042,1.958 0.281,0.208 10 true (14) 2.844,2.156 3.125,2.365 0.281,0.208 10 true (15)

*a	Hog Ring Pliers

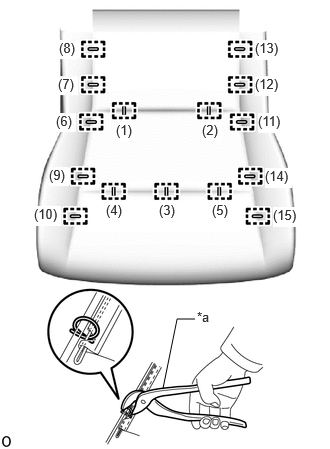

Using hog ring pliers, install the No. 1 seat cushion cover sub-assembly LH with 15 new hog rings in the order shown in the illustration.

NOTICE:

·

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly LH.

1.375,4.219 1.208,3.76 1.208,3.76 0.948,3.76 false 0.729,3.646 0.927,3.844 0.198,0.198 10 false *a

*a	Hog Ring Pliers

Using hog ring pliers, install 6 new hog rings.

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.

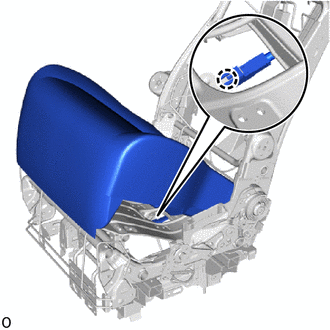

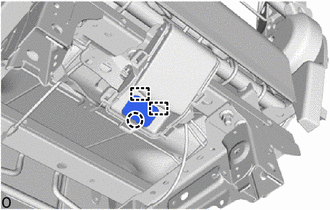

Attach the claw and install the connector of the occupant detection sensor.

Attach the hook and clip.

3.125,1.573 3.469,2.156 3.469,2.156 3.75,1.573 true 1.719,1.813 1.958,2.031 0.24,0.219 12 true *A 3.365,2.177 3.625,2.396 0.26,0.219 12 true *B 4.74,1.823 4.979,2.042 0.24,0.219 12 true *A

*A

for First Row

*B

for Second Row

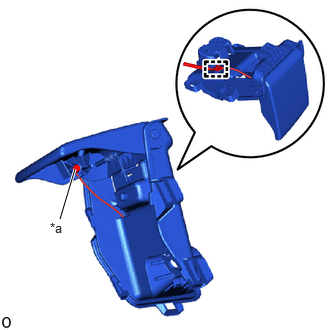

0.625,2.281 0.781,1.76 true 0.521,2.292 0.833,2.448 0.313,0.156 10 false *a

*a

Cable End

Attach the cable clamp and cable end.

0,0 0,0 false

Install in this Direction

Attach the hook as shown in the illustration.

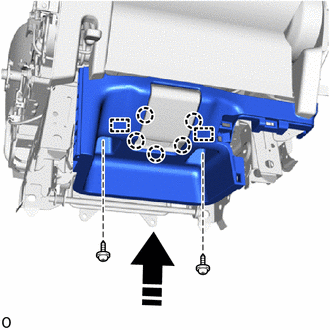

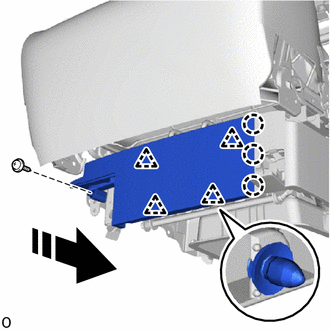

Attach the claw and guide and install the No. 2 seat stand frame cap RH.

w/o Power Supply Unit:

i.

0,0 0,0 false

Install in this Direction

Attach the claw and guide as shown in the illustration.

w/ Power Supply Unit:

i.

0,0 0,0 false

Install in this Direction

Attach the claw and guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

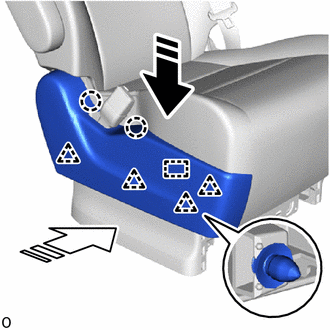

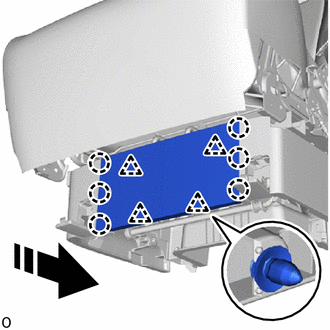

Attach the clip, claw and guide as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

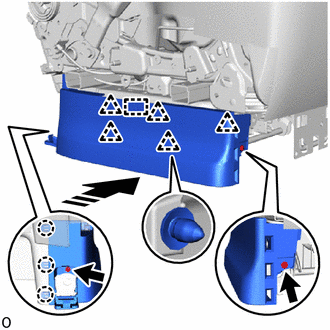

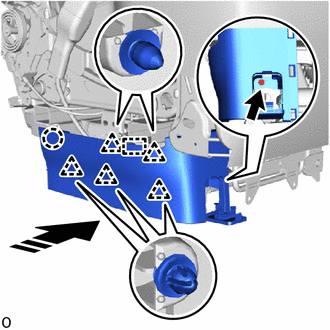

Attach the clip, claw and guide in the installation direction (1) as shown in the illustration.

w/o Power Supply Unit:

i.

0,0 0,0 false

Install in this Direction

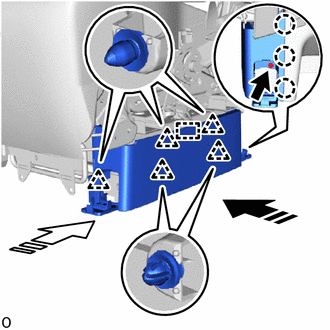

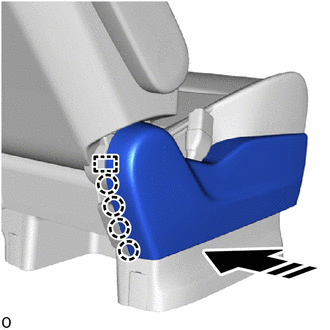

Attach the clip and claw and install the No. 2 seat No. 1 leg cover LH as shown in the illustration.

w/ Power Supply Unit:

i.

0,0 0,0 false

Install in this Direction

Attach the clip and claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the clip, claw and guide as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the clip, claw and guide as shown in the illustration.

0.917,1.375 0.917,0.938 true 1.813,0.542 1.292,0.635 true 0.906,0.573 0.563,0.635 true 1.833,1.115 1.313,1.208 true 0.865,1.74 0.479,1.573 true 2.208,3.125 2.208,2.563 2.208,2.563 2.448,2.563 true 0.875,1.396 1.031,1.594 0.156,0.198 10 false A 1.844,0.448 2,0.646 0.156,0.198 10 false B 0.938,0.479 1.094,0.677 0.156,0.198 10 false B 1.865,1.021 2.021,1.219 0.156,0.198 10 false C 0.896,1.688 1.052,1.885 0.156,0.198 10 false C 2.479,2.469 2.635,2.667 0.156,0.198 10 false C

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the Precaution section before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

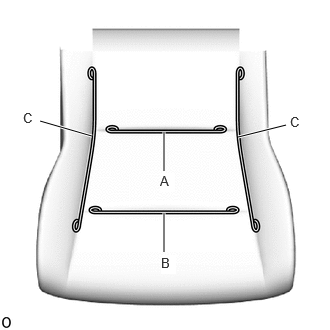

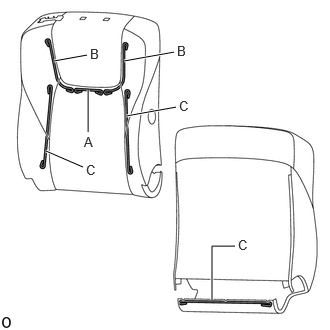

Dimensions:

A	90 mm (3.54 in.)
B	200 mm (7.87 in.)
C	300 mm (11.8 in.)

HINT:

The dimensions shown in the illustration are the length.

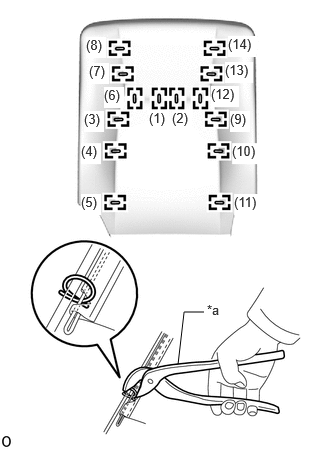

1.854,3.792 1.917,3.25 1.917,3.25 2.125,3.25 false 2.156,3.146 2.469,3.302 0.313,0.156 10 false *a 1.552,1.146 1.76,1.365 0.208,0.219 10 true (1) 1.792,1.146 2,1.365 0.208,0.219 10 true (2) 0.875,1.156 1.083,1.375 0.208,0.219 10 true (3) 0.844,1.49 1.052,1.708 0.208,0.219 10 true (4) 0.844,2.021 1.052,2.24 0.208,0.219 10 true (5) 1.083,0.906 1.292,1.125 0.208,0.219 10 true (6) 0.927,0.656 1.135,0.875 0.208,0.219 10 true (7) 0.896,0.385 1.104,0.604 0.208,0.219 10 true (8) 2.396,1.156 2.604,1.375 0.208,0.219 10 true (9) 2.417,1.49 2.708,1.708 0.292,0.219 10 true (10) 2.438,2.021 2.729,2.24 0.292,0.219 10 true (11) 2.198,0.896 2.49,1.115 0.292,0.219 10 true (12) 2.344,0.646 2.635,0.865 0.292,0.219 10 true (13) 2.375,0.375 2.667,0.594 0.292,0.219 10 true (14)

*a	Hog Ring Pliers

Using hog ring pliers, install the No. 1 seatback cover sub-assembly LH with 14 new hog rings in the order shown in the illustration.

NOTICE:

·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.

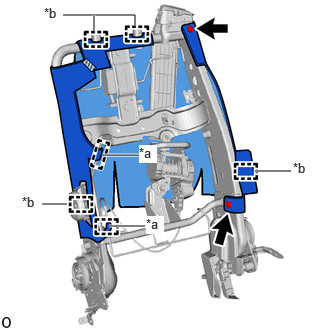

0.844,2.271 0.625,1.188 0.625,1.188 0.396,1.188 true 2.958,1.917 2.427,1.917 2.427,1.917 2.427,1.385 true 2.677,1.917 2.677,1.323 true 2.979,1.813 3.292,1.969 0.313,0.156 10 false *a 0.198,1.083 0.375,1.271 0.177,0.188 10 false *b

*a	Hook
*b	Guide

Attach the guide and install the separate type rear seatback cover with pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover with pad.

Attach the claw and install the 2 front seat headrest supports.

Attach the hook.

Close the 2 fasteners.

1.875,3.719 1.938,3 1.938,3 2.146,3 false 2.167,2.896 2.479,3.052 0.313,0.156 10 false *a

*a	Hog Ring Pliers

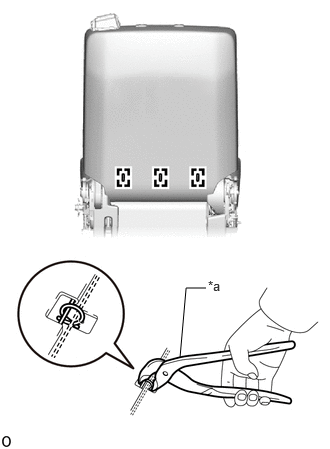

Using hog ring pliers, install 3 new hog rings.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

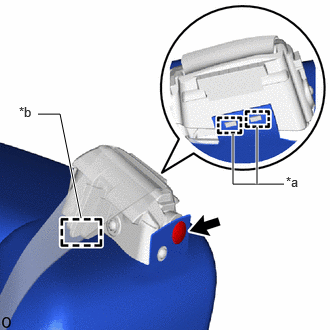

0.635,1.083 1.521,1.135 true 0.438,0.969 0.615,1.167 0.177,0.198 10 false *a

*a

Slit

Pass the belt through the slit.

0,0 0,0 false

Install in this Direction

Attach the claw and install the rear seat shoulder belt cover LH as shown in the illustration.

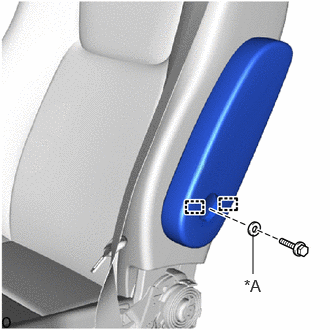

2.635,2.854 2.635,2.438 false 2.542,2.875 2.823,3.125 0.281,0.25 12 false *A

*A	for Second Row

Attach the guide.

0,0 0,0 false

Install in this Direction

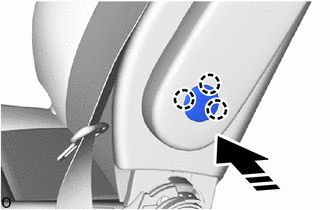

Attach the claw and install the No. 1 seat armrest cap LH as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Attach the guide in the installation direction (1) as shown in the illustration.

0,0 0,0 false

Install in this Direction

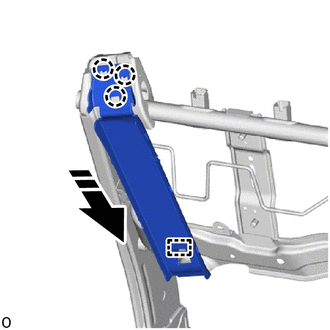

Attach the claw and guide and install the No. 1 seat inner cushion moulding RH as shown in the illustration.

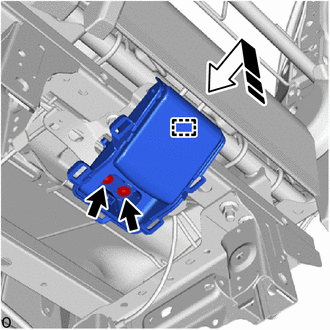

Install the No. 1 seat side table assembly with the 2 nuts.

Torque:

14.5 N*m (148 kgf*cm, 11 ft.*lbf)

Attach the claw and guide.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Attach the claw and guide in the installation direction (1) as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the claw and guide as shown in the illustration.

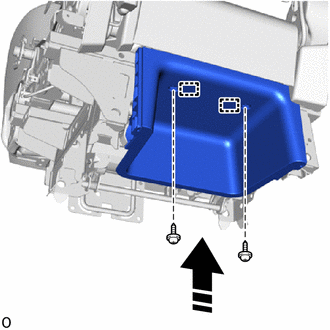

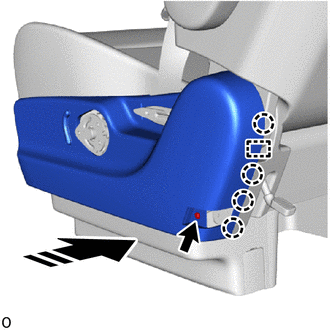

Install the No. 1 seat cushion LH with the screw.

0,0 0,0 false

Install in this Direction

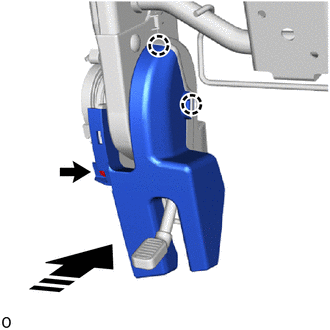

Attach the claw and install the No. 1 seat reclining adjuster release handle LH while lifting it up as shown in the illustration.

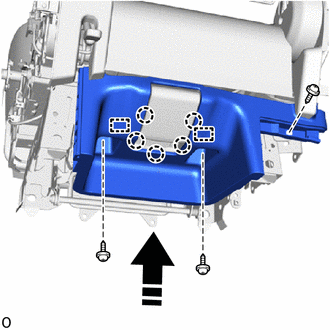

Install the No. 1 seat track handle control lever LH with the 3 screws.

0,0 0,0 false

Install in this Direction

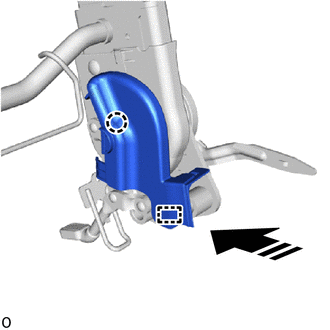

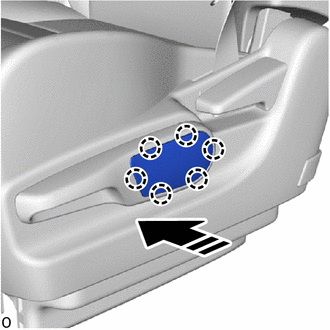

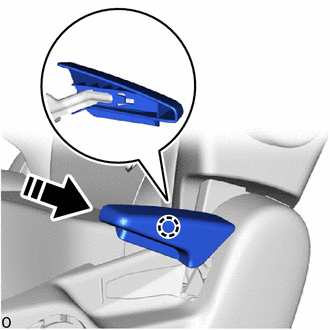

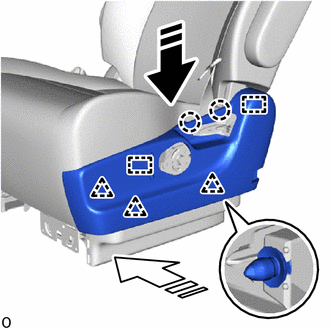

Attach the claw and install the No. 1 seat adjuster cover cap LH as shown in the illustration.
