RM35X0E _58 Vehicle Interior _078601 SEAT _0396327 REAR SEAT ASSEMBLY(for Manual Captain Seat) A

SEAT  REAR SEAT ASSEMBLY(for Manual Captain Seat)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row, unless otherwise specified.



PROCEDURE

Hide 71849L 1.REMOVE NO. 1 SEAT ADJUSTER COVER CAP LH

a.

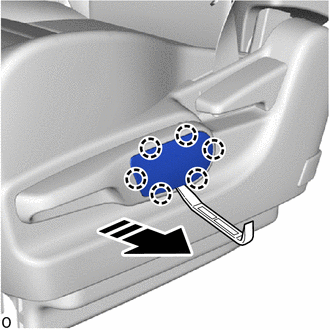

B548255C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the No. 1 seat adjuster cover cap LH as shown in the illustration.


Hide 72216B 2.REMOVE NO. 1 SEAT TRACK HANDLE CONTROL LEVER LH

a.

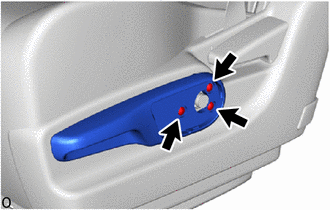

B548257

Remove the 3 screws and No. 1 seat track handle control lever LH.


Hide 72526J 3.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

a.

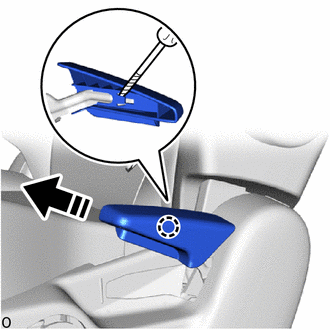

B548258C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 1 seat reclining adjuster release handle LH while lifting it up as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71324Q 4.REMOVE NO. 1 SEAT CUSHION LH (for First Row)

a.

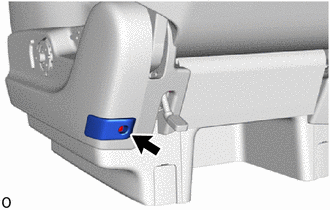

B548260

Remove the screw and No. 1 seat cushion LH.


Hide 71834J 5.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

a.

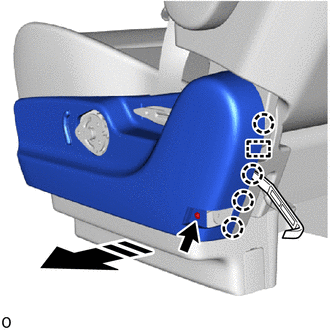

B548261C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Using moulding remover A, detach the claw and guide as shown in the illustration.


c.

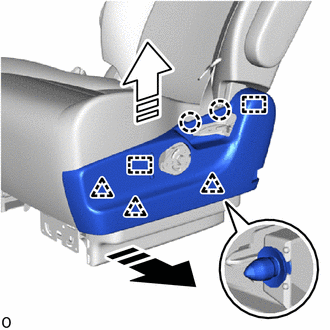

B562779C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Detach the clip in the removal direction (1) as shown in the illustration.


d.

Detach the claw and guide in the removal direction (2) as shown in the illustration and remove the No. 1 seat outer No. 1 reclining cover LH.


Hide 71849K 6.REMOVE SEAT SIDE TABLE ADJUSTER COVER CAP (for First Row, RH Side)

a.

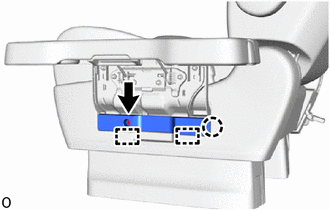

B548265

Remove the screw.


b.

Detach the claw and guide and remove the seat side table adjuster cover cap.


Hide 78060C 7.REMOVE NO. 1 SEAT SIDE TABLE ASSEMBLY (for First Row, RH Side)

a.

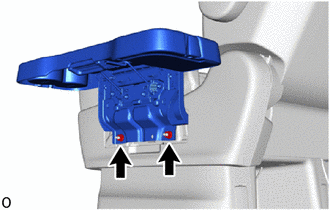

B548266

Remove the 2 nuts and No. 1 seat side table assembly.


Hide 71826A 8.REMOVE NO. 1 SEAT INNER CUSHION MOULDING RH

a.

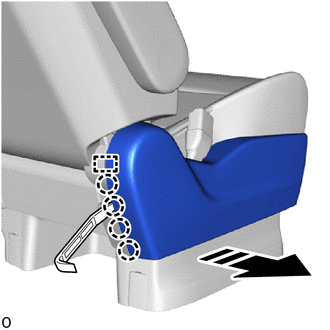

B548267C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide as shown in the illustration.


b.

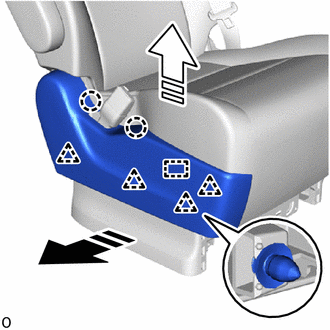

B548269C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Detach the clip and claw in the removal direction (1) as shown in the illustration.


c.

Detach the guide in the removal direction (2) as shown in the illustration and remove the No. 1 seat inner cushion moulding RH.


Hide 72848D 9.REMOVE NO. 1 SEAT NO. 1 ARMREST CAP LH

HINT:

Use the same procedure for the other side.


a.

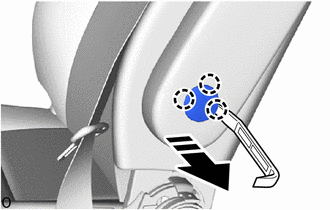

B548271C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the No. 1 seat No. 1 armrest cap as shown in the illustration.


Hide 72890C 10.REMOVE LH SEAT NO. 1 SEAT ARMREST ASSEMBLY LH

a.

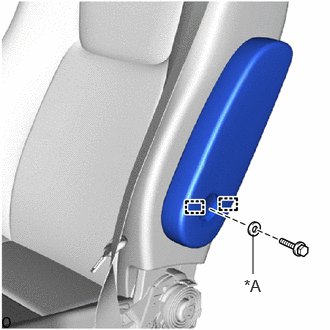

B548273C01
2.635,2.854 2.635,2.438 false 2.542,2.875 2.823,3.125 0.281,0.25 12 false *A
*A for Second Row


Remove the bolt.


b.

for Second Row:

i.

Remove the washer.



c.

Detach the guide and remove the LH seat No. 1 seat armrest assembly LH.


Hide 72880C 11.REMOVE LH SEAT NO. 1 SEAT ARMREST ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 73375 12.REMOVE REAR SEAT SHOULDER BELT COVER LH

a.

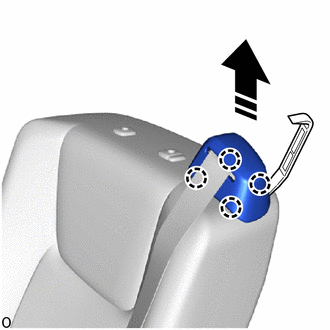

B548274C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw as shown in the illustration.


b.

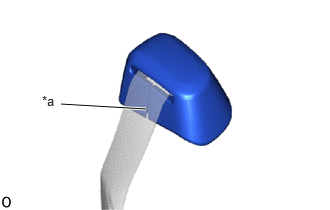

B548130C03
0.635,1.083 1.521,1.135 true 0.438,0.969 0.615,1.167 0.177,0.198 10 false *a
*a Slit


Pass the belt through the slit and remove the rear seat shoulder belt cover LH.


Hide 14.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

a.

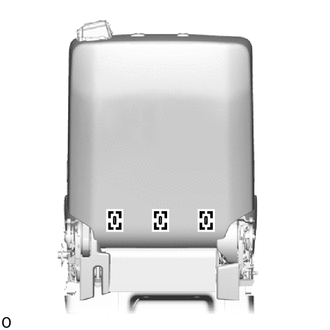

B548278

Remove the 3 hog rings.


b.
B548280

Open the 2 fasteners.


c.
B548281

Detach the hook.


d.

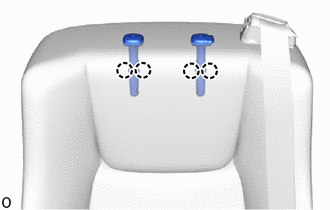

B548282

Detach the claw and remove the 2 front seat headrest supports.


e.

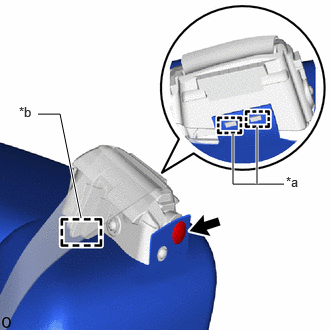

B548142C03
0.844,2.271 0.625,1.188 0.625,1.188 0.396,1.188 true 2.958,1.917 2.427,1.917 2.427,1.917 2.427,1.385 true 2.677,1.917 2.677,1.323 true 2.979,1.813 3.292,1.969 0.313,0.156 10 false *a 0.198,1.083 0.375,1.271 0.177,0.188 10 false *b
*a Hook
*b Guide


Remove the clip and detach the hook.


f.

Detach the guide and remove the separate type rear seatback cover with pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover with pad.



Hide 79014B 15.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

a.

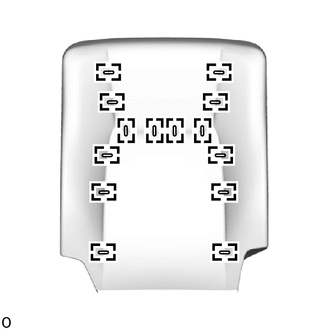

B548283

Remove the 14 hog rings and No. 1 seatback cover sub-assembly LH.


Hide 16.REMOVE SEAT COVER WIRE

a.
B548285

Remove the seat cover wire.


Hide 79076N 17.REMOVE NO. 1 SEAT OUTER LEG COVER SUB-ASSEMBLY LH (for First Row)

a.

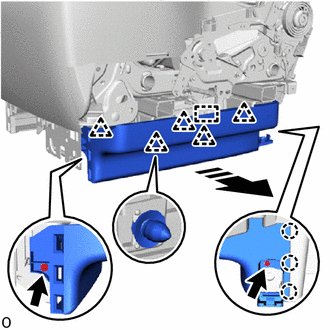

B548286C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the clip, claw and guide and remove the No. 1 seat outer leg cover sub-assembly LH as shown in the illustration.


Hide 79076M 18.REMOVE NO. 1 SEAT INNER LEG COVER SUB-ASSEMBLY RH (for First Row)

a.

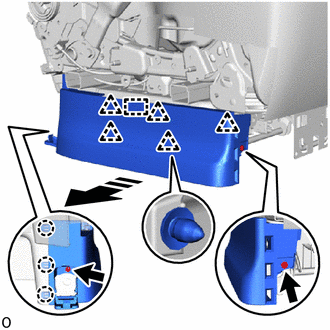

B548288C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the clip, claw and guide and remove the No. 1 seat inner leg cover sub-assembly RH as shown in the illustration.


Hide 79959F 19.REMOVE NO. 1 SEAT LEG COVER LH (for First Row)

a.

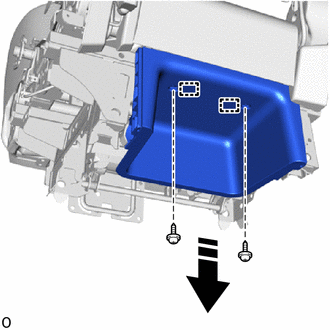

B548290C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the guide and remove the rear No. 1 seat leg cover LH as shown in the illustration.


Hide 79959J 20.REMOVE NO. 2 SEAT NO. 1 LEG COVER LH (for Second Row)

a.

w/o Power Supply Unit:

i.

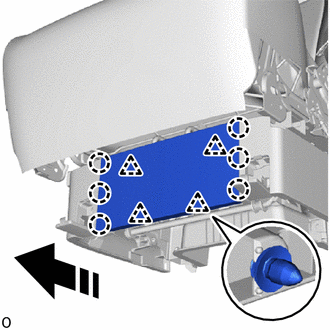

B548292C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clip and claw and remove the No. 2 seat No. 1 leg cover LH as shown in the illustration.



b.

w/ Power Supply Unit:

i.

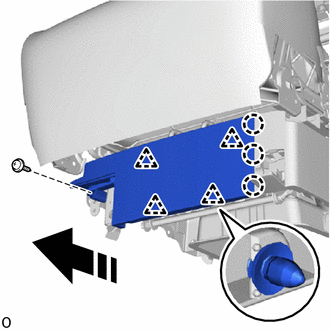

B552956C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


ii.

Detach the clip and claw and remove the No. 2 seat No. 1 leg cover LH as shown in the illustration.



Hide 79077G 21.REMOVE NO. 2 SEAT OUTER LEG COVER SUB-ASSEMBLY LH (for Second Row)

a.

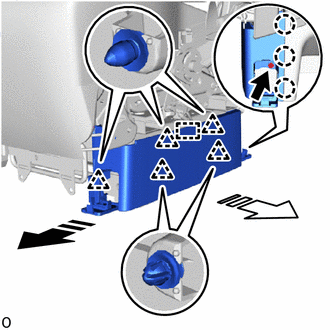

B552958C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Remove the screw.


b.

Detach the clip on the front side in the removal direction (1) as shown in the illustration.


c.

Detach the clip, claw and guide in the removal direction (2) as shown in the illustration and remove the No. 2 seat outer leg cover sub-assembly LH.


Hide 79077G 22.REMOVE NO. 2 SEAT INNER LEG COVER SUB-ASSEMBLY RH (for Second Row, w/o Power Supply Unit)

a.

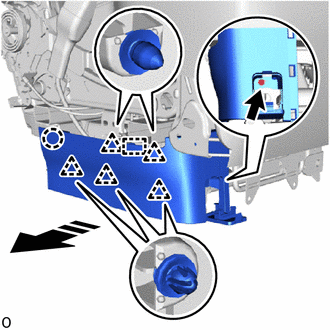

B552960C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Detach the clip, claw and guide and remove the No. 2 seat inner leg cover sub-assembly RH as shown in the illustration.


Hide 79959K 23.REMOVE NO. 2 SEAT NO. 2 LEG COVER LH (for Second Row)

a.

w/o Power Supply Unit:

i.

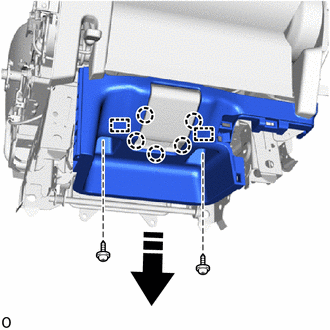

B552962C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


ii.

Detach the claw and guide and remove the No. 2 seat No. 2 leg cover LH as shown in the illustration.



b.

w/ Power Supply Unit:

i.
B552964C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 3 screws.


ii.

Detach the claw and guide and remove the No. 2 seat No. 2 leg cover LH as shown in the illustration.



Hide 72345S 24.REMOVE NO. 2 SEAT STAND FRAME CAP RH (for Second Row)

a.

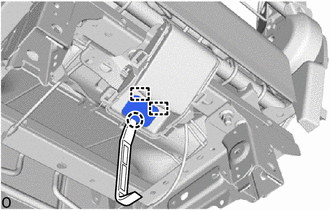

B552966

Using moulding remover A, detach the claw and guide and remove the No. 2 seat stand frame cap RH.


Hide 72690F 25.REMOVE NO. 2 SEAT CUSHION LOCK RELEASE LEVER ASSEMBLY RH (for Second Row)

a.

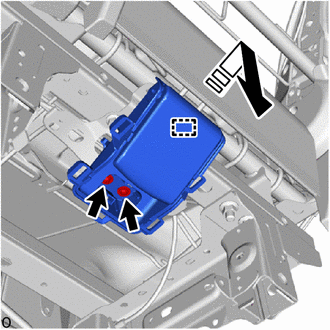

B552968C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the hook as shown in the illustration.


c.
B552970C01

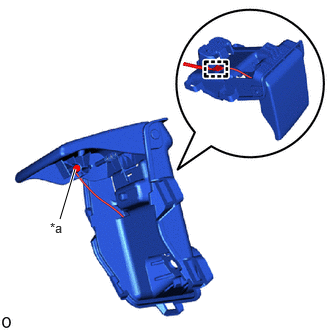

0.625,2.281 0.781,1.76 true 0.521,2.292 0.833,2.448 0.313,0.156 10 false *a
*a Cable End


Detach the cable clamp and cable end and remove the No. 2 seat cushion lock release lever assembly RH.


Hide 82196B 27.REMOVE REAR SEAT NO. 4 WIRE LH

a.

Detach each clamp, claw and disconnect each connector to remove the rear seat No. 4 wire LH.


Hide 28.REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

a.

Detach the hook.

B552975C01
3.125,1.573 3.469,2.156 3.469,2.156 3.75,1.573 true 1.719,1.813 1.958,2.031 0.24,0.219 12 true *A 3.365,2.177 3.625,2.396 0.26,0.219 12 true *B 4.74,1.823 4.979,2.042 0.24,0.219 12 true *A
*A for First Row *B for Second Row



b.

for First Row:

i.

Remove the 4 clips.



c.

for Second Row:

i.

Remove the 2 clips.



d.

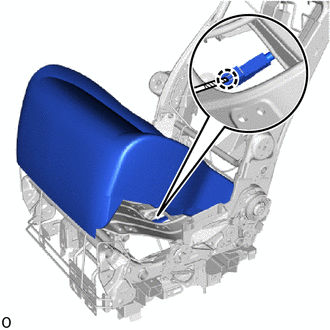

B552976C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the connector of the occupant detection sensor.

HINT:

Tape the thin-bladed screwdriver tip before use.



e.

Remove the separate type rear seat cushion cover with pad.


Hide 79012A 29.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

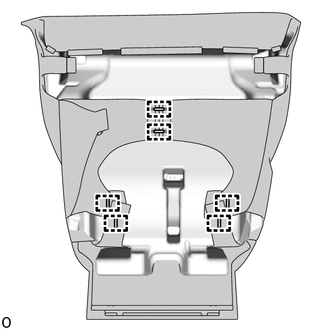

B552978

Remove the 6 hog rings.


b.

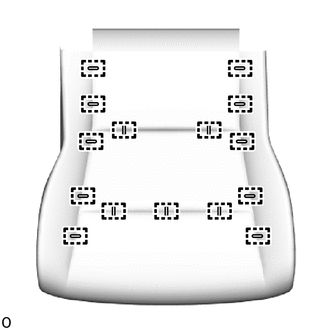

B552980

Remove the 15 hog rings and No. 1 seat cushion cover sub-assembly LH.


Hide 30.REMOVE SEAT COVER WIRE

a.

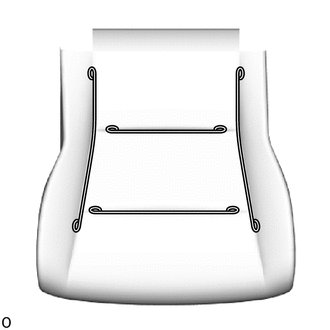

B552982

Remove the seat cover wire.


Hide 71H76R 31.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.

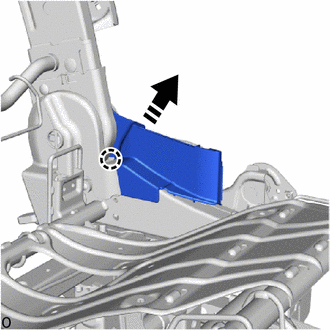

B552983C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the LH seat reclining adjuster inside cover LH as shown in the illustration.


Hide 71H76N 32.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH

a.

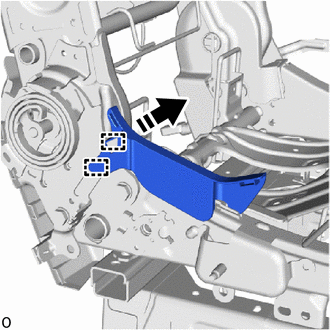

B552985C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the LH seat reclining adjuster inside cover RH as shown in the illustration.


Hide 71H75F 33.REMOVE LH SEAT REAR NO. 1 RECLINING ADJUSTER INSIDE COVER LH

a.

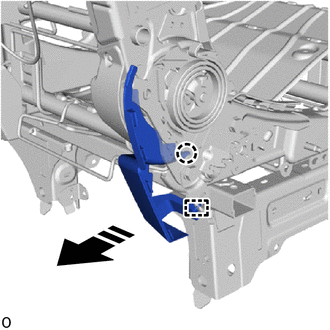

B552987C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and guide and remove the LH seat rear No. 1 reclining adjuster inside cover LH as shown in the illustration.


Hide 72729B 34.REMOVE NO. 1 SEAT INNER RECLINING PROTECTOR LH (for First Row)

a.

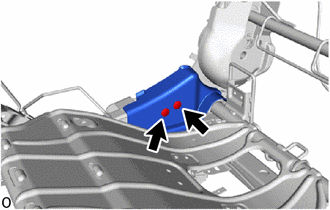

B552989

Remove the 2 clips and No. 1 seat inner reclining protector LH.


Hide 79104A 35.REMOVE NO. 1 SEATBACK FRAME SUB-ASSEMBLY LH

a.
B552990C01
1.292,0.469 1.844,0.469 true 1.844,0.365 2.031,0.563 0.188,0.198 10 true *a
*a Cable End


Detach the cable clamp and cable end.


b.

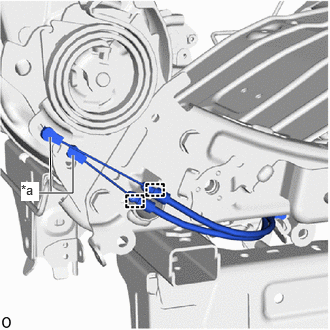

B552991C01
0.531,2.01 0.521,1.427 true 0.406,2.01 0.76,2.01 0.76,2.01 0.76,1.615 true 0.219,1.896 0.406,2.094 0.188,0.198 10 true *a
*a Cable End


Detach the cable clamp and cable end.


c.

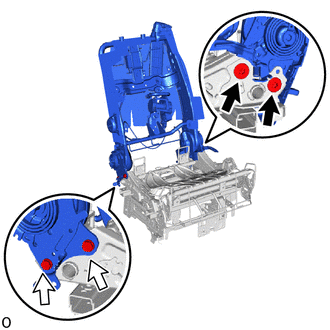

B552992C01
0,0 0,0 false
V100135

Bolt A
V100136

Bolt B


Remove the 2 bolts B.


d.

Using a T50 "TORX" socket wrench, remove the 2 bolts A and No. 1 seatback frame sub-assembly LH.


Hide 71695L 36.REMOVE NO. 1 SEATBACK PROTECTOR LH

a.

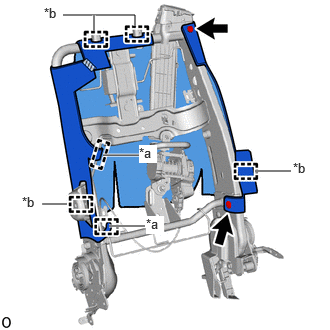

B562781C01
1.073,1.615 1.448,1.615 true 2.656,1.781 3.031,1.781 true 0.698,2.125 0.438,2.125 true 0.656,0.156 1.406,0.156 1.406,0.156 1.406,0.271 true 0.979,0.323 0.979,0.156 true 1.135,2.354 1.51,2.354 true 1.448,1.51 1.635,1.698 0.188,0.188 10 true *a 0.229,2.021 0.417,2.229 0.188,0.208 10 false *b 3.052,1.667 3.24,1.875 0.188,0.208 10 false *b 0.458,0.052 0.646,0.26 0.188,0.208 10 false *b 1.521,2.25 1.708,2.438 0.188,0.188 10 true *a
*a Hook
*b Guide
V100155

Fastening Tape


Remove the 2 clips.


b.

Detach the fastening tape.


c.

Detach the hook and guide and remove the No. 1 seatback protector LH.


Hide 71499M 37.REMOVE NO. 1 SEATBACK SPRING DAMPER LH

a.

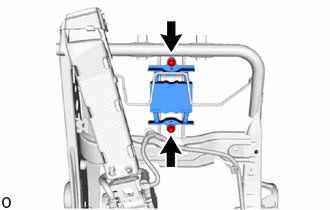

B552994

Remove the 2 nuts and No. 1 seatback spring damper LH.


Hide 71499R 38.REMOVE NO. 2 SEATBACK NO. 2 SPRING DAMPER LH (for Second Row)

HINT:

Use the same procedure described for the No. 1 seatback spring damper LH.


Hide 71H75X 39.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER

a.

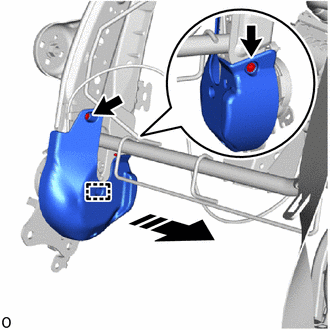

B552995C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the guide and remove the LH seat reclining adjuster inside cover as shown in the illustration.


Hide 73373W 40.REMOVE NO. 1 SEAT NO. 2 SHOULDER BELT COVER LH

a.

for First Row:

i.

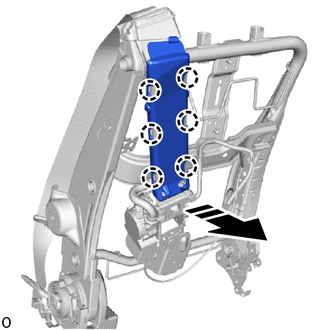

B552997C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 1 seat No. 2 shoulder belt cover LH as shown in the illustration.



b.

for Second Row:

i.

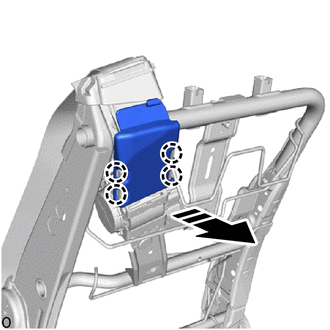

B552999C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 1 seat No. 2 shoulder belt cover LH as shown in the illustration.



Hide 73373X 42.REMOVE NO. 1 SEAT NO. 1 SHOULDER BELT COVER LH

a.

for First Row:

i.

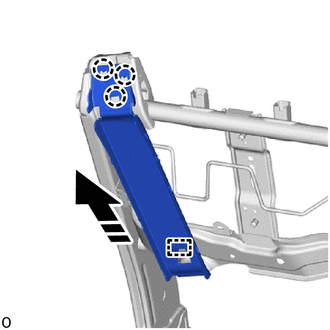

B553007C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw.


ii.

Detach the hook and remove the No. 1 seat No. 1 shoulder belt cover LH as shown in the illustration.



b.

for Second Row:

i.

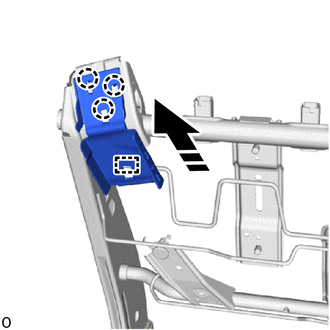

B553009C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw.


ii.

Detach the hook and remove the No. 1 seat No. 1 shoulder belt cover LH as shown in the illustration.



Hide 71H76F 43.REMOVE REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER LH

a.

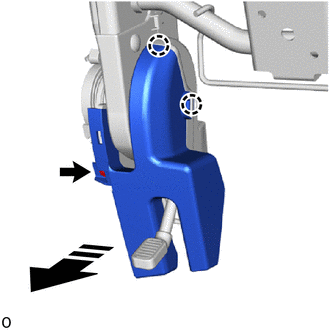

B553011C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Detach the claw and remove the rear No. 1 seat reclining adjuster inside cover LH as shown in the illustration.


Hide 71H76E 44.REMOVE REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER RH

a.

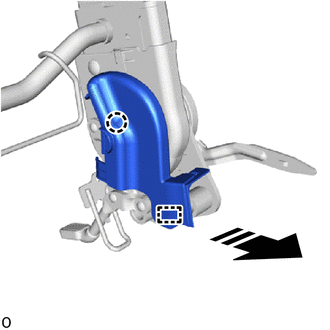

B553013C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and guide and remove the rear No. 1 seat reclining adjuster inside cover RH as shown in the illustration.


Hide 71H76S 45.REMOVE LH SEATBACK RECLINING ADJUSTER INSIDE COVER LH

a.

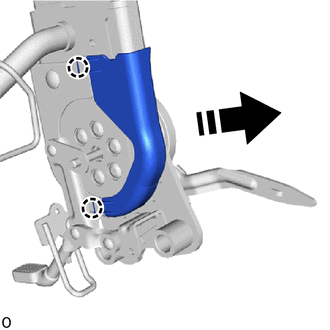

B553015C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the LH seatback reclining adjuster inside cover LH as shown in the illustration.


Hide 71H76T 46.REMOVE LH SEATBACK RECLINING ADJUSTER INSIDE COVER RH

a.
B553017C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clip and LH seatback reclining adjuster inside cover RH as shown in the illustration.


Hide 72570F 47.REMOVE NO. 1 SEAT RECLINING ADJUSTING CABLE ASSEMBLY LH

a.

for First Row:

i.

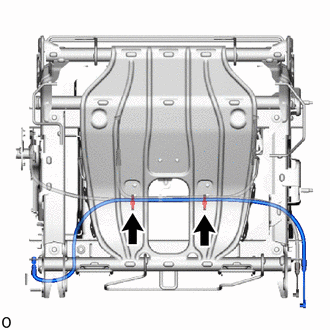

B553020

Remove the 2 cable ties and No. 1 seat reclining adjusting cable assembly LH.



b.

for Second Row:

i.

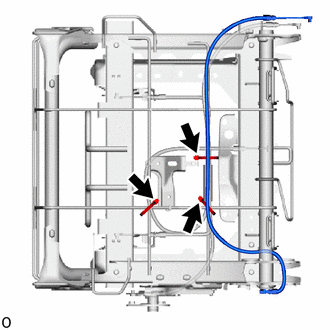

B553026

Remove the 3 cable ties and No. 1 seat reclining adjusting cable assembly LH.



Hide 72620L 48.REMOVE NO. 1 SEAT WALK-IN CABLE ASSEMBLY LH

a.

for First Row:

i.

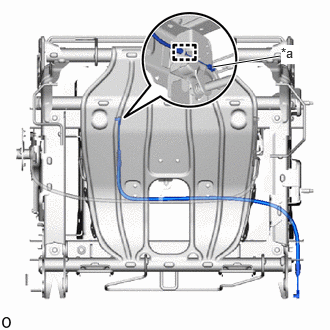

B553022C01
2.208,0.698 2.917,0.583 true 2.927,0.469 3.115,0.667 0.188,0.198 10 true *a
*a Cable End


Detach the cable clamp and cable end and remove the No. 1 seat walk-in cable assembly LH.



b.

for Second Row:

i.

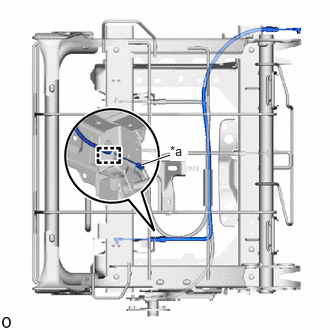

B553028C01
1.469,1.719 1.771,1.615 true 1.771,1.49 1.958,1.677 0.188,0.188 10 true *a
*a Cable End


Detach the cable clamp and cable end and remove the No. 1 seat walk-in cable assembly LH.



Hide 72210R 49.REMOVE NO. 1 SEAT SLIDE CABLE ASSEMBLY LH

a.

for First Row:

i.

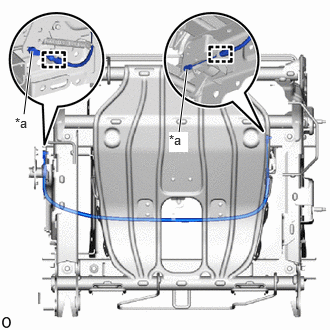

B553023C01
0.25,1.188 0.333,0.531 true 1.865,1.375 1.948,0.719 true 0.156,1.198 0.354,1.406 0.198,0.208 10 false *a 1.76,1.375 1.958,1.583 0.198,0.208 10 true *a
*a Cable End


Detach the cable clamp and cable end and remove the No. 1 seat slide cable assembly LH.



b.

for Second Row:

i.

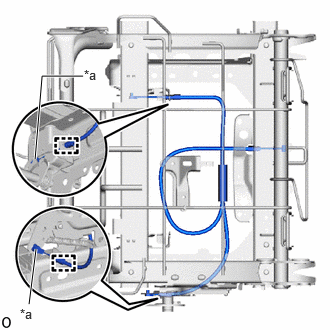

B553029C01
0.365,1.656 0.438,0.792 0.438,0.792 0.865,0.792 true 0.375,2.594 0.302,3.167 true 0.208,3.188 0.521,3.344 0.313,0.156 10 false *a 0.875,0.698 1.083,0.885 0.208,0.188 10 false *a
*a Cable End


Detach the cable clamp and cable end and remove the No. 1 seat slide cable assembly LH.



Hide 79102B 50.REMOVE NO. 1 SEAT CUSHION FRAME SUB-ASSEMBLY LH

a.

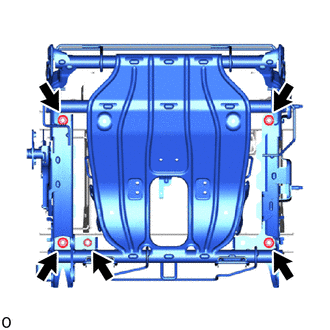

B553018

Remove the 5 nuts and No. 1 seat cushion frame sub-assembly LH.


Hide 72998D 51.REMOVE REAR SEAT CUSHION COVER LH (for First Row)

a.
B553019

Remove the 2 clips and rear seat cushion cover LH.
