PARK ASSIST / MONITORING TELEVISION CAMERA(for Side) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the side television camera assembly removal/installation are shown below.
| Replacement part or procedure | Necessary procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
·
Side television camera assembly LH (Including removal and installation) ·
Side television camera assembly RH (Including removal and installation) |
Side television camera view adjustment | Panoramic view monitor system | ( 201906,999999,_56,_079315,_0396274,RM100000001IGR4,)
|
·
Front television camera assembly, radiator grille assembly or front bumper assembly ·
Television camera assembly ·
Side television camera assembly LH or outer rear view mirror assembly LH ·
Side television camera assembly RH or outer rear view mirror assembly RH |
Television camera view adjustment (Adjustment of all cameras)
|
Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR4,)
|
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure described below is for the LH side.
PROCEDURE
87961
1.REMOVE OUTER MIRROR LH
87945
2.REMOVE OUTER MIRROR COVER LH
81740
3.REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH
86790F

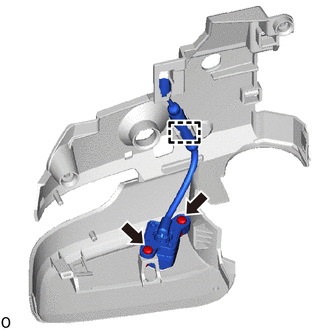

4.REMOVE SIDE TELEVISION CAMERA ASSEMBLY LH
Detach the wire harness clamp.
Remove the 2 screws and side television camera assembly LH.
