EXTERIOR PANELS / TRIM SIDE MUDGUARD(for Wagon) INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
76908
1.INSTALL QUARTER PANEL MUDGUARD SUB-ASSEMBLY LH
|
Install in this Direction |

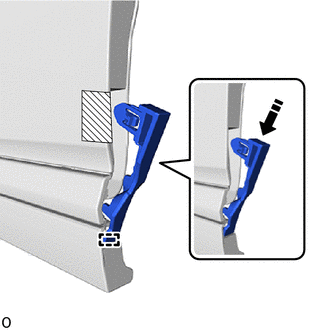

Attach the clip and install the quarter panel mudguard sub-assembly LH.
Install the clip.
Install the screw.
Remove the protective tape.
76906C
2.INSTALL SLIDE DOOR MUDGUARD SUB-ASSEMBLY LH
|
|
Install in this Direction |

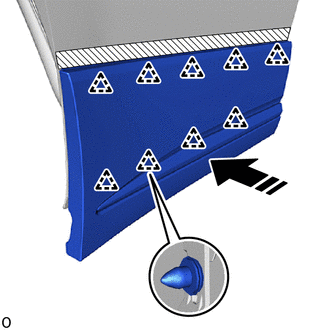

Attach the clip and claw and install the slide door mudguard sub-assembly LH as shown in the illustration.
Install the screw.
Remove the protective tape.
76902C
3.INSTALL SIDE MUDGUARD SUB-ASSEMBLY LH
|
|
Install in this Direction |

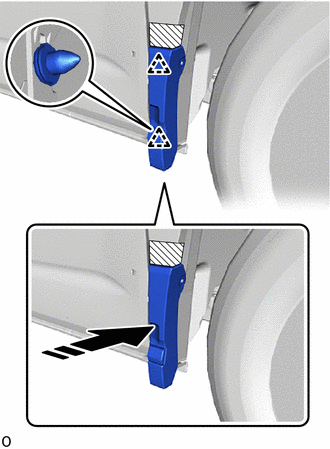

Attach the clip and install the side mudguard sub-assembly LH.
Install the screw.
Remove the protective tape.
76904A
4.INSTALL FRONT DOOR MUDGUARD SUB-ASSEMBLY LH
|
|
Install in this Direction |

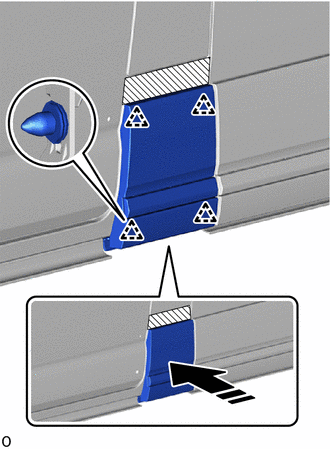

Attach the clip and install the front door mudguard sub-assembly LH as shown in the illustration.
Install the screw.
Remove the protective tape.
75734C
5.INSTALL FRONT DOOR REAR OUTSIDE MOULDING LH
|
|
Install in this Direction |

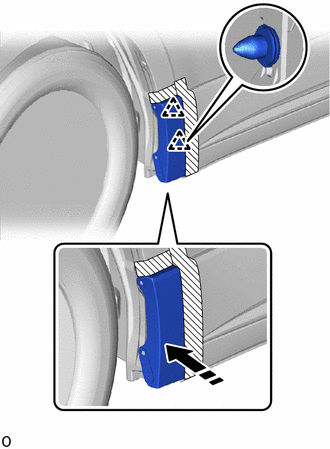

Attach the hook as shown in the illustration.
|
|
Install in this Direction |

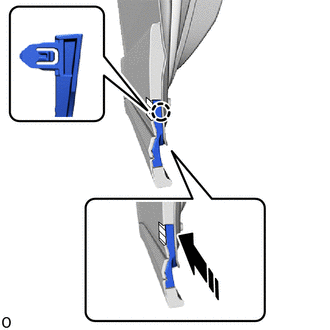

Attach the claw and install the front door rear outside moulding LH.
Remove the protective tape.
76902B
6.INSTALL FENDER PANEL MUDGUARD SUB-ASSEMBLY LH
|
|
Install in this Direction |

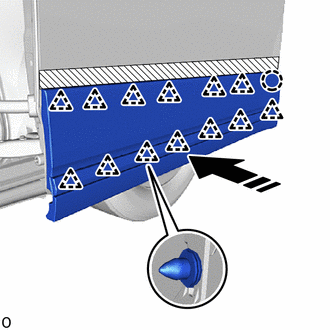

Attach the clip and install the fender panel mudguard sub-assembly LH as shown in the illustration.
Install the clip.
| *A | w/o Mudguard |
w/o Mudguard:
Install the 2 screws.
w/ Mudguard:
Install the screw.
Remove the protective tape.
76622D
7.INSTALL FRONT FENDER MUDGUARD LH (w/ Mudguard)
