LIGHTING (EXT)  STOP LIGHT SWITCH  ON-VEHICLE INSPECTION


PROCEDURE

Hide 84340 1.INSPECT STOP LIGHT SWITCH ASSEMBLY

E409581C16
1.5,0.115 1.833,0.365 0.333,0.25 1.135,1.833 1.271,1.354 true 2.219,1.844 2.083,1.365 true 2.49,1.865 2.292,1.354 true 1.573,0.156 2.031,0.354 0.458,0.198 10 false M2 0.969,1.865 1.385,2.094 0.417,0.229 10 false GND 2.208,1.885 2.427,2.104 0.219,0.219 10 false B 2.469,1.885 2.688,2.104 0.219,0.219 10 false B 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a

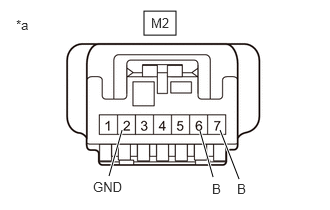

*a Front view of wire harness connector
(to Stop Light Switch Assembly)


a.

Disconnect the stop light switch assembly connector.


b.

Measure the voltage and resistance on the wire harness side connector according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
M2-7 (B) - M2-2 (GND) Always 11 to 14 V
M2-6 (B) - M2-2 (GND) Ignition switch on (IG) 11 to 14 V


Standard Resistance:
Tester Connection Condition Specified Condition
M2-2 (GND) - Body ground Always Below 1 Ω


If the result is not as specified, repair or replace the wire harness or connector.


c.
E409580C06
1.51,0.083 1.927,0.385 0.417,0.302 2.313,1.24 2.896,0.938 true 2.135,1.26 2.49,1.875 true 1.927,1.271 2.281,1.885 true 1.24,1.865 1.698,1.292 true 0.865,1.948 1.49,1.281 true 0.094,0.083 0.406,0.24 0.313,0.156 10 false *a 1.594,0.135 2.052,0.333 0.458,0.198 10 false M2 2.969,0.833 3.313,1.073 0.344,0.24 10 false OUT 2.552,1.823 2.896,2.063 0.344,0.24 10 false GND 2.281,1.906 2.438,2.104 0.156,0.198 10 false L 1.063,1.896 1.406,2.135 0.344,0.24 10 false ACC 0.76,1.917 0.917,2.115 0.156,0.198 10 false L

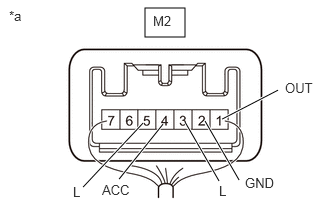

*a Component with harness connected
(Stop Light Switch Assembly)


Reconnect the stop light switch assembly connector.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
M2-1 (OUT) - M2-2 (GND) Brake pedal released 1.5 V or less
Brake pedal depressed 11 to 14 V
M2-3 (L) - M2-2 (GND) Brake pedal released 1.5 V or less
Brake pedal depressed 11 to 14 V
M2-4 (ACC) - M2-2 (GND) Always 11 to 14 V
M2-5 (L) - M2-2 (GND) Ignition switch on (IG), brake pedal released 7.5 to 14 V
Ignition switch on (IG), brake pedal depressed Below 1.5 V


If the result is not as specified, replace the stop light switch assembly.
