LIGHTING (INT)  BACK DOOR COURTESY SWITCH(for Wagon)  REMOVAL

67938A 1.REMOVE BACK DOOR SIDE GARNISH LH

67937B 2.REMOVE BACK DOOR SIDE GARNISH RH

69291 3.REMOVE BACK DOOR INSIDE HANDLE ASSEMBLY (w/ Handle)

69783B 4.REMOVE BACK DOOR INSIDE HANDLE BEZEL (w/ Handle)

67961A 5.REMOVE BACK DOOR PULL STRAP

67751 6.REMOVE BACK DOOR TRIM BOARD

69690 7.REMOVE BACK DOOR REMOTE CONTROL ASSEMBLY

a.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the snap in the direction indicated by the arrow (1) in the illustration.

b.

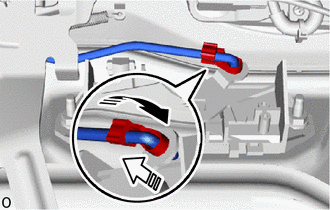

Disconnect the back door lock open link in the direction indicated by the arrow (2) in the illustration.

c.

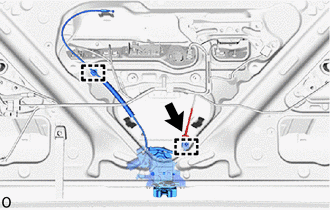

Detach the clamp and disconnect the back door lock cable.

d.

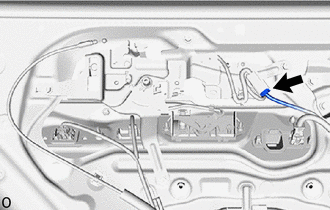

Disconnect the connector.

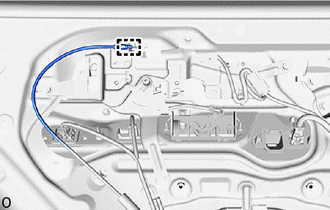

e.

Remove the 4 screws.

f.

Detach the guide and remove the back door remote control assembly.

69350P 8.REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

a.

Disconnect the connector.

b.

Detach the cable clamp.

c.

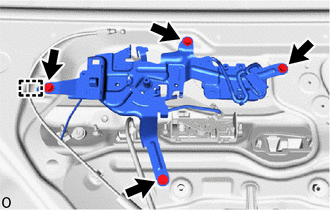

Remove the 4 bolts and back door lock assembly with courtesy light switch.
