RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0398440 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 73330J 1.INSTALL REAR SEAT 3 PERSONS LAP TYPE BELT ASSEMBLY

a.

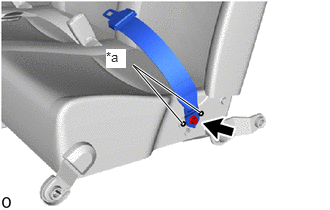

B542006C01
1.896,1.281 1.385,0.677 1.385,0.677 2.083,1.167 true 1.104,0.51 1.313,0.708 0.208,0.198 10 true *a
*a Protruding Part


Install the rear seat 3 persons lap type belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear seat 3 persons lap type belt assembly to overlap the protruding part.



Hide 79J67E 3.INSTALL REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.
B538104C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the rear No. 3 seat No. 3 leg side cover as shown in the illustration.
