SEAT BELT  SEAT BELT WARNING LIGHT(for Rear Seat)  INSTALLATION

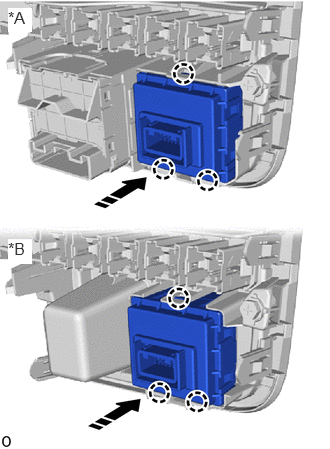

83150C 1.INSTALL INDICATOR ASSEMBLY (for Van)

a.

0.083,0.083 0.333,0.333 0.25,0.25 12 true *A 0.083,2.49 0.333,2.75 0.25,0.26 12 true *B

*A	w/ Rear Air Conditioning System
*B	w/o Rear Air Conditioning System
	Install in this Direction

Attach the claw and install the indicator assembly as shown in the illustration.

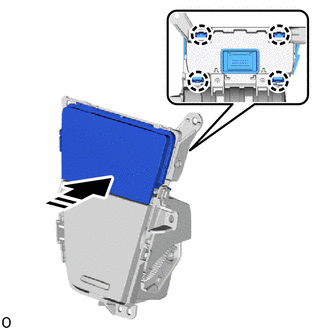

83150C 2.INSTALL INDICATOR ASSEMBLY (for Wagon)

a.

0,0 0,0 false

Install in this Direction

Attach the claw and install the indicator assembly as shown in the illustration.

55308D 3.INSTALL CENTER INSTRUMENT PANEL BOX SUB-ASSEMBLY (for Wagon)

a.

Attach the claw and guide.

b.

Install the center instrument panel box sub-assembly with the 4 screws.

55900 4.INSTALL AIR CONDITIONING CONTROL ASSEMBLY

35970F 5.INSTALL POSITION INDICATOR HOUSING ASSEMBLY

33504F 6.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

33622 7.CONNECT NO. 1 SHIFT LEVER KNOB COVER
