RM35X0E _58 Vehicle Interior _078601 SEAT _0398432 REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79390B 1.INSTALL NO. 3 SEATBACK SPRING ASSEMBLY LH

a.

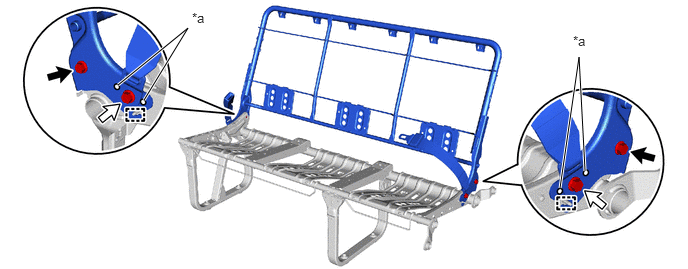

Attach the guide.

B538057C01
1.229,0.885 1.958,0.292 1.958,0.292 1.5,1.042 true 5.833,1.958 6.031,0.594 6.031,0.594 6.094,1.781 true 2,0.104 2.313,0.26 0.313,0.156 10 false *a 5.969,0.344 6.281,0.5 0.313,0.156 10 false *a
*a Protruding Part - -
V100135

Bolt A
V100136

Bolt B



b.

Temporarily install the No. 3 seatback spring assembly LH with the 2 bolts A.


c.

Temporarily install the rear seat 3 persons lap type belt assembly and rear seat 3 persons belt assembly with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear seat 3 persons lap type belt assembly and rear seat 3 persons belt assembly to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 79385 2.INSTALL NO. 3 SEATBACK PAD LH

a.

Install the No. 3 seatback pad LH.


Hide 3.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the Precaution section before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION

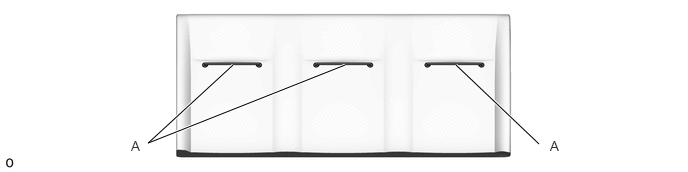

B538033N01
2.427,0.677 1.542,1.49 1.542,1.49 3.594,0.677 true 5.615,1.5 4.75,0.677 true 1.365,1.438 1.521,1.635 0.156,0.198 10 false A 5.729,1.438 5.885,1.635 0.156,0.198 10 false A

Dimensions:
A 210 mm (8.27 in.) - -


HINT:
B376752

The dimension shown in the illustration is the length.



Hide 79034A 4.INSTALL NO. 3 SEATBACK COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 3 seatback cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

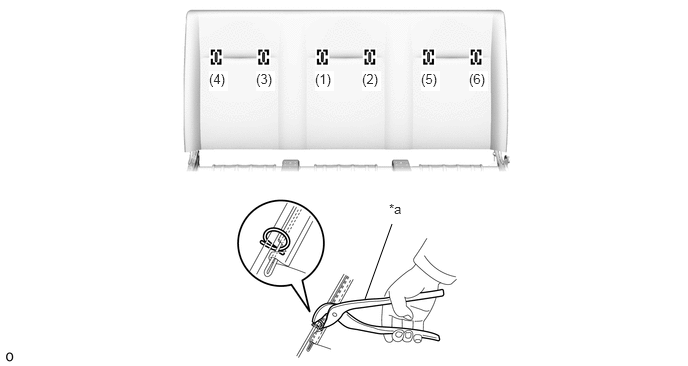

Using hog ring pliers, install the No. 3 seatback cover sub-assembly LH with 6 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 3 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 3 seatback cover sub-assembly LH.



B538055C01
3.802,3.115 4.083,2.333 false 4.052,2.094 4.365,2.25 0.313,0.156 10 false *a 3.281,0.74 3.479,0.948 0.198,0.208 10 true (1) 3.771,0.74 3.969,0.948 0.198,0.208 10 true (2) 2.667,0.74 2.865,0.948 0.198,0.208 10 true (3) 2.177,0.74 2.375,0.948 0.198,0.208 10 true (4) 4.385,0.74 4.583,0.948 0.198,0.208 10 true (5) 4.885,0.74 5.083,0.948 0.198,0.208 10 true (6)
*a Hog Ring Pliers - -



b.

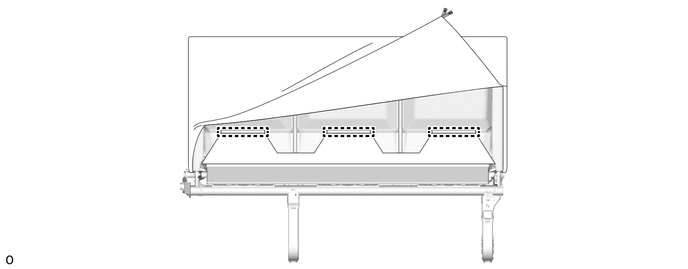

Attach the hook.

B538086


c.

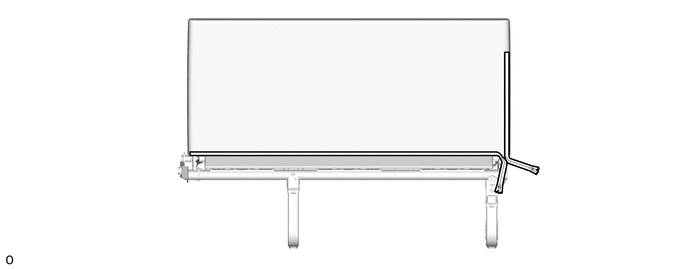

Close the 2 fasteners.

B538085


d.

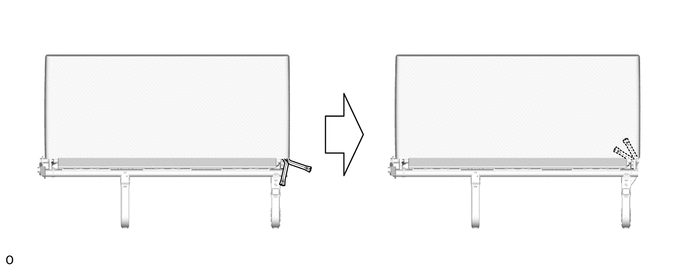

Insert the 2 fasteners.

B538084


Hide 74610W 5.INSTALL ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all assist grip assemblies.


a.

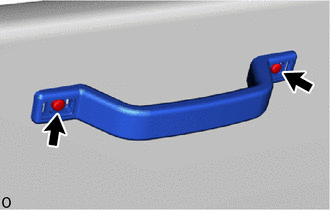

B538030

Install the assist grip assembly with the 2 screws.


Hide 74F17 6.INSTALL ASSIST GRIP PLUG

HINT:

Use the same procedure for all assist grip plugs.


a.
B538029

Attach the claw and install the assist grip plug.


Hide 73460D 8.INSTALL REAR CENTER SEAT 3 PERSONS BELT ASSEMBLY RH

HINT:

Use the same procedure described for the rear center seat 3 persons belt assembly LH.


Hide 9.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the Precaution section before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION

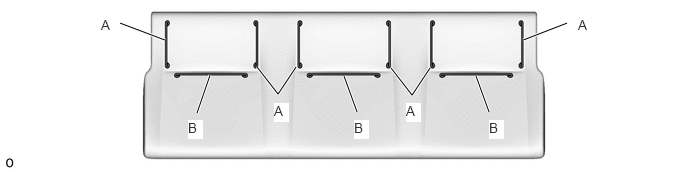

B538051N01
1.25,0.24 1.719,0.417 true 5.448,0.417 5.906,0.24 true 2.677,0.698 2.896,0.979 2.896,0.979 3.083,0.698 true 4.073,0.708 4.292,0.99 4.292,0.99 4.479,0.708 true 2.188,0.781 2.052,1.177 true 3.583,0.792 3.719,1.167 true 4.958,0.792 5.094,1.167 true 2.854,1.073 3.01,1.271 0.156,0.198 10 true A 4.229,1.073 4.385,1.271 0.156,0.198 10 true A 6.021,0.177 6.177,0.375 0.156,0.198 10 true A 1.052,0.177 1.208,0.375 0.156,0.198 10 true A 1.958,1.25 2.115,1.448 0.156,0.198 10 true B 3.688,1.25 3.844,1.448 0.156,0.198 10 true B 5.094,1.25 5.25,1.448 0.156,0.198 10 true B

Dimensions:
A 120 mm (4.72 in.) B 210 mm (8.27 in.)


HINT:
B376752

The dimension shown in the illustration is the length.



Hide 79032B 10.INSTALL NO. 3 SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 3 seat cushion cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

Using hog ring pliers, install the No. 3 seat cushion cover sub-assembly LH with 18 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 3 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 3 seat cushion cover sub-assembly LH.



B538050C01
3.823,2.99 4.063,2.292 false 4.021,2.083 4.333,2.24 0.313,0.156 10 false *a 3.208,0.583 3.417,0.76 0.208,0.177 10 true (1) 3.208,0.313 3.417,0.49 0.208,0.177 10 true (2) 3.792,0.583 4,0.76 0.208,0.177 10 true (3) 3.792,0.313 4,0.49 0.208,0.177 10 true (4) 2.417,0.583 2.625,0.76 0.208,0.177 10 true (5) 2.417,0.313 2.625,0.49 0.208,0.177 10 true (6) 4.594,0.583 4.802,0.76 0.208,0.177 10 true (7) 4.594,0.313 4.802,0.49 0.208,0.177 10 true (8) 1.396,0.583 1.604,0.76 0.208,0.177 10 true (9) 1.333,0.313 1.604,0.49 0.271,0.177 10 true (10) 5.604,0.594 5.875,0.771 0.271,0.177 10 true (11) 5.604,0.313 5.875,0.49 0.271,0.177 10 true (12) 3.156,0.979 3.427,1.156 0.271,0.177 10 true (13) 3.771,0.979 4.042,1.156 0.271,0.177 10 true (14) 2.396,0.979 2.667,1.156 0.271,0.177 10 true (15) 4.542,0.99 4.813,1.167 0.271,0.177 10 true (16) 1.781,0.979 2.052,1.156 0.271,0.177 10 true (17) 5.146,0.99 5.417,1.167 0.271,0.177 10 true (18)
*a Hog Ring Pliers - -



b.

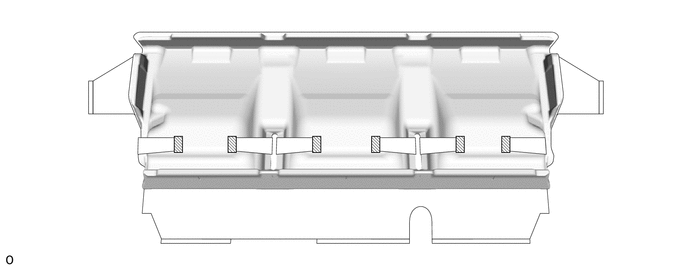

Attach the fastening tape.

B538087C02
0,0 0,0 false
V100155

Fastening Tape - -



Hide 11.INSTALL SEAT CUSHION COVER WITH PAD

a.

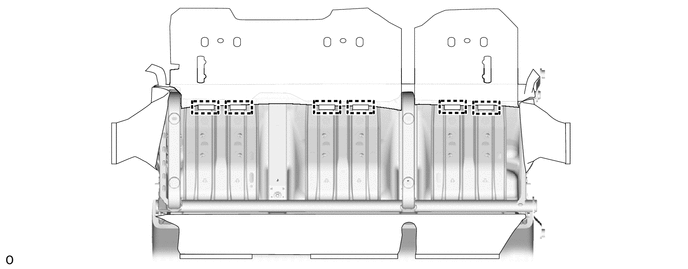

Attach the hook.

B538082


b.

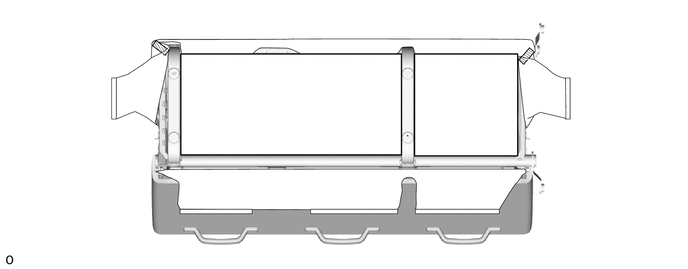

Close the cover and attach the fastening tape.

B538081C02
0,0 0,0 false
V100155

Fastening Tape - -



c.

Insert the cover between the No. 3 seat cushion pad LH and No. 3 seat leg sub-assembly LH.


d.

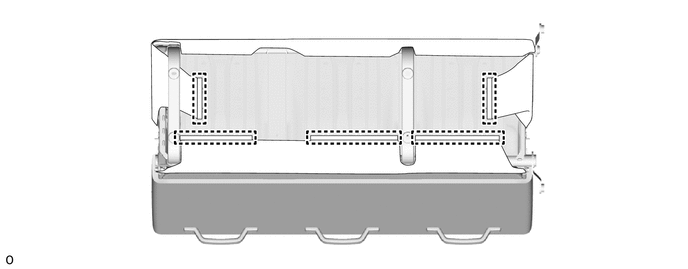

Attach the hook and install the seat cushion cover with pad.

B538080


Hide 72345U 12.INSTALL NO. 3 SEAT STAND FRAME CAP RH

a.
B538044

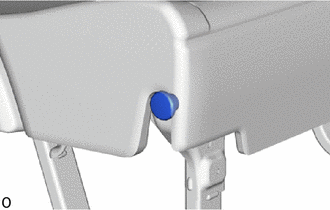

Install the No. 3 seat stand frame cap RH.


Hide 71833Q 13.INSTALL LH SEAT REAR NO. 3 SEAT RECLINING COVER RH

a.

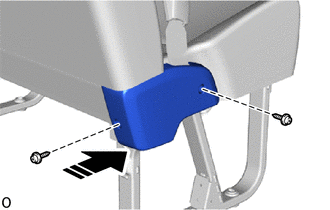

B538046C01
0,0 0,0 false
V113147

Install in this Direction


Install the LH seat rear No. 3 seat reclining cover RH with the 2 screws as shown in the illustration.


Hide 71834Q 14.INSTALL LH SEAT REAR NO. 3 SEAT RECLINING COVER LH

a.

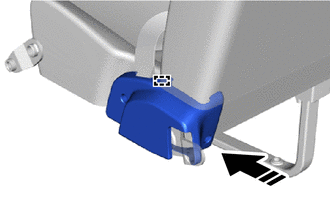

B538043C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.


b.

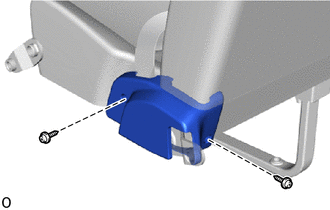

B538041

Install the LH seat rear No. 3 seat reclining cover LH with the 2 screws.


Hide 79J67D 15.INSTALL REAR NO. 3 SEAT NO. 2 LEG SIDE COVER

a.

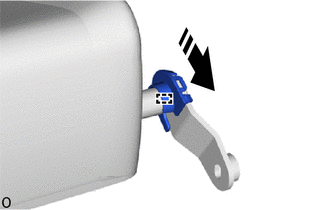

B510397C02
0,0 0,0 false
V113147

Install in this Direction


Attach the hook as shown in the illustration.


b.

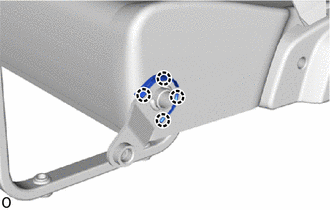

B538040

Attach the claw and install the rear No. 3 seat No. 2 leg side cover.


Hide 79J67C 16.INSTALL REAR NO. 3 SEAT NO. 1 LEG SIDE COVER

a.
B538039C01
0,0 0,0 false
V113147

Install in this Direction

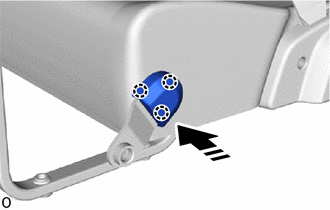

Attach the claw and install the rear No. 3 seat No. 1 leg side cover as shown in the illustration.


Hide 79J67E 17.INSTALL REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.
B538037C01
0,0 0,0 false
V113147

Install in this Direction

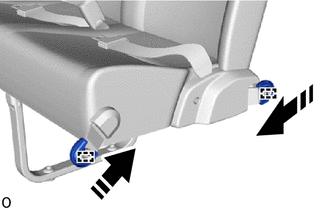

Attach the hook and install the 2 rear No. 3 seat No. 3 leg side covers as shown in the illustration.
