RM35X0E _58 Vehicle Interior _078601 SEAT _0398432 REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

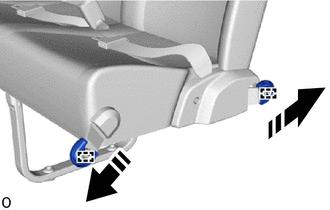

Hide 79J67E 1.REMOVE REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.
B538036C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the 2 rear No. 3 seat No. 3 leg side covers as shown in the illustration.

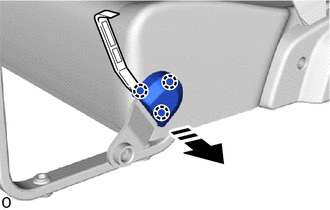

Hide 79J67C 2.REMOVE REAR NO. 3 SEAT NO. 1 LEG SIDE COVER

a.
B538038C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 3 seat No. 1 leg side cover as shown in the illustration.

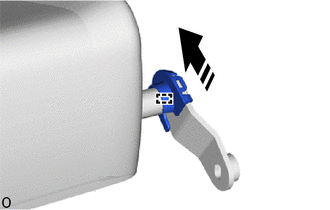

Hide 79J67D 3.REMOVE REAR NO. 3 SEAT NO. 2 LEG SIDE COVER

a.
B538040

Detach the claw.


b.
B510396C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 3 seat No. 2 leg side cover as shown in the illustration.

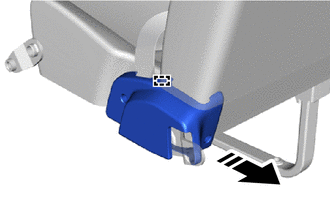

Hide 71834Q 4.REMOVE LH SEAT REAR NO. 3 SEAT RECLINING COVER LH

a.
B538041

Remove the 2 screws.


b.
B538042C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the LH seat rear No. 3 seat reclining cover LH as shown in the illustration.


Hide 71833Q 6.REMOVE LH SEAT REAR NO. 3 SEAT RECLINING COVER RH

a.
B538045C01
0,0 0,0 false
V113147

Remove in this Direction

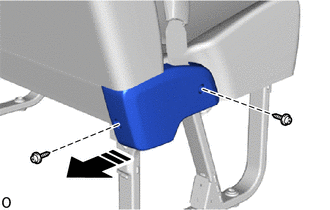

Remove the 2 screws and the LH seat rear No. 3 seat reclining cover RH as shown in the illustration.


Hide 72345U 8.REMOVE NO. 3 SEAT STAND FRAME CAP RH

a.
B538044

Remove the No. 3 seat stand frame cap RH.


Hide 9.REMOVE SEAT CUSHION COVER WITH PAD

a.

Detach the hook.

B538080


b.

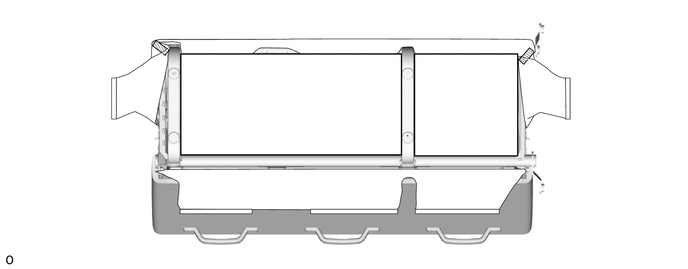

Detach the fastening tape and open the cover.

B538081C01
0,0 0,0 false
V100155

Fastening Tape - -



c.

Detach the hook and remove the seat cushion cover with pad.

B538082


Hide 79032B 10.REMOVE NO. 3 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

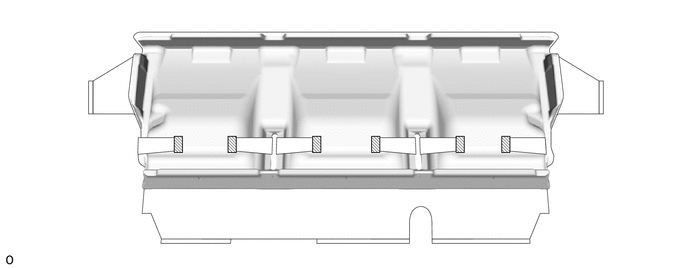

Detach the fastening tape.

B538087C01
0,0 0,0 false
V100155

Fastening Tape - -



b.

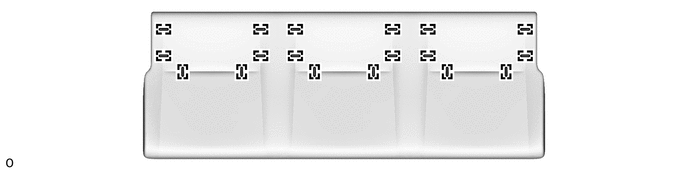

Remove the 18 hog rings and No. 3 seat cushion cover sub-assembly LH.

B538049

NOTICE:

Be careful not to dirty or damage the No. 3 seat cushion cover sub-assembly LH.

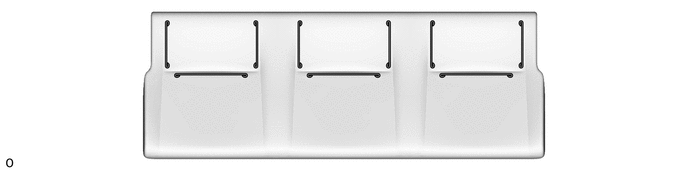

Hide 11.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

B538051


Hide 73460D 13.REMOVE REAR CENTER SEAT 3 PERSONS BELT ASSEMBLY RH

HINT:

Use the same procedure described for the rear center seat 3 persons belt assembly LH.

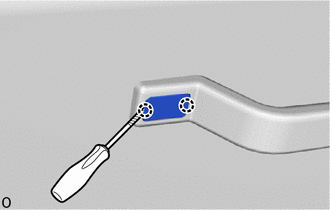

Hide 74F17 14.REMOVE ASSIST GRIP PLUG

HINT:

Use the same procedure for all assist grip plugs.


a.
B538028C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the assist grip plug.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 74610W 15.REMOVE ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all assist grip assemblies.


a.
B538030

Remove the 2 screws and assist grip assembly.


Hide 79034A 16.REMOVE NO. 3 SEATBACK COVER SUB-ASSEMBLY LH

a.

Pull out the 2 fasteners.

B538083


b.

Open the 2 fasteners.

B538085


c.

Detach the hook.

B538086


d.

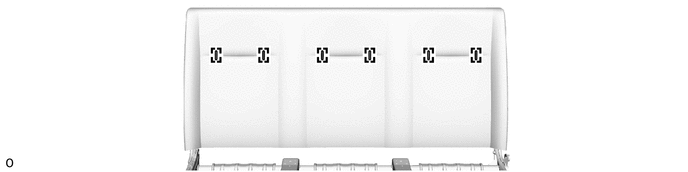

Remove the 6 hog rings and No. 3 seatback cover sub-assembly LH.

B538054

NOTICE:

Be careful not to dirty or damage the No. 3 seatback cover sub-assembly LH.



Hide 17.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

B538033


Hide 79385 18.REMOVE NO. 3 SEATBACK PAD LH

a.

Remove the No. 3 seatback pad LH.

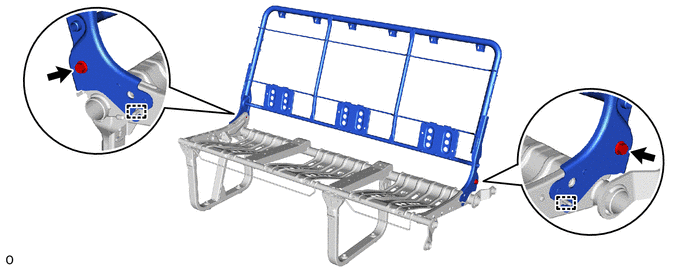

Hide 79390B 19.REMOVE NO. 3 SEATBACK SPRING ASSEMBLY LH

a.

Remove the 2 bolts.

B538056


b.

Detach the guide and remove the No. 3 seatback spring assembly LH.
