RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0384721 FRONT SIDE WINDOW GLASS(for Rear Door) A

WINDOW / GLASS  FRONT SIDE WINDOW GLASS(for Rear Door)  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.


HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 62720B 1.CLEAN FRONT SIDE WINDOW ASSEMBLY LH

a.

When reusing the front side window assembly LH:

i.

w/o Ceramic Notch:

Put matchmarks around the No. 1 quarter panel spacers and side window glass spacer.

B660510C01
0.99,0.854 1.135,1.052 1.135,1.052 0.958,1.24 false 0.552,1.219 0.396,1.031 0.396,1.031 0.552,0.844 false 5.865,2.042 6.01,1.688 6.01,1.688 6.458,1.594 false 6.281,0.813 6.156,0.635 6.156,0.635 6.271,0.458 false 6.688,0.833 6.833,0.625 6.833,0.625 6.667,0.438 false 6.052,2.281 6.427,2.25 6.427,2.25 6.563,1.844 false 0.24,0.979 0.552,1.177 0.313,0.198 10 false *b 1.188,0.969 1.5,1.167 0.313,0.198 10 false *b 6.865,0.563 7.146,0.771 0.281,0.208 10 false *b 5.958,0.552 6.271,0.75 0.313,0.198 10 false *b 5.865,1.531 6.177,1.729 0.313,0.198 10 false *b 6.417,2.271 6.729,2.469 0.313,0.198 10 false *b 0.083,0.063 0.396,0.26 0.313,0.198 10 false *a
*a Backside *b Matchmark



ii.
B149736

Using a gasket scraper, remove any remaining, spacer, moulding, adhesive dam, double-sided tape and adhesive residue from the front side window assembly LH.

NOTICE:
·

Be careful not to damage the front side window glass sub-assembly LH.

·

w/o Ceramic Notch:

Be careful not to erase the matchmarks when cleaning.





b.

Clean the outer circumference of the front side window assembly LH with a non-residue solvent.

NOTICE:
·

Do not touch the front side window assembly LH surface after cleaning it.

·

Even if using a new front side window assembly LH, clean the front side window assembly LH with a non-residue solvent.




Hide 2.INSTALL NO. 1 QUARTER PANEL SPACER

a.

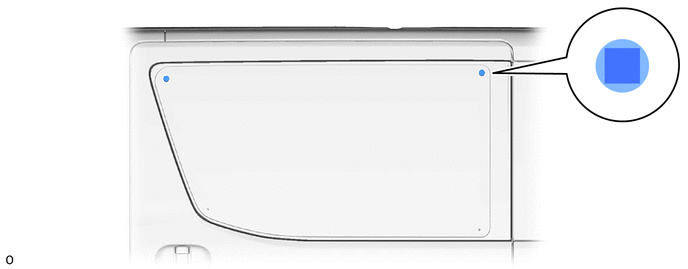

Install 2 new No. 1 quarter panel spacers to the body as shown in the illustration.

B541115


Hide 62785S 3.INSTALL SIDE WINDOW GLASS SPACER

a.

Using a brush or sponge, apply the glass primer to the side window glass spacer installation surface of the front side window assembly LH.

NOTICE:

Do not apply too much primer.



b.

Remove the peeling paper from a new side window glass spacer.

HINT:

After removing the peeling paper, keep the exposed adhesive free from foreign matter.



c.

w/ Ceramic Notch:

i.

Install the 2 side window glass spacers to the front side window glass assembly LH as shown in the illustration.

B541104C01
0.938,1.229 0.667,1.427 false 6.479,1.396 6.26,1.25 false 0.083,0.094 0.396,0.292 0.313,0.198 10 false *a 0.51,1.417 0.823,1.615 0.313,0.198 10 false *b 6.521,1.385 6.833,1.583 0.313,0.198 10 false *b
*a Backside *b Ceramic Notch


NOTICE:

Allow the primer to dry for 3 minutes or more.




d.

w/o Ceramic Notch:

i.

Install the 2 side window glass spacers to the front side window glass assembly LH as shown in the illustration.

B660512C02
0.563,0.865 0.427,1.052 0.427,1.052 0.583,1.219 false 0.979,0.844 1.135,1.052 1.135,1.052 0.979,1.24 false 6.604,0.833 6.76,1.042 6.76,1.042 6.604,1.229 false 6.188,0.865 6.052,1.052 6.052,1.052 6.208,1.219 false 0.083,0.094 0.396,0.292 0.313,0.198 10 false *a 0.271,0.979 0.583,1.177 0.313,0.198 10 false *b 6.802,0.969 7.115,1.167 0.313,0.198 10 false *b 1.188,0.969 1.5,1.167 0.313,0.198 10 false *b 5.896,0.979 6.208,1.177 0.313,0.198 10 false *b
*a Backside *b Matchmark


NOTICE:

Allow the primer to dry for 3 minutes or more.




Hide 62775E 4.INSTALL FRONT SIDE WINDOW CLIP LH

a.

Using a brush or sponge, apply the glass primer to the front side window clip LH installation surface of the front side window assembly LH.

NOTICE:

Do not apply too much primer.



b.

Remove the peeling paper from a new front side window clip LH.

HINT:

After removing the peeling paper, keep the exposed adhesive free from foreign matter.



c.

w/ Ceramic Notch:

i.

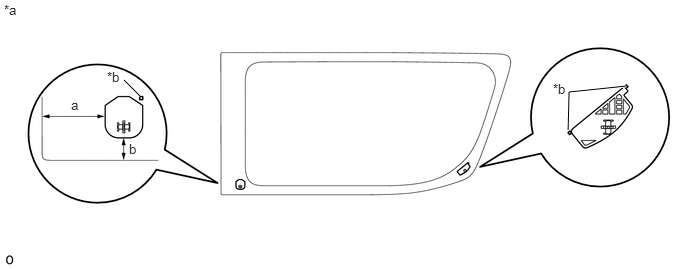

Install the 2 front side window clips LH to the front side window assembly LH as shown in the illustration.

B546029C01
1.292,0.833 1.458,1 true 6.521,0.896 5.927,0.958 5.927,0.958 5.917,1.354 true 0.042,0.021 0.354,0.177 0.313,0.156 10 false *a 1.115,0.719 1.427,0.875 0.313,0.156 10 false *b 5.76,0.844 6.073,1 0.313,0.156 10 false *b 0.74,1.01 0.896,1.208 0.156,0.198 10 false a 1.344,1.469 1.5,1.667 0.156,0.198 10 false b
*a Backside *b Ceramic Notch


NOTICE:

Allow the primer to dry for 3 minutes or more.


Standard Dimension:
Area Dimension
a 85.4 mm (3.36 in.)
b 22.1 mm (0.870 in.)




d.

w/o Ceramic Notch:

i.

Install the 2 front side window clips LH to the front side window assembly LH as shown in the illustration.

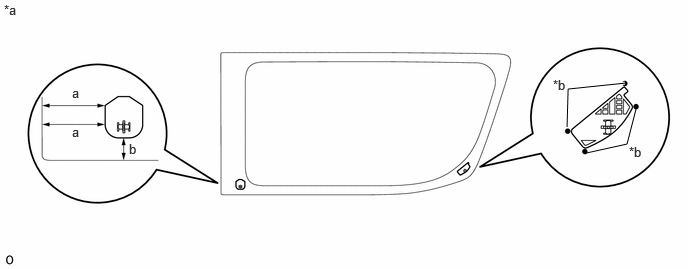

B660513C01
6.51,0.865 5.917,0.927 5.917,0.927 5.906,1.323 true 6.104,1.594 6.531,1.5 6.531,1.5 6.625,1.135 false 0.042,0.021 0.354,0.177 0.313,0.156 10 false *a 5.76,0.802 6.073,0.958 0.313,0.156 10 false *b 0.75,0.885 0.906,1.083 0.156,0.198 10 false a 1.344,1.469 1.5,1.667 0.156,0.198 10 false b 0.75,1.292 0.906,1.49 0.156,0.198 10 false a 6.552,1.5 6.865,1.656 0.313,0.156 10 false *b
*a Backside *b Matchmark


NOTICE:

Allow the primer to dry for 3 minutes or more.


Standard Dimension:
Area Dimension
a 85.4 mm (3.36 in.)
b 22.1 mm (0.870 in.)




Hide 62267D 5.INSTALL NO. 1 FRONT SIDE WINDOW ADHESIVE DAM LH

a.

Using a brush or sponge, apply the glass primer to the No. 1 front side window adhesive dam LH installation surface of the front side window assembly LH.

NOTICE:

Do not apply too much primer.



b.

Remove the peeling paper from a new No. 1 front side window adhesive dam LH.

HINT:

After removing the peeling paper, keep the exposed adhesive free from foreign matter.



c.

Install the No. 1 front side window adhesive dam LH to the front side window assembly LH as shown in the illustration.

B541106C01
1.656,0.854 1.302,0.99 1.302,0.99 0.885,0.844 true 0.042,0.021 0.354,0.177 0.313,0.156 10 false *a 1.229,1.063 1.542,1.219 0.313,0.156 10 false *b 2.75,0.26 2.906,0.458 0.156,0.198 10 false A 2.74,1.115 2.896,1.313 0.156,0.198 10 false A 5.708,0.594 6.333,0.823 0.625,0.229 10 false A-A 6.427,0.99 6.583,1.188 0.156,0.198 10 false a
*a Backside *b Ceramic Notch


Standard Dimension:
Area Dimension
a 3.0 mm (0.118 in.) to 5.0 mm (0.197 in.)



d.

except Slide Glass Type:

i.

Using a brush or sponge, apply the glass primer to the No. 1 front side window adhesive dam LH installation surface of the front side window assembly LH.

NOTICE:

Do not apply too much primer.



ii.

Remove the peeling paper from a new No. 1 front side window adhesive dam LH.

HINT:

After removing the peeling paper, keep the exposed adhesive free from foreign matter.



iii.

Install the No. 1 front side window adhesive dam LH to the front side window assembly LH as shown in the illustration.

B541108C01
1.708,1.958 1.271,1.75 1.271,1.75 0.813,1.958 true 0.083,0.052 0.396,0.208 0.313,0.156 10 false *a 1.188,1.542 1.5,1.698 0.313,0.156 10 false *b 2.74,1.552 2.958,1.792 0.219,0.24 10 false A 6.396,1.521 6.708,1.677 0.313,0.156 10 false a 2.74,2.323 2.958,2.563 0.219,0.24 10 false A 5.688,0.573 6.281,0.813 0.594,0.24 10 false A-A
*a Backside *b Ceramic Notch


Standard Dimension:
Area Dimension
a 3.0 mm (0.118 in.) to 5.0 mm (0.197 in.)




Hide 62267K 6.INSTALL NO. 2 FRONT SIDE WINDOW ADHESIVE DAM LH

a.

Using a brush or sponge, apply the glass primer to the No. 2 front side window adhesive dam LH installation surface of the front side window assembly LH.

NOTICE:

Do not apply too much primer.



b.

Remove the peeling paper from a new No. 2 front side window adhesive dam LH.

HINT:

After removing the peeling paper, keep the exposed adhesive free from foreign matter.



c.

Install the No. 2 front side window adhesive dam LH to the front side window assembly LH as shown in the illustration.

i.

for Standard Roof:

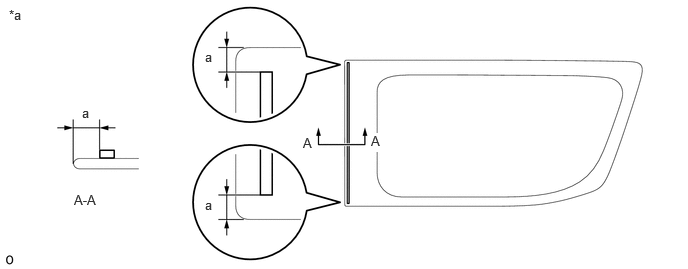

B545895C02
0.094,0.073 0.406,0.271 0.313,0.198 10 false *a 0.854,1.094 1.01,1.292 0.156,0.198 10 false a 2.135,0.51 2.292,0.708 0.156,0.198 10 false a 2.135,2.052 2.292,2.25 0.156,0.198 10 false a 3.156,1.406 3.313,1.604 0.156,0.198 10 false A 0.771,2 1.156,2.219 0.385,0.219 10 true A-A 3.865,1.385 4.021,1.583 0.156,0.198 10 true A
*a Backside - -


Standard Dimension:
Area Dimension
a 10 mm (0.394 in.)



ii.

for High Roof:

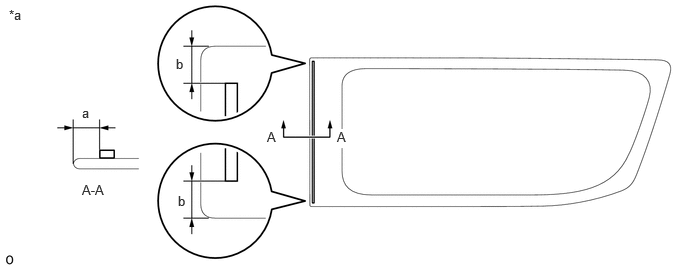

B545896C02
0.094,0.073 0.406,0.271 0.313,0.198 10 false *a 0.854,1.094 1.01,1.292 0.156,0.198 10 false a 1.833,0.583 1.99,0.781 0.156,0.198 10 false b 1.854,2.01 2.01,2.208 0.156,0.198 10 false b 2.781,1.344 2.938,1.542 0.156,0.198 10 false A 3.51,1.344 3.667,1.542 0.156,0.198 10 true A 0.854,1.896 1.49,2.208 0.635,0.313 10 true A-A
*a Backside - -


Standard Dimension:
Area Dimension
a 10 mm (0.394 in.)
b 13.9 mm (0.547 in.)




Hide 62720B 7.INSTALL FRONT SIDE WINDOW ASSEMBLY LH

a.

Clean and shape the contact surface of the vehicle body.

i.
B541109C01
0.76,0.792 1.219,0.479 false 1.26,0.333 1.573,0.49 0.313,0.156 10 false *a 3.083,1.646 3.219,1.844 0.135,0.198 10 false a
*a Vehicle Body
V100155

Adhesive


Using a knife, cut away excess adhesive on the contact surface of the vehicle body as shown in the illustration.

Standard Dimension:
Area Dimension
a 1.0 mm (0.0394 in.) to 3.0 mm (0.118 in.)


NOTICE:

Be careful not to damage the vehicle body.


HINT:

Leave approximately 1.0 mm (0.0394 in.) to 3.0 mm (0.118 in.) of adhesive on the vehicle body.



ii.

Clean the contact surface of the vehicle body with a piece of cloth saturated with non-residue solvent.

HINT:

Even if all of the adhesive has been removed, clean the vehicle body.




b.

Position the front side window assembly LH.

i.

Using suction cups, place the front side window assembly LH in the correct position.


ii.

Check that the entire contact surface of the glass rim is perfectly even.


iii.

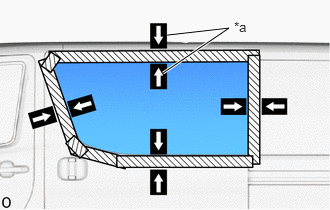

B541113C01
1.74,0.365 2.385,0.292 2.385,0.292 1.698,0.76 true 2.438,0.198 2.75,0.396 0.313,0.198 10 false *a
*a Matchmarks


When using a new front side window assembly LH:

Place matchmarks on the front side window assembly LH and vehicle body at the locations indicated in the illustration.

NOTICE:
·

Check that the side window glass spacer is attached to the No. 1 quarter panel spacer correctly.

·

Check that the front side window clip LH is attached to the slide door panel correctly.



HINT:

When reusing a front side window assembly LH, check the position of the matchmarks and make adjustments.



iv.

Using suction cups, remove the front side window assembly LH.


v.

Using a brush or sponge, apply the body primer to the exposed part of the vehicle body.

NOTICE:
·

Do not apply too much primer.

·

Do not apply primer to the adhesive.

·

When applying the primer, take care of the seams of the panel and spot welds.




vi.

Using a brush or sponge, apply the glass primer as shown in the illustration.

1.

for Standard Roof:

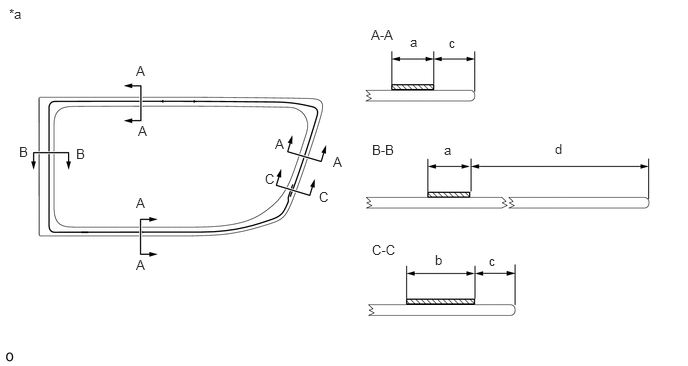

B545889C01
0.094,0.063 0.406,0.26 0.313,0.198 10 false *a 3.865,0.281 4.323,0.479 0.458,0.198 10 false A-A 3.875,1.479 4.333,1.677 0.458,0.198 10 false B-B 3.875,2.521 4.333,2.719 0.458,0.198 10 false C-C 1.417,0.656 1.698,0.854 0.281,0.198 10 false A 1.438,1.281 1.719,1.479 0.281,0.198 10 false A 0.792,1.521 1.073,1.719 0.281,0.198 10 false B 0.198,1.5 0.479,1.698 0.281,0.198 10 false B 1.417,2.677 1.635,2.906 0.219,0.229 10 false A 1.417,2.031 1.635,2.26 0.219,0.229 10 false A 2.865,1.417 3.083,1.646 0.219,0.229 10 false A 4.271,0.354 4.427,0.552 0.156,0.198 10 false a 4.531,2.625 4.688,2.823 0.156,0.198 10 false b 4.677,0.365 4.833,0.563 0.156,0.198 10 false c 5.781,1.469 5.938,1.667 0.156,0.198 10 false d 3.323,1.969 3.542,2.198 0.219,0.229 10 false C 2.76,1.781 2.979,2.01 0.219,0.229 10 false C 5.094,2.635 5.25,2.833 0.156,0.198 10 false c 3.469,1.604 3.688,1.833 0.219,0.229 10 false A 4.625,1.479 4.781,1.677 0.156,0.198 10 false a
*a Backside - -
V100155

Glass Primer - -


NOTICE:

Do not apply too much primer.


Standard Dimension:
Area Dimension
a 9.0 mm (0.354 in.)
b 17 mm (0.669 in.)
c 11.5 mm (0.453 in.)
d 70.9 mm (2.79 in.)


2.

for High Roof:

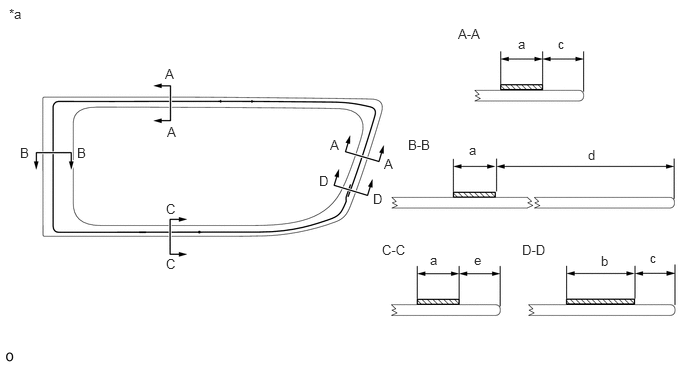

B545897C01
0.094,0.063 0.406,0.26 0.313,0.198 10 false *a 4.771,0.271 5.229,0.469 0.458,0.198 10 false A-A 4.25,1.427 4.708,1.625 0.458,0.198 10 false B-B 3.979,2.521 4.438,2.719 0.458,0.198 10 false C-C 1.719,0.688 2,0.885 0.281,0.198 10 false A 1.74,1.292 2.021,1.49 0.281,0.198 10 false A 0.802,1.51 1.083,1.708 0.281,0.198 10 false B 0.208,1.51 0.49,1.708 0.281,0.198 10 false B 1.729,2.667 1.948,2.896 0.219,0.229 10 false C 1.729,2.094 1.948,2.323 0.219,0.229 10 false C 3.438,1.427 3.656,1.656 0.219,0.229 10 false A 5.396,0.375 5.552,0.573 0.156,0.198 10 false a 6.125,1.531 6.281,1.729 0.156,0.198 10 false d 5.813,0.375 5.969,0.573 0.156,0.198 10 false c 3.885,1.99 4.104,2.219 0.219,0.229 10 false D 3.323,1.802 3.542,2.031 0.219,0.229 10 false D 4.885,1.479 5.042,1.677 0.156,0.198 10 false a 4,1.625 4.219,1.854 0.219,0.229 10 false A 4.479,2.625 4.635,2.823 0.156,0.198 10 false a 4.938,2.625 5.094,2.823 0.156,0.198 10 false e 6.771,2.604 6.927,2.802 0.156,0.198 10 false c 6.26,2.635 6.417,2.833 0.156,0.198 10 false b 5.438,2.521 5.896,2.719 0.458,0.198 10 false D-D
*a Backside - -
V100155

Glass Primer - -


NOTICE:

Do not apply too much primer.


Standard Dimension:
Area Dimension
a 9.0 mm (0.354 in.)
b 17 mm (0.669 in.)
c 11.5 mm (0.453 in.)
d 68.6 mm (2.70 in.)
e 13 mm (0.512 in.)




vii.
B214800C84
1.354,0.583 1.177,0.479 false 2.917,0.375 2.521,0.542 true 0.583,0.667 0.74,0.854 0.156,0.188 10 false a 1.271,1.448 1.417,1.635 0.146,0.188 10 false a 1.125,0.865 1.25,1.063 0.125,0.198 10 false b 0.771,1.031 0.917,1.177 0.146,0.146 10 false b 1.406,0.531 1.604,0.698 0.198,0.167 10 false *b 2.979,0.302 3.177,0.469 0.198,0.167 10 false *a
*a Sealer Gun
*b Nozzle
V100155

Adhesive


Cut off the tip of the cartridge nozzle as shown in the illustration.

Standard Dimension:
Area Dimension
a 12 mm (0.472 in.) to 15 mm (0.591 in.)
b 8.0 mm (0.315 in.) to 11 mm (0.433 in.)



viii.

Load the sealer gun with the cartridge.


ix.

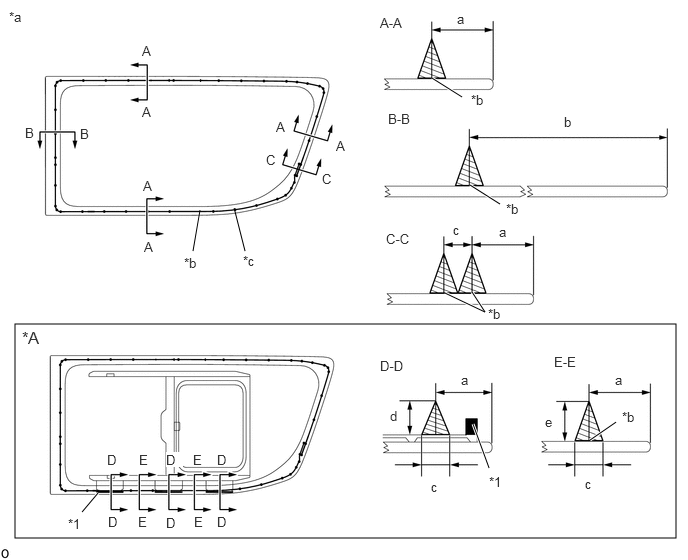

Apply adhesive to the glass as shown in the illustration.

1.

for Standard Roof:

B545992C02
0.156,3.375 7.042,5.604 6.885,2.229 2.083,2.188 2.01,2.615 false 2.438,2.167 2.552,2.615 false 4.5,0.813 4.813,1.01 true 4.917,3.042 5.052,3.25 5.052,3.25 4.635,3.052 true 1.021,5.135 0.854,5.333 true 4.927,4.417 5.094,4.875 true 4.896,1.927 5.208,2.125 true 6.146,4.583 6.417,4.396 true 0.229,3.417 0.604,3.656 0.375,0.24 12 false *A 1.479,0.448 1.635,0.646 0.156,0.198 10 false A 1.479,1.083 1.635,1.281 0.156,0.198 10 false A 0.833,1.313 0.99,1.51 0.156,0.198 10 false B 2.771,1.583 2.927,1.781 0.156,0.198 10 false C 0.26,1.302 0.417,1.5 0.156,0.198 10 false B 3.354,1.781 3.51,1.979 0.156,0.198 10 false C 1.49,1.854 1.646,2.052 0.156,0.198 10 false A 1.5,2.49 1.656,2.688 0.156,0.198 10 false A 3.5,1.438 3.656,1.635 0.156,0.198 10 false A 2.875,1.24 3.031,1.438 0.156,0.198 10 false A 3.958,0.156 4.417,0.354 0.458,0.198 10 false A-A 4.042,1.156 4.5,1.354 0.458,0.198 10 false B-B 4.021,2.406 4.479,2.604 0.458,0.198 10 false C-C 3.958,3.729 4.417,3.927 0.458,0.198 10 false D-D 1.115,4.708 1.271,4.906 0.156,0.198 10 false D 1.125,5.354 1.281,5.552 0.156,0.198 10 false D 1.729,5.365 1.885,5.563 0.156,0.198 10 false D 1.729,4.708 1.906,4.865 0.177,0.156 10 true D 2.26,4.708 2.417,4.906 0.156,0.198 10 false D 2.26,5.354 2.417,5.552 0.156,0.198 10 false D 5.771,3.688 6.229,3.885 0.458,0.198 10 false E-E 2.01,4.708 2.167,4.906 0.156,0.198 10 false E 2.021,5.354 2.177,5.552 0.156,0.198 10 false E 1.438,5.354 1.646,5.573 0.208,0.219 10 false E 4.76,0.115 4.917,0.313 0.156,0.198 10 false a 5.875,1.188 6.031,1.385 0.156,0.198 10 false b 4.719,2.313 4.875,2.51 0.156,0.198 10 false c 5.198,2.333 5.354,2.531 0.156,0.198 10 false a 4.49,4.99 4.646,5.188 0.156,0.198 10 false c 5.677,4.313 5.833,4.51 0.156,0.198 10 false e 4.063,4.25 4.219,4.448 0.156,0.198 10 false d 2.531,2.635 2.688,2.833 0.156,0.198 10 false *c 1.917,2.656 2.073,2.854 0.156,0.198 10 false *b 4.906,0.958 5.063,1.156 0.156,0.198 10 false *b 0.094,0.094 0.25,0.292 0.156,0.198 10 false *a 0.708,5.375 1.021,5.573 0.313,0.198 10 false *1 5.094,4.938 5.406,5.135 0.313,0.198 10 false *1 1.448,4.708 1.604,4.906 0.156,0.198 10 false E 5.271,2.094 5.427,2.292 0.156,0.198 10 false *b 5.083,3.188 5.24,3.385 0.156,0.198 10 false *b 6.094,4.958 6.25,5.156 0.156,0.198 10 false c 6.406,3.875 6.563,4.073 0.156,0.198 10 false a 6.479,4.26 6.635,4.458 0.156,0.198 10 false *b 4.802,3.875 4.958,4.073 0.156,0.198 10 false a
*A for Slide Glass Type - -
*1 EPT Sealer - -
*a Backside *b Adhesive Positioning Center
*c Ceramic Notch - -
V100155

Adhesive - -


NOTICE:
·

Allow the primer to dry for 3 minutes or more.

·

Apply adhesive at a constant height, even above the EPT sealer area (for Slide Glass Type).

·

Do not apply sealant beyond the EPT sealer area (for Slide Glass Type).



Adhesive:

Toyota Genuine Windshield Glass Adhesive (High modulus type) or equivalent


Standard Dimension:
Area Dimension
a 16 mm (0.630 in.)
b 75.4 mm (2.97 in.)
c 8.0 mm (0.315 in.)
d 10.3 mm (0.406 in.)
e 12 mm (0.472 in.)


2.

for High Roof:

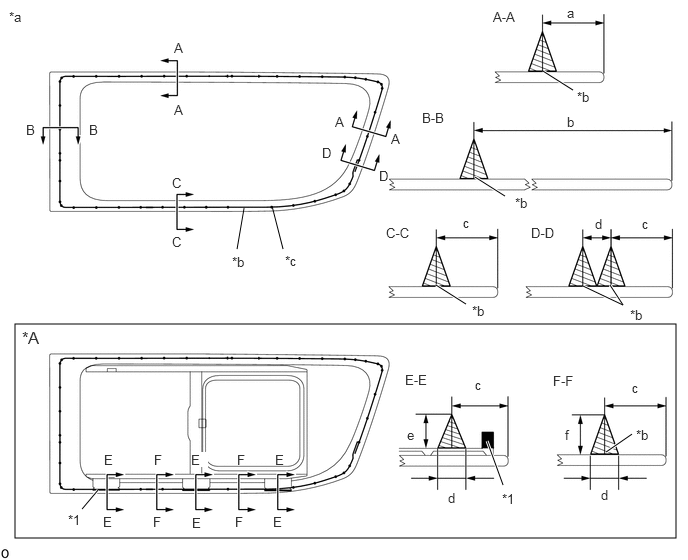

B545993C02
0.156,3.375 7.042,5.604 6.885,2.229 2.542,2.167 2.469,2.594 false 2.833,2.146 2.948,2.594 false 5.656,0.74 5.969,0.938 true 6.354,2.969 6.49,3.177 6.49,3.177 6.073,2.979 true 1.021,5.104 0.854,5.302 true 5.073,4.594 5.24,5.052 true 4.948,1.844 5.26,2.042 true 6.313,4.708 6.583,4.521 true 4.542,2.969 4.854,3.167 true 0.229,3.417 0.604,3.656 0.375,0.24 12 false *A 1.813,0.417 1.969,0.615 0.156,0.198 10 false A 1.813,1.063 1.969,1.26 0.156,0.198 10 false A 0.927,1.271 1.083,1.469 0.156,0.198 10 false B 3.354,1.51 3.51,1.708 0.156,0.198 10 false D 0.271,1.271 0.427,1.469 0.156,0.198 10 false B 3.948,1.75 4.104,1.948 0.156,0.198 10 false D 1.792,1.823 1.948,2.021 0.156,0.198 10 false C 1.792,2.438 1.948,2.635 0.156,0.198 10 false C 4.073,1.365 4.229,1.563 0.156,0.198 10 false A 3.49,1.188 3.646,1.385 0.156,0.198 10 false A 5.135,0.094 5.594,0.292 0.458,0.198 10 false A-A 4.396,1.146 4.854,1.344 0.458,0.198 10 false B-B 4.021,2.344 4.479,2.542 0.458,0.198 10 false C-C 5.531,2.344 5.99,2.542 0.458,0.198 10 false D-D 1.083,4.708 1.24,4.906 0.156,0.198 10 false E 1.073,5.354 1.229,5.552 0.156,0.198 10 false E 2,5.365 2.156,5.563 0.156,0.198 10 false E 1.99,4.708 2.167,4.865 0.177,0.156 10 true E 2.865,4.708 3.021,4.906 0.156,0.198 10 false E 2.844,5.354 3,5.552 0.156,0.198 10 false E 4.219,3.875 4.677,4.073 0.458,0.198 10 false E-E 2.469,4.708 2.625,4.906 0.156,0.198 10 false F 2.448,5.354 2.604,5.552 0.156,0.198 10 false F 1.594,5.354 1.802,5.573 0.208,0.219 10 false F 5.906,0.052 6.063,0.25 0.156,0.198 10 false a 5.906,1.188 6.063,1.385 0.156,0.198 10 false b 4.823,2.24 4.979,2.438 0.156,0.198 10 false c 4.667,5.104 4.823,5.302 0.156,0.198 10 false d 6.198,2.25 6.354,2.448 0.156,0.198 10 false d 4.24,4.448 4.396,4.646 0.156,0.198 10 false e 2.969,2.635 3.125,2.833 0.156,0.198 10 false *c 2.417,2.646 2.573,2.844 0.156,0.198 10 false *b 6.01,0.927 6.167,1.125 0.156,0.198 10 false *b 4.917,3.156 5.073,3.354 0.156,0.198 10 false *b 0.708,5.333 1.021,5.531 0.313,0.198 10 false *1 5.229,5.115 5.542,5.313 0.313,0.198 10 false *1 1.604,4.708 1.76,4.906 0.156,0.198 10 false F 5.365,2.031 5.521,2.229 0.156,0.198 10 false *b 6.563,3.198 6.719,3.396 0.156,0.198 10 false *b 5.885,4.448 6.042,4.646 0.156,0.198 10 false f 6.583,3.958 6.74,4.156 0.156,0.198 10 false c 6.625,4.448 6.781,4.646 0.156,0.198 10 false *b 4.948,3.927 5.104,4.125 0.156,0.198 10 false c 6.688,2.25 6.844,2.448 0.156,0.198 10 false c 6.26,5.073 6.417,5.271 0.156,0.198 10 false d 5.76,3.885 6.219,4.083 0.458,0.198 10 false F-F 0.094,0.094 0.25,0.292 0.156,0.198 10 false *a
*A for Slide Glass Type - -
*1 EPT Sealer - -
*a Backside *b Adhesive Positioning Center
*c Ceramic Notch - -
V100155

Adhesive - -


NOTICE:
·

Allow the primer to dry for 3 minutes or more.

·

Apply adhesive at a constant height, even above the EPT sealer area (for Slide Glass Type).

·

Do not apply sealant beyond the EPT sealer area (for Slide Glass Type).



Adhesive:

Toyota Genuine Windshield Glass Adhesive (High modulus type) or equivalent


Standard Dimension:
Area Dimension
a 16 mm (0.630 in.)
b 73.1 mm (2.88 in.)
c 17.5 mm (0.689 in.)
d 8.0 mm (0.315 in.)
e 10.3 mm (0.406 in.)
f 12 mm (0.472 in.)





c.
B541113C01
1.74,0.365 2.385,0.292 2.385,0.292 1.698,0.76 true 2.438,0.198 2.75,0.396 0.313,0.198 10 false *a
*a Matchmarks


Install the front side window assembly LH to the vehicle body.

i.

Using suction cups, position the front side window assembly LH so that the matchmarks are aligned.

NOTICE:
·

Check that the side window glass spacer is attached to the No. 1 quarter panel spacer correctly.

·

Check that the front side window clip LH is attached to the slide door panel correctly.




ii.

Press it in gently along the rim.

HINT:

Press the glass with force of 98 N (10 kgf, 22.0 lbf) or more.



iii.

Using a gasket scraper, remove any excess or protruding adhesive.

NOTICE:

Apply adhesive up to the edge of the front side window assembly LH.



iv.

Hold the front side window assembly LH using protective tape until the applied adhesive becomes hard.

NOTICE:

Do not drive the vehicle for the time described in the table below.


Minimum Time:
Temperature Minimum Time Prior to Driving Vehicle
35°C (95°F) 1 hour and 30 minutes
20°C (68°F) 5 hours
5°C (41°F) 24 hours




Hide 67488A 10.INSTALL REAR DOOR REAR GUIDE BRACKET GARNISH LH (for Wagon)

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY


Hide 67693B 12.INSTALL SLIDE DOOR UPPER TRIM COVER LH (except Wagon, for Full-trim, for Standard Roof)

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>REASSEMBLY


Hide 67693B 13.INSTALL SLIDE DOOR UPPER TRIM COVER LH (for Wagon)

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY


Hide 15. CHECK FOR LEAK AND REPAIR

a.

Conduct a leak test after the adhesive has completely hardened.


b.

Seal any leaks with auto glass sealer.


c.

Remove the protective tape and matchmark.
