RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0384721 FRONT SIDE WINDOW GLASS(for Rear Door) A

WINDOW / GLASS FRONT SIDE WINDOW GLASS(for Rear Door) REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 65988A 1.REMOVE SUNSHADE HOOK (for Wagon, w/ Sunshade)

HINT:: Use the same procedure as for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0055,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0055,

Hide Display 67693B 2.REMOVE SLIDE DOOR UPPER TRIM COVER LH (for Wagon)

HINT:: Use the same procedure as for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0056,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0056,

Hide Display 67693B 3.REMOVE SLIDE DOOR UPPER TRIM COVER LH (except Wagon, for Full-trim, for High Roof)

HINT:: Use the same procedure as for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0387482,RM100000001JGPA_02_0008,202310,999999,_59,_078503,_0387482,RM100000002EPZG_02_0008,

Hide Display 67668A 4.REMOVE SLIDE DOOR WINDOW GARNISH LH

HINT:: Use the same procedure as for the RH side.

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0027,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0027,

except Wagon, for Full-trim, for Standard Roof

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0387482,RM100000001JGPA_02_0027,202310,999999,_59,_078503,_0387482,RM100000002EPZG_02_0027,

except Wagon, for Full-trim, for High Roof:

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0387482,RM100000001JGPA_02_0027,202310,999999,_59,_078503,_0387482,RM100000002EPZG_02_0027,

Hide Display 67488A 5.REMOVE REAR DOOR REAR GUIDE BRACKET GARNISH LH (for Wagon)

HINT:: Use the same procedure as for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0006,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0006,

Hide Display 81380D 6.REMOVE STEP LIGHT ASSEMBLY (for Wagon)

Click hereVehicle Interior>LIGHTING (INT)>STEP LIGHT ASSEMBLY>REMOVAL201906,999999,_58,_078381,_0399284,RM100000001IZVZ_02_0001,

Hide Display 67690C 7.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY LH

HINT:: Use the same procedure as for the RH side.

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0010,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0010,

except Wagon, for Full-trim, for Standard Roof

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0387482,RM100000001JGPA_02_0033,202310,999999,_59,_078503,_0387482,RM100000002EPZG_02_0033,

except Wagon, for Full-trim:

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0387482,RM100000001JGPA_02_0033,202310,999999,_59,_078503,_0387482,RM100000002EPZG_02_0033,

Hide Display 62720B 8.REMOVE FRONT SIDE WINDOW ASSEMBLY LH

0,0 0,0 false

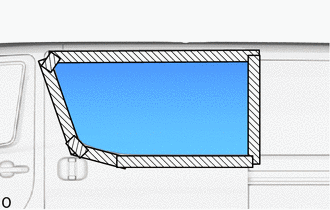

Protective Tape

Apply protective tape to the outer surface of the door panel to prevent scratches.

NOTICE:: When separating the front side window assembly LH from the door panel, be careful not to damage the vehicle paint or interior/exterior ornaments.

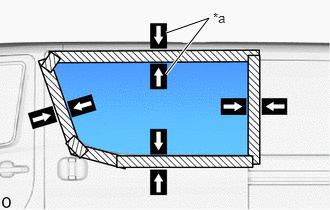

1.729,0.344 2.177,0.188 2.177,0.188 1.729,0.771 true 2.219,0.104 2.531,0.302 0.313,0.198 10 false *a

Matchmark

When reusing the front side window assembly LH:

Place matchmarks over the glass and door panel at the locations indicated in the illustration.

ii.

Install the suction cups to the front side window assembly LH.

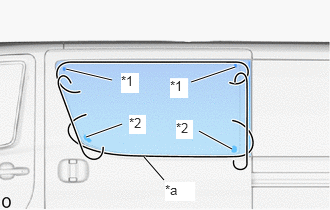

1.708,1.875 1.5,1.635 true 0.688,0.719 1.167,0.833 true 2.448,0.698 1.99,0.854 true 2.417,1.552 2.073,1.365 true 1.271,1.292 0.896,1.427 true 1.771,0.813 1.958,1.021 0.188,0.208 10 true *1 1.833,1.25 2.01,1.448 0.177,0.198 10 true *2 1.719,1.896 2.031,2.094 0.313,0.198 10 true *a 1.344,1.198 1.521,1.396 0.177,0.198 10 true *2 1.26,0.76 1.448,0.969 0.188,0.208 10 true *1

*1	Quarter Window Glass Spacer
*2	Front Side Window Clip LH
*a	Piano Wire

From the interior, insert a piano wire between the door panel and glass as shown in the illustration.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

NOTICE:: When separating the glass from the door panel, be careful not to damage the vehicle paint or interior/exterior ornaments.

Cut through the adhesive by pulling the piano wire around the front side window assembly LH.

Using suction cups, disconnect the quarter window glass spacer and front side window clip LH and remove the front side window assembly LH.

NOTICE:: Do not drop the front side window assembly LH.

Hide Display 9.REMOVE NO. 1 QUARTER PANEL SPACER

Using a moulding remover, remove the 2 No. 1 quarter panel spacers from the door panel.
