INTRODUCTION  IDENTIFICATION INFORMATION  VEHICLE IDENTIFICATION AND SERIAL NUMBERS

2.031,1.24 2.573,0.406 true 2.583,0.229 2.896,0.427 0.313,0.198 10 false *a

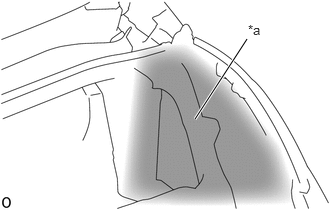

*a	Name Plate

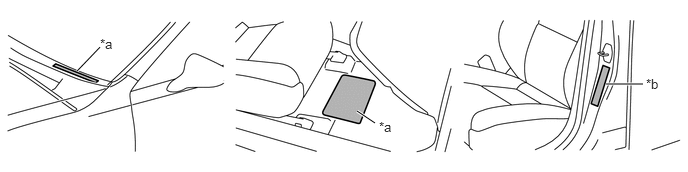

The vehicle identification number is stamped on the vehicle body and on the certification label, name label or name plate as shown in the illustration.

6.313,0.875 6.698,0.875 true 3.719,1.156 3.906,1.281 true 0.802,0.74 1.042,0.49 true 6.729,0.792 7.042,0.948 0.313,0.156 10 false *b 1.042,0.375 1.354,0.531 0.313,0.156 10 false *a 3.948,1.24 4.26,1.396 0.313,0.156 10 false *a

*a

Vehicle Identification Number

*b

Certification Label or Name Label

0.448,1.542 0.896,1.479 true 0.094,0.073 0.406,0.229 0.313,0.156 12 false *A 0.281,1.469 0.594,1.625 0.313,0.156 10 false *a

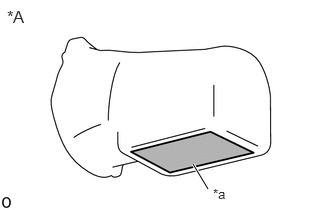

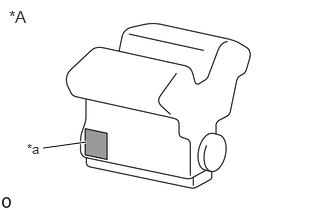

*A	7GR-FKS
*a	Engine Serial Number

1.698,1.229 0.677,1.01 true 0.063,0.125 0.375,0.344 0.313,0.219 12 false *A 0.51,0.927 0.823,1.083 0.313,0.156 10 false *a

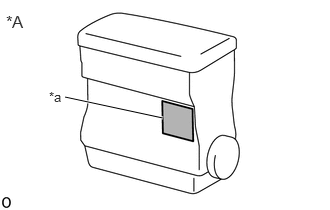

*A	1GD-FTV
*a	Engine Serial Number

The engine serial number is stamped on the area shown in the illustration.

1.792,1.281 2.313,0.302 true 0.052,0.063 0.354,0.26 0.302,0.198 12 false *A 2.365,0.24 2.677,0.396 0.313,0.156 10 false *a

*A	AC60E
*a	Transmission/Transaxle Serial Number

2.01,1.708 2.167,1.969 true 0.073,0.073 0.385,0.26 0.313,0.188 12 false *A 2.219,1.938 2.531,2.094 0.313,0.156 10 false *a

*A	RC60J
*a	Transmission/Transaxle Serial Number

The transmission/transaxle serial number is stamped on or embossed onto the area shown in the illustration.
