RM35X0E _V1 General _078672 MAINTENANCE _0384282 FRONT TURN SIGNAL LIGHT BULB A

MAINTENANCE  FRONT TURN SIGNAL LIGHT BULB  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81510D 1.INSTALL FRONT TURN SIGNAL LIGHT BULB

a.

for Halogen Headlight:

i.

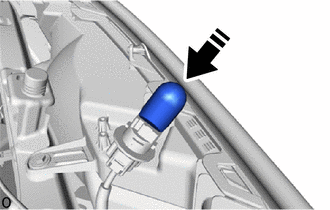

E413307C01
0,0 0,0 false
V113147

Install in this Direction


Install the front turn signal light bulb to the bulb socket.


ii.

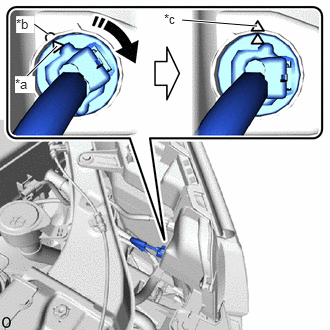

E413310C01
0.281,0.792 0.594,0.479 true 1.896,0.208 2.677,0.271 true 0.5,0.354 0.354,0.25 true 0.156,0.792 0.365,0.969 0.208,0.177 10 true *a 1.708,0.115 1.896,0.292 0.188,0.177 10 true *c 0.167,0.167 0.354,0.344 0.188,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.



b.

for LED Headlight:

i.

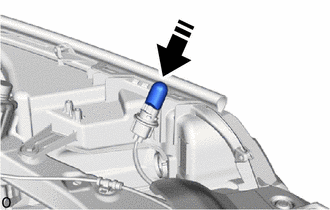

B544579C01
0,0 0,0 false
V113147

Install in this Direction


Install the front turn signal light bulb to the bulb socket.


ii.

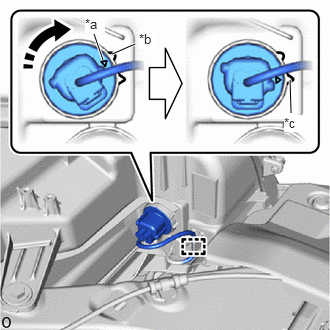

B544577C01
1.073,0.625 0.979,0.354 true 3.031,1.177 3.021,0.833 true 1.406,0.458 1.167,0.563 true 0.885,0.167 1.094,0.344 0.208,0.177 10 true *a 2.958,1.198 3.146,1.375 0.188,0.177 10 true *c 1.448,0.323 1.635,0.5 0.188,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.


iii.

Attach the clamp.
