RM35X0E _V1 General _078672 MAINTENANCE _0384282 FRONT TURN SIGNAL LIGHT BULB A

MAINTENANCE FRONT TURN SIGNAL LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 53106B 1.REMOVE RADIATOR COVER SUB-ASSEMBLY (for RH Side)

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>REMOVAL201906,999999,_51,_079310,_0386774,RM100000001IZPV_01_0140,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>RADIATOR>REMOVAL201906,202005,_51,_079309,_0386771,RM100000001IZPY_01_0037,202005,999999,_51,_079309,_0386771,RM100000001LT5Z_01_0037,

Hide Display 81510D 2.REMOVE FRONT TURN SIGNAL LIGHT BULB

for Halogen Headlilght:

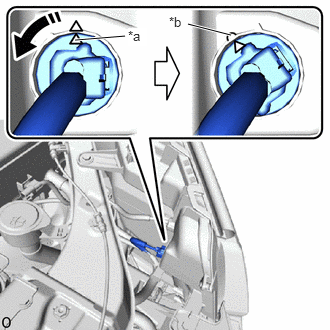

1.302,0.375 0.781,0.417 true 1.958,0.25 2.406,0.365 true 1.333,0.292 1.531,0.479 0.198,0.188 10 true *a 1.76,0.146 1.948,0.333 0.188,0.188 10 false *b

*a	Matchmark
*b	Unlock Position Mark
	Turn in this Direction

Insert a hand from the back side of the headlight, and then turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.

ii.

0,0 0,0 false

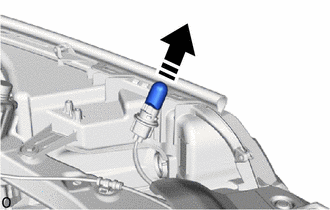

Remove in this Direction

Remove the front turn signal light bulb from the bulb socket.

for LED Headlight:

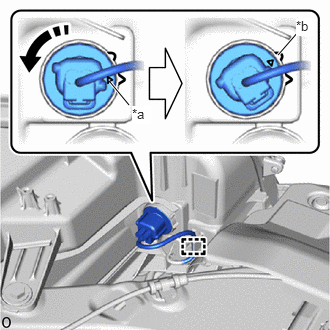

1.146,0.854 1.344,1.094 true 2.896,0.573 3.104,0.333 true 1.375,1.104 1.573,1.292 0.198,0.188 10 true *a 3.083,0.188 3.271,0.375 0.188,0.188 10 true *b

*a	Matchmark
*b	Unlock Position Mark
	Turn in this Direction

Detach the clamp.

ii.

Insert a hand from the back side of the headlight, and then turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.

iii.

0,0 0,0 false

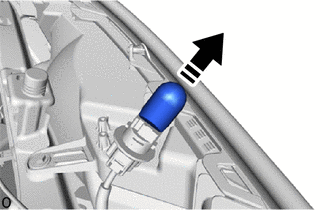

Remove in this Direction

Remove the front turn signal light bulb from the bulb socket.
